About:

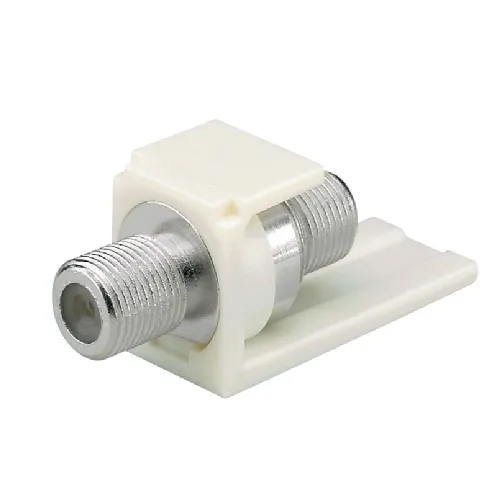

The 0.71x0.61 Mini-Com Self Terminating F-Type Module 75ohm CMFSRIGY is a compact, self-terminating coaxial connector, specifically designed for 75-ohm systems. Its compact size and self-terminating feature make it a versatile option for various RF and coaxial cable applications, ensuring optimal performance and reduced signal leakage.
Also Known As:
• CMFSRIGY connector
• 75-ohm coaxial termination module
• Compact self-terminating F-Type connector
Common Applications:
• Security and surveillance systems utilizing coaxial cables
• Broadband and cable internet systems, for reliable connections
• Cable and satellite television installations, ensuring signal integrity
• RF communication systems requiring minimal signal leakage
Standards:
• Specific telecommunications or RF communication standards applicable to F-Type connectors
• RoHS compliance for the use of safe materials
• ISO standards for quality and safety
Construction:
• Incorporates a self-terminating mechanism to minimize signal leakage and maintain system performance
• Constructed from high-quality, corrosion-resistant materials for durability
• Compact dimensions of 0.71x0.61 inches, allowing for installation in space-constrained environments
Features:
• Engineered for optimal performance in RF and coaxial cable systems
• Self-terminating feature activates automatically when not connected, reducing signal leakage
• Designed for 75-ohm systems, ensuring compatibility with a wide range of applications
• Compact design facilitates easy installation and flexibility in various application settings
Specification:
| Note | CMFSRIGY replaces CMFSRIG |
| Sub Brand | Pan-Net |
| Material | ABS |
| Product Type | F-Type Module |
| Module Type | Mini-Com |
| Color | International Gray |
| Number of Module Spaces | 1 |
| Overall Depth (In.) | 1.79 |
| Overall Height (In.) | 0.72 |
| Overall Width (In.) | 0.61 |
| RG Designation | RG-6 and RG-59 |
| Termination Style | Pass-Through |
| Part No: | CMFSRIGY |
