About:

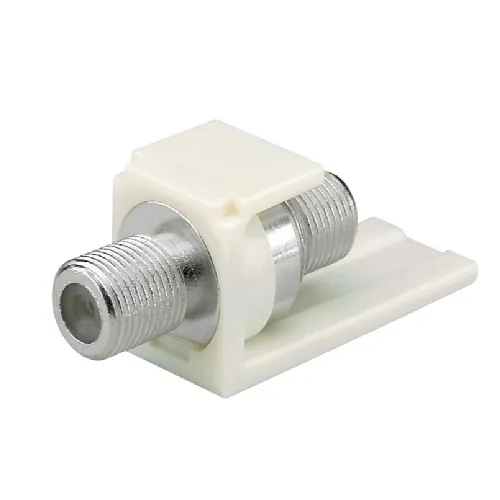

The 0.71x0.61 Mini-Com Self Terminating F-Type Module 75ohm CMFSRWHY is a compact, self-terminating coaxial connector, specifically designed for 75-ohm systems. Its compact size and self-terminating feature make it a versatile option for various RF and coaxial cable applications, ensuring optimal performance and reduced signal leakage.

Also Known As:

• 75-ohm coaxial termination module
• Compact self-terminating F-Type connector
• CMFSRWHY connector

Common Applications:

• Security and surveillance systems utilizing coaxial cables

• Broadband and cable internet systems, for reliable connections

• Cable and satellite television installations, ensuring signal integrity

• RF communication systems requiring minimal signal leakage

Standards:

• ISO standards for quality and safety

• RoHS compliance for the use of safe materials

• Specific telecommunications or RF communication standards applicable to F-Type connectors

Construction:

• Compact dimensions of 0.71x0.61 inches, allowing for installation in space-constrained environments

• Constructed from high-quality, corrosion-resistant materials for durability

• Incorporates a self-terminating mechanism to minimize signal leakage and maintain system performance

Features:

• Designed for 75-ohm systems, ensuring compatibility with a wide range of applications

• Self-terminating feature activates automatically when not connected, reducing signal leakage

• Compact design facilitates easy installation and flexibility in various application settings

• Engineered for optimal performance in RF and coaxial cable systems

Specification:
