Product Details
＋
DL1200ET/26D

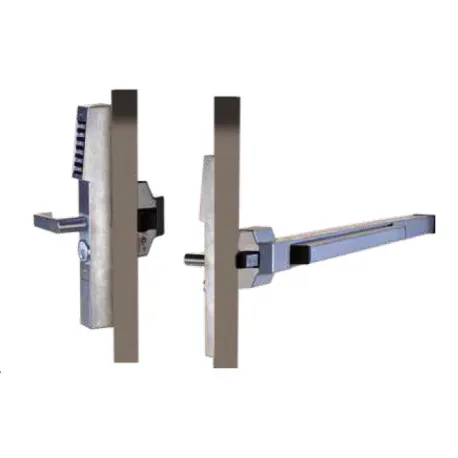

DETAILS: ALARM LOCK DL1200ET/DL1300ET TRILOGY NARROW STILE EXIT TRIM,FINISH-SATIN CHROME
Features
- DL1200ET Trilogy T2-platform: Adds vandal-resistant keyless access to panic exit doors, Protects storefronts and managed properties 24/7, 100 users supported (3-5 digit codes), Designed with all-metal, vandal-resistant 12-button keypads, Supports 3-6 digit PIN codes and multilevel user hierarchy, Easily installs on most aluminum glass doors, Works with Marks USA M8800, Jackson, Dor-O-Matic, Von Duprin (Von 33 LH (RHR) only), Dorma, Arrow, DCI & Corbin panic devices (Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly). Must order seperate tailpiece for specific ET being installed.
- DL1300ET: 2000 Users (PIN code or prox ID on PDL model). NOTE: Must use DL1225/DL1250 with Dor-O-Matic, 2090, Jackson 1095 & Dorma 5300 as it requires more than 85 degrees rotation. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly). Must order seperate tailpiece for specific ET being installed.
Specifications
- No. Of User Code
- 100 And 2000
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
AVAILABLE MODEL NUMBERS AND COMBINATIONS
| Model/SKU | Attributes |
|---|---|
| DL1300ET/26DTP-1693 | 2000, Used with Corbin ED8200 |
| DL1300ET/26DTP-1694 | 2000, Used with Von Duprin 33 LH (RHR) |
| DL1200ET/26D | 100, Not Included |
| DL1300ET/26DTP-1698 | 2000, Used with Jackson 1095 |
| DL1200ET/26DTP-1691 | 100, Used with Arrow S1200/1250, DCI 1200/1300, Von Duprin 22 & Dorma 5300 |
| DL1200ET/26DTP-1692 | 100, Used with Dor-o-Matic 2090 |
| DL1200ET/26DTP-1693 | 100, Used with Corbin ED8200 |
| DL1200ET/26DTP-1694 | 100, Used with Von Duprin 33 LH (RHR) |
| DL1200ET/26DTP-1698 | 100, Used with Jackson 1095 |
| DL1300ET/26D | 2000, Not Included |
| DL1300ET/26DTP-1691 | 2000, Used with Arrow S1200/1250, DCI 1200/1300, Von Duprin 22 & Dorma 5300 |
| DL1300ET/26DTP-1692 | 2000, Used with Dor-o-Matic 2090 |
