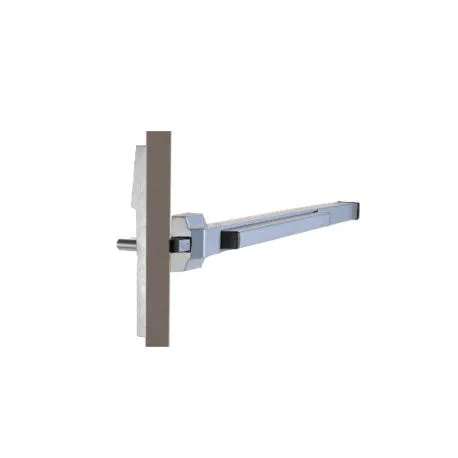

DETAILS: ALARM LOCK PDL1300ET NARROW STILE EXIT DEVICE TRIM LOCK, 2000 USER CODE

Features

Adds vandal-resistant keyless access to panic exit doors
Protects storefronts and managed properties 24/7
100 users supported (3-5 digit codes)
Designed with all-metal, vandal-resistant 12-button keypads
Supports 3-6 digit PIN codes and multilevel user hierarchy
Easily installs on most aluminum glass doors
Works with Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, DCI & Corbin panic devices. NOTE: Must use DL1225/DL1250 with Dor-O-Matic, 2090, Jackson 1095 & Dorma 5300 as it requires more than 85 degrees rotation. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly - See price book)
Must order seperate tailpiece for specific ET being installed.

Door Thickness: Supports stile 1 314" only
Backset: Supports 3 1/32", 1 1/8", and 1 1/2"
Handing: Non-handed
Power: Uses 2 DL123A lithium batteries
Keypad: All metal. 12 button
Cylinder: Supplied with 6 pin standard mortise cylinder in SC1 keyway 1 3/8" or 1 1(2" cylinders supported
Cams: Cam supplied works with generic Alarm Lock cylinder. Other standard cams available for Corbin-Russwin, Marks, Arrow, Sargent and Schlage. IC type cams for Best, Corbin-Russwin, Medeco, Schlage and Yale are also available.
