Description
Specification
- Faceplate: Wrought brass, available in standard finishes.
- Deadbolt: The 8602 and 8632 locks are equipped with a 1” (25 mm) throw deadbolt with steel inserts that engage the strike. Furnished in US4 and 26D finishes, depending on faceplate finish.
- Pull: All locks are equipped with a 1.25” (32 mm) throw pull. The pull is activated by a push button on the lock front. Furnished in US4 and 26D finishes to match the trim.
- Turn hub: The 8602 and 8632 locks include a turn hub with a .19” (5 mm) hole broached on the diamond.
- Spacing: The center-to-center measurement of the turn hub to the cylinder is 1.187” (30 mm).
- Cylinder: Emhart mortise type with an 03 keyway and two silver nickel keys. The cylinder is NOT supplied with the lock and should be ordered separately.
- Keying: All levels of keying, including construction keying, are available.
- Strike: Wrought brass finished to match. Included with the 8602 and 8632 locks only. The 8603 lock has a spring-loaded strike combined with a pull (for double door applications).
- Template: Provided along with installation instructions with all locks. Face cutouts are subject to variation.
*Always review trim requirements before door preparation.

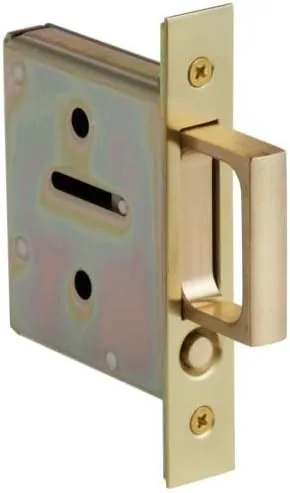

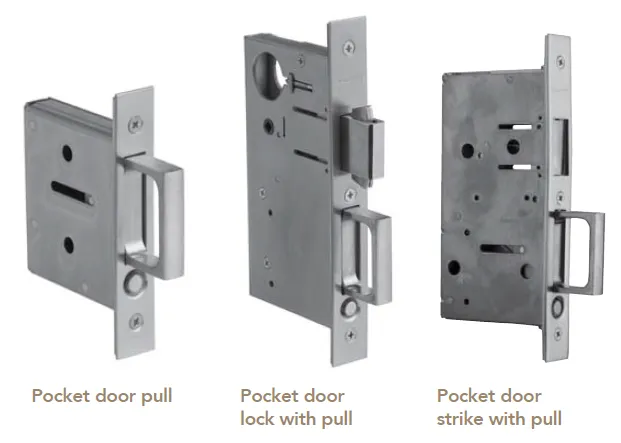

| 8601.xxx | Pocket Door Pull For Passage & Dummy Functions (included on PASS sets) |

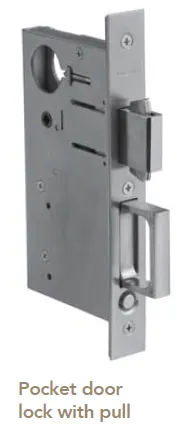

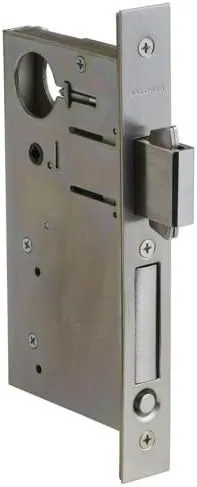

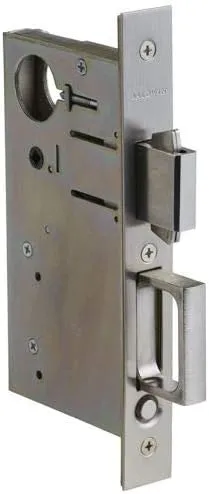

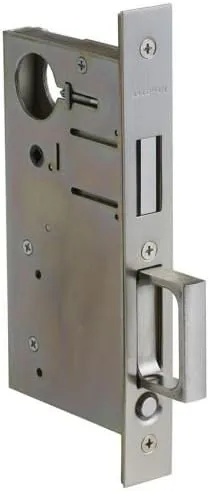

| 8602.xxx | Pocket Door Lock with Pull For Privacy and Entry Functions (2.75” backset) |

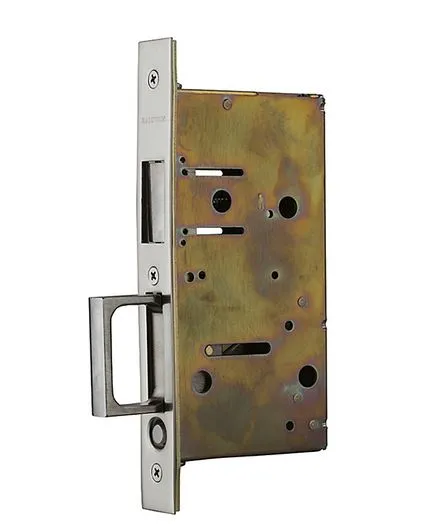

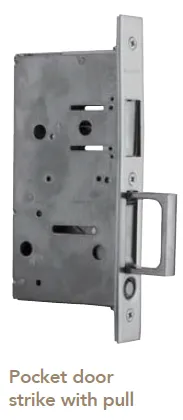

| 8603.xxx | Pocket Door Strike with Pull (for Dummy Side of Double Door; included in dummy for double door application (FD) functions). Requires privacy or entry function lock for active door |
| 8632.xxx | Pocket Door Lock with Pull For Privacy and Entry Functions (2.5” backset) |
Notes:
- Mortise Locks are NOT available in 402 Distressed Finish; non-distressed equivalent is 402=102.
- Pocket Door Pull locks come with 7/8” fronts; all other pocket door locks come with 1” fronts.
