Product Details
＋

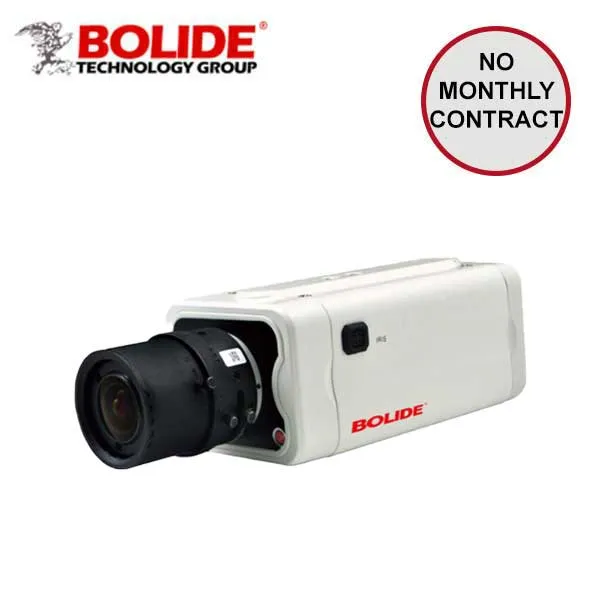

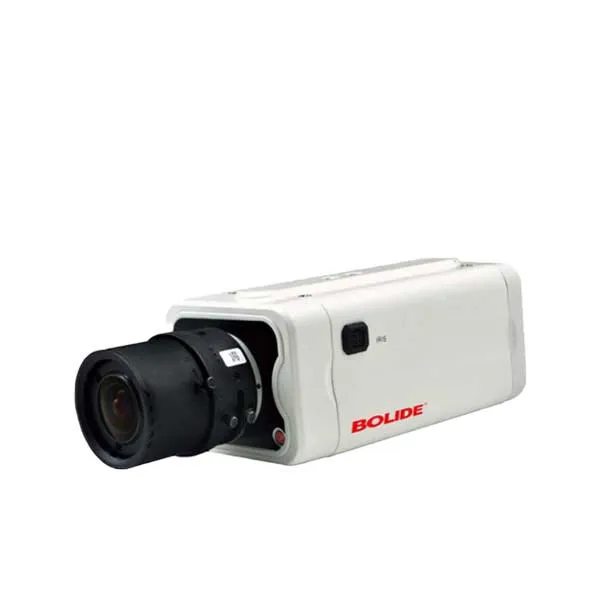

The new Ipac NX series features up to 4 Mega Pixels of stunning Ultra HD resolution combined with the Next Generation of compression standards which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The iPac NX series offers double the storage and half of the bandwidth requirements without sacrificing resolution or frame rate. The iPac NX series is perfect for any application.
Features:
- Compression H.265 / H.264
- Edge Recording
- Built in POE
- Alarm and Audio Inputs and Outputs
- CS Lens Mount
Specifications:
| Image Sensor: | 1/3” Progressive CMOS |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter: | 1/5 ~1/20000s |
| Lens: |
No lens, External |
| WDR: |
120db |
| Digital Noise Reduction: | 2D / 3D DNR |
| Video Compression: |
H.265 / H.264 / MJPEG |
| Resolution: |
Up to 4MP (2592 X 1520) |
| Video Bit Rate: |
256K-8M |
| Frame Rate: |
Mainstream: 4MP (2592 X 1520) @ 20fps, 3MP (2048 x 1536) @ 30fps, 2MP (2304 x 1296) @ 30fps, 1080P (1920 x 1080) @ 30fps, 720P (1280 x 720) @ 30fps - 960H (1280 x 960) Substream: 30 fps, D1 (704 x 480)- VGA (640 x 480)-QVGA (320 x 240) @30 fps, Mobilestream: @ 10 fps, QVGA (320 X 240)-@1-30 fps |
| Security: | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Interface: | 1 RJ45 10M / 100M Ethernet Interface / RS-485 |
| Alarm / Audio: | 1 Input/Output Alarm interface / 1 Input/Output Audio interface |
| Compatibility: | ONVIF S, RTSP |
| Voltage: | 12 VDC ± 10%, POE (802.3af) |
| Consumption: | Max. 5 W (Max. 7W with IR cut filter on) |
| Protection: | IP66 |
| Dimensions: | 6" x 2.5" x 2.8" |
