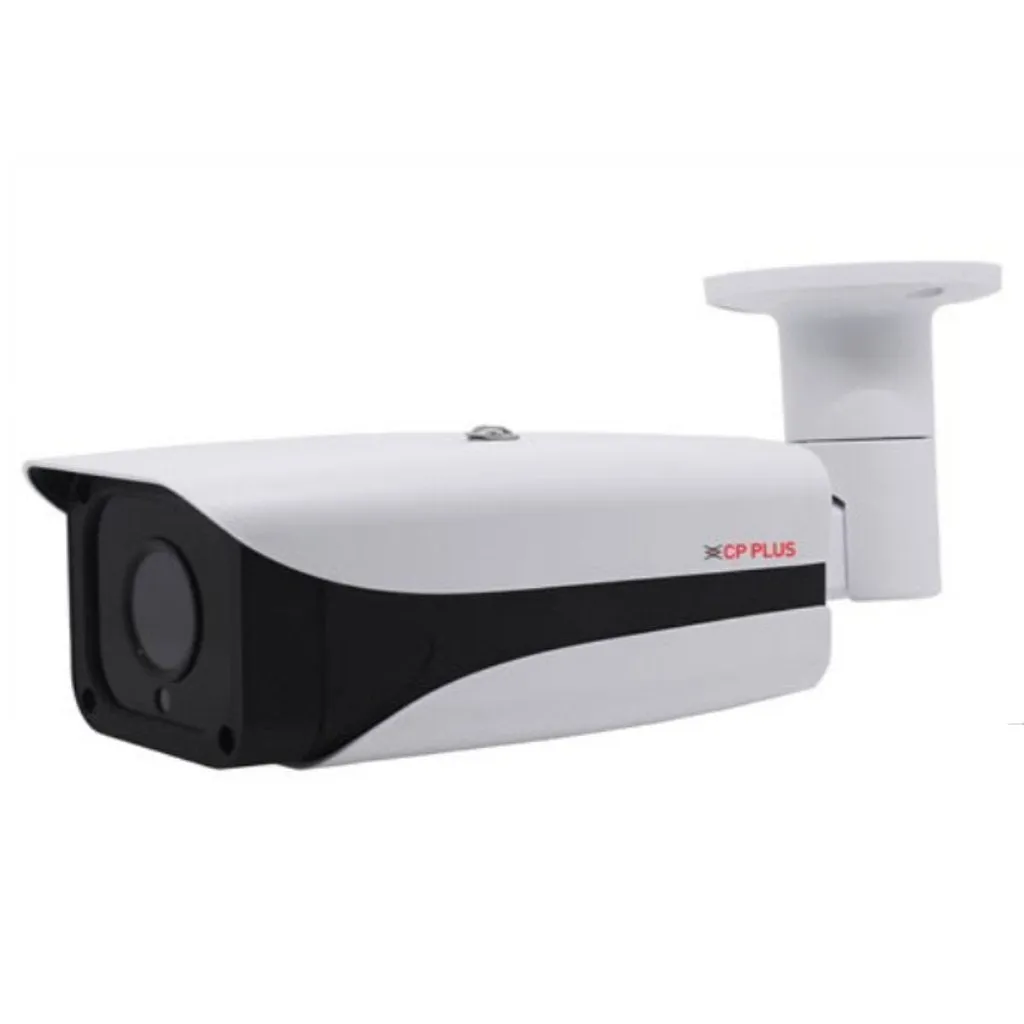

Product Description
-
2.4 MP HD Color Image Sensor
-
DWDR, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
-
Plug-n-Play HD/SD Camera
-
6mm Lens (8mm Optional)
-
Equipped with fine IR LEDs for clearer night vision
-
Array Range of 50 Mtr. , IP66
-
Compatible with HDCVI, HDTVI, AHD and CVBS Formats
Product Specification
|
Brand |
CP Plus |
|
Model No |
CP-VAC-T24R5-V5 |
|
Product Type |
Bullet Camera |
|
Image Sensor |
2.4 MP HQIS Pro Image Sensor |
|
Minimum Illumination |
Color(0.1Lux),White and Black(0.01Lux IR LED On) |
|
Body Type |
Bullet |
|
Shutter Speed |
1/50s(1/60s)-1/100,000s(Auto/Fixed) |
|
White Balance |
Auto |
|
AGC Control |
Auto |
|
Lens |
6mm Lens (8mm Optional) |
|
Gamma Correction |
0.45 |
|
S/N Ratio |
≥41dB |
|
Back Light Comp. |
Auto |
|
Frame Rate |
30fps(60Hz) , 25fps(50Hz) |
|
No. of IR LEDs |
2 Array LEDs |
|
Video Output |
1.0Vp-p Composite Output (75O / BNC), HD-AHD(1080P)\ HD-TVI(1080P)\ HD-CVI(1080P)\ CVBS |
|
Resolution |
2.4 MP |
|
ICR |
support |
|
Audio |
No |
|
WDR |
DWDR |
|
IR Range |
50 Mtr. |
|
SD Card |
No |
|
Operating Temperature |
-20°C~ 50°C |
|
Humidity |
10% ~ 90% , <95% RH no dew |
|
Power Consumption |
0.4W(2.5W after IR LED Powered on) |
|
Weatherproof Standard |
IP66 |
|
Dimension |
312.2mm x 88.52mm x 79.38mm |
|
Weight |
1.16 Kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
