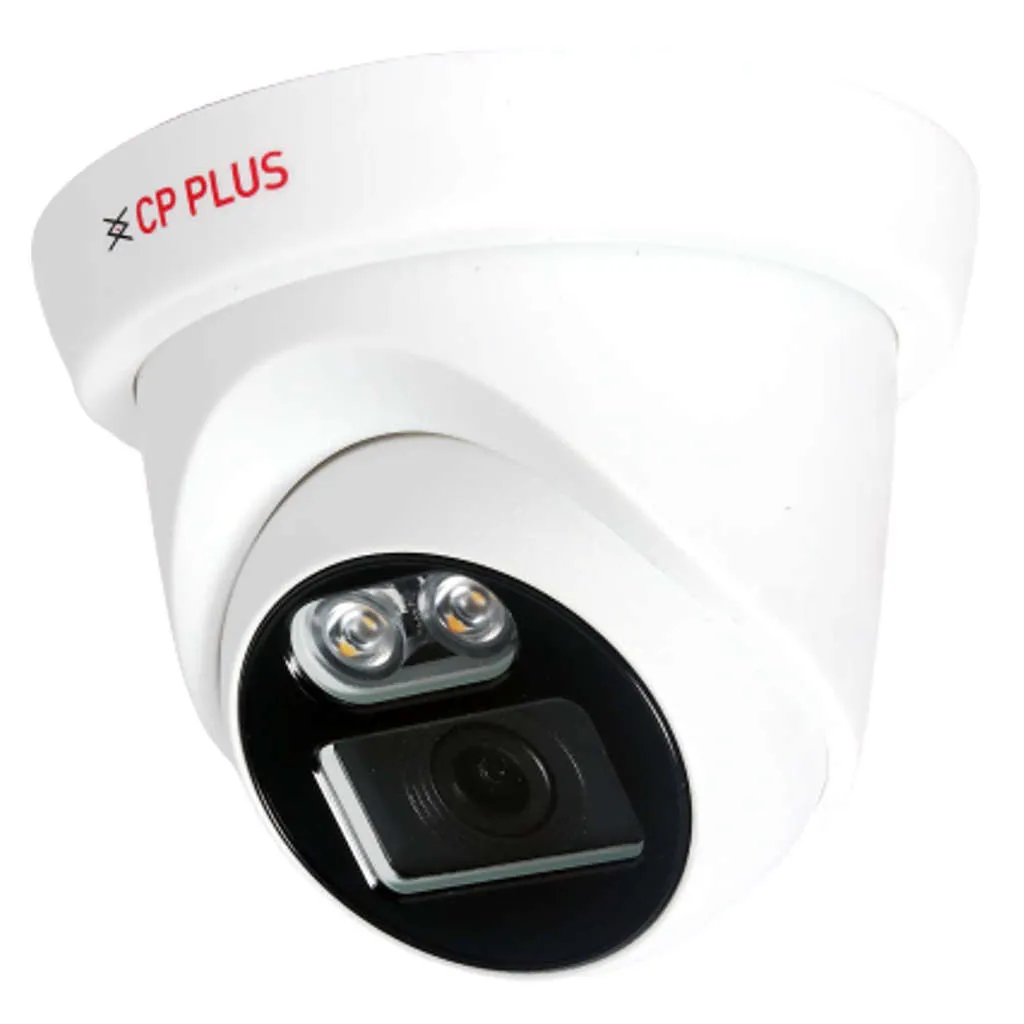

Product Description
-
1/2.9" 2.4MP CMOS Image sensor
-
DWDR, Day/Night(ICR), 2D/3D-DNR, AWB, AGC, BLC
-
3.6mm lens (6mm Optional)
-
Support low illumination,warm light day night full color
-
IR Range of 20 Mtr., IP66
Product Specification
|
Brand |
CP PLUS |
|
Product Type |
Camera |
|
Product Code |
CP-GPC-D24L2-S |
|
Image Sensor |
1/2.9" 2.4MP PS CMOS Image Sensor |
|
Minimum Illumination Color |
0.1 lux @ (F2.1, AGC ON), 0 lux with IR |
|
Shutter Speed |
PAL : 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
|
White Balance |
ATW / MWB |
|
Lens |
3.6mm Lens (6mm Optional) |
|
Gain Control (AGC) |
Auto |
|
S/N Ratio |
>52dB (AGC off) |
|
Back Light Comp. |
Support |
|
Resolution |
2.4MP |
|
Video Output |
1HD TVI/AHD/CVI/CVBS output |
|
Frame Rate |
|
|
ICR Support |
ICR EXT/Auto / Color/ BW (Black and White) |
|
LED light |
Support Auto/Manual model,brightness can adjustable |
|
IR |
IR Range of 20 Mtr. |
|
No. of IR LEDs |
2 PCS 3600K soft warm light |
|
Operating Temperature |
-20°C to 60°C |
|
Humidity |
90% or less (non-condensing) |
|
Power Source |
12VDC ± 10% |
|
Power Consumption |
Max. 5W (Max. 5W with IR cut filter on) |
|
Weatherproof Standard |
IP66 |
|
Dimension |
73.2mm x 73.2mm x 108mm |
|
Weight |
0.22KG |
