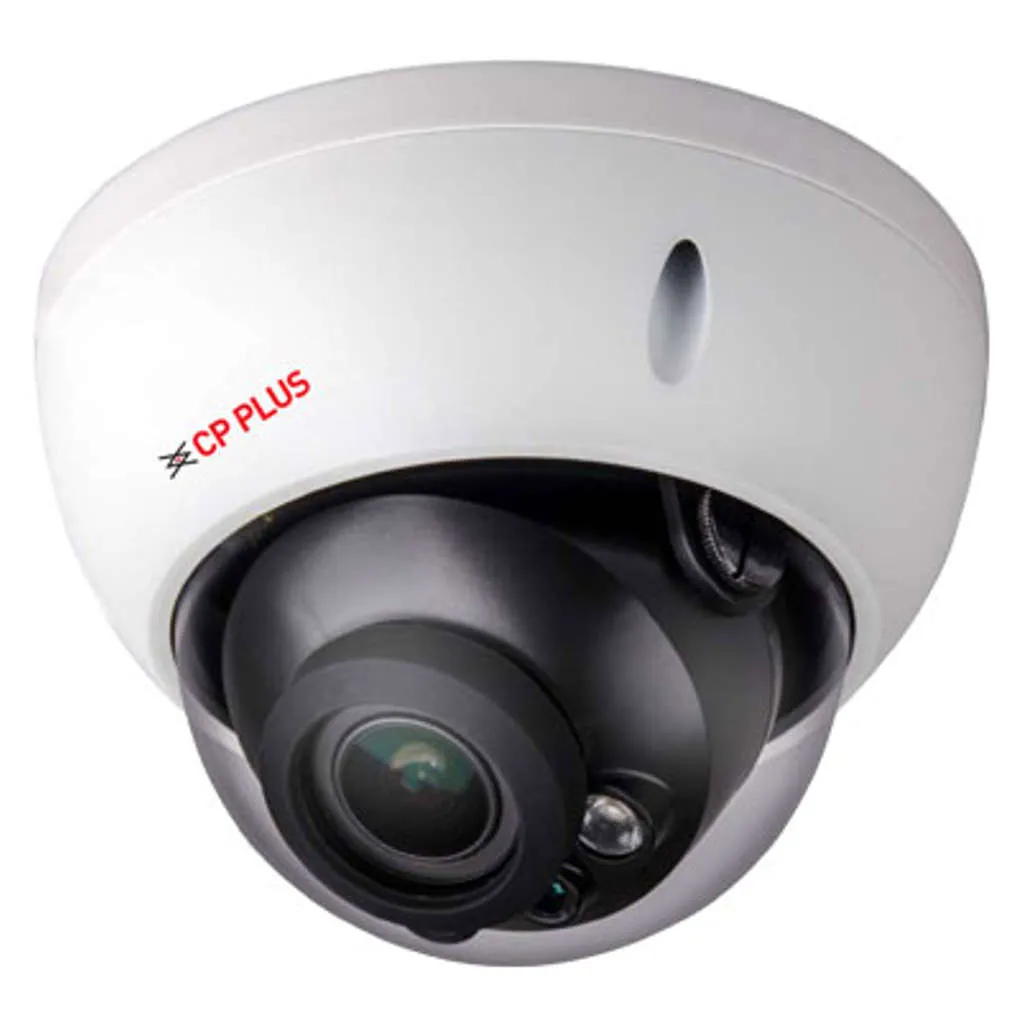

Product Description
-
1/2.7" 2.4MP PS CMOS Image Sensor (0.9407 centimeters)
-
Max 25/[email protected]
-
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
-
2.7mm~12mm Motorized Lens
-
IR Range of 30Mtrs., Smart IR, IP67, IK10
-
OSD Menu,control over coaxial cable, 2D-DNR
-
CVI/CVBS/AHD/TVI switchable
-
Functions
-
OSD Menu Support
-
CP PLUS HD analog cameras come with their own menu using which the camera settings can be managed,for instance,the signal type can be changed and other sensor level adjustments be made
-
IR LED
-
Numerous IR LEDs provide detailed images even in very low light conditions
-
These LEDs adjust the infrared intensity for distinct images in dark environments for up to 30mtrs
-
UNI Technology
-
CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and Hdx, making upgrading simple and hassle-free
-
Power Protection
-
With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions
-
Plug & Play
-
CP PLUS Analog HD cameras are simple to configure and in-stall
Product Specification
| Brand | CP Plus |
| Product Type | Dome Camera |
| Product Model | CP-USC-VA24ZR3 |
| Image Sensor | 1/2.7" 2.4MP PS CMOS (0.9407 centimeters) |
| Minimum Illumination | 0.02Lux/F1.7, 30IRE, 0Lux IR on |
| Effective Pixels | 2.4MP |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| White Balance | Auto / Manual |
| Gain Control (AGC) | Auto |
| Lens | 2.7~12mm |
| Lens Type | Motorized |
| Iris Type | Fixed-Iris |
| Mount Type | φ14 |
| Maximum Aperture | F1.7 |
| Day/Night | Auto switch by ICR |
| S/N Ratio | >65dB |
| Noise Reduction | 2D-DNR |
| Angle Of View | Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53° |
| Close Focus Distance | 1.2m |
| DORI Distance | 2.7mm: 49.7m(Detect); 19.9m(Observe); 9.9m(Recognize); 5m (Identify) |
| Back Light Compensation | BLC/HLC/DWDR |
| Video Streaming | CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 2.4MP@25/30fps; |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| IR LED Number | 2 |
| IR | IR Range of 30 Mtr |
| Smart IR | Yes |
| Mirror | Off/On |
| Electronic Defog | Yes |
| Privacy Masking | Off/On (8 area, rectangle) |
| Weatherproof Standard | IP67 & IK10 |
| Casing | Plastic dome cover metal upper casing metal pedesta |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) / Less than 95% (non-condensation) |
| Power
$
