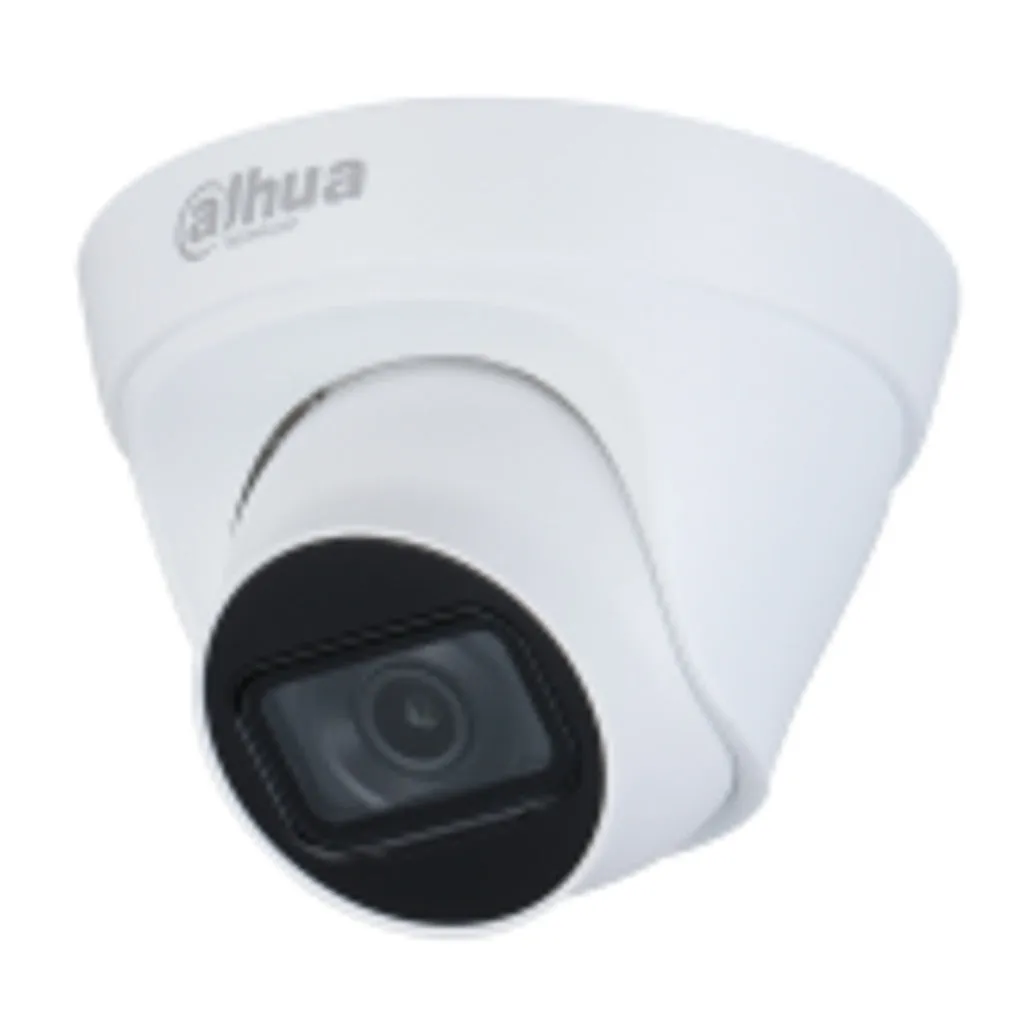

Brand

Dahua

Product Type

Network Camera

Product Model

IPC-HDW1230T1P-A-S4

Image Sensor

1/2.8” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01 [email protected] (Color, 30 IRE)

0.001 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

More than 56dB

IR Distance

Distance up to 30m(98.4ft)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm,3.6 mm

Maximum Aperture

F2.0/F2.0

Angle of View

2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°

3.6 mm: Horizontal: 88°; Vertical: 47°; Diagonal: 104°

Focus Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

38.6 m (126.64 ft)

15.4 m (50.52 ft)

7.7 m (25.26 ft)

3.9 m (12.80 ft)

3.6 mm

49.7 m (163.06 ft)

19.9 m (65.29 ft)

9.9 m (32.48 ft)

5.0 m (16.40 ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~78° ;Rotation:0° ~360°

Intelligence

IVS

NA

Video

Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Streaming Capability

2 Streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1920 × 1080@1–25/30 fps

Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps

The values above are the Maximum frame rates of each stream; for multIPle streams, the values will be subjected to the total encoding capacity.

Bit Rate Control
