Product Description
-

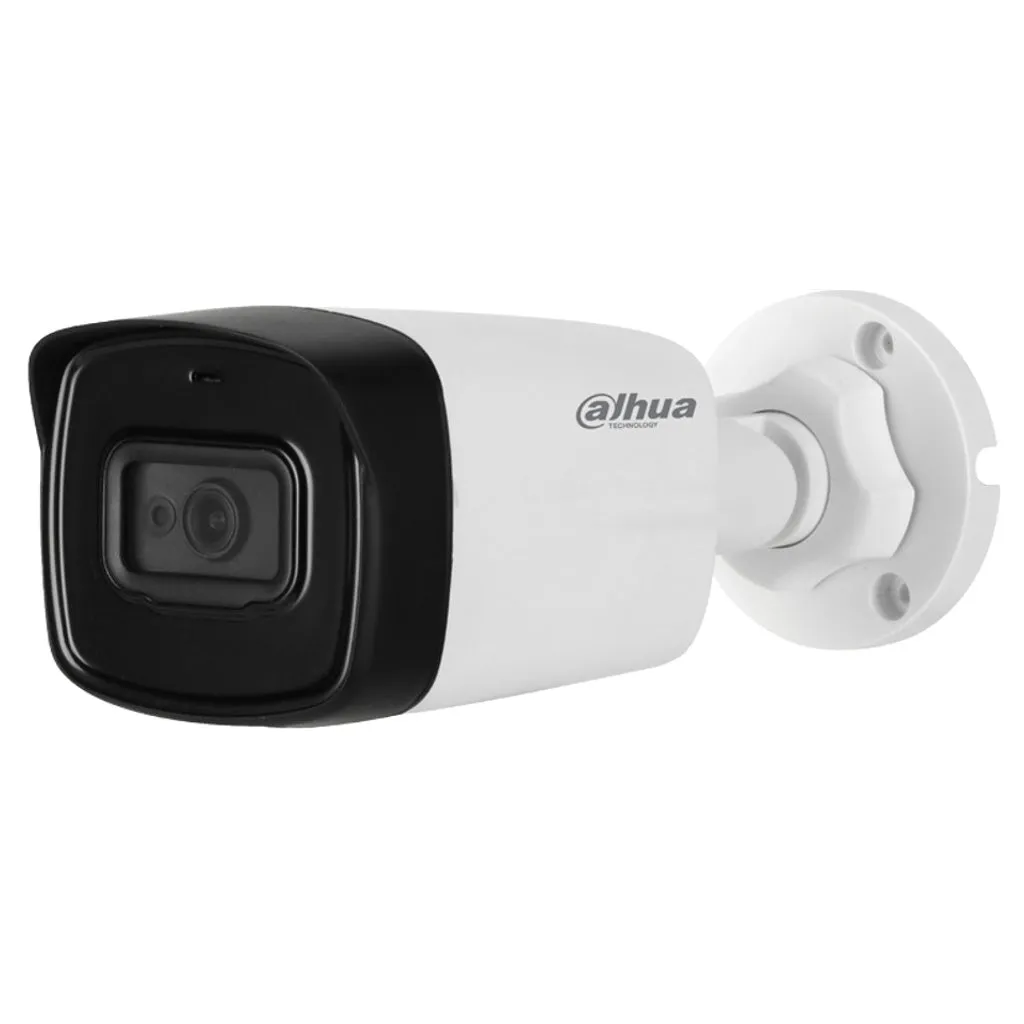

Starlight
-
Max. 20fps@5MP
-
HD and SD output switchable
-
3.6mm fixed lens (2.8mm, 6mm optional)
-
Max. IR length 50m, Smart IR
-
IP67, DC12V
-
Functions
-
4 Signals over 1 Coaxial Cable
-
Long Distance Transmission
-
Simplicity
-
Smart IR
-
Multi-formats
-
Multi-language OSD
-
Protection
Product Specification
Brand |
Dahua |
||
Product Type |
Bullet Camera |
||
Series |
Lite Plus Series |
||
Product Model |
DH-HAC-HFW1501TLP |
||
Camera | |||
Image Sensor |
1/2.7" CMOS |
||
Effective Pixels |
2592(H)×1944(V), 5MP |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||
Minimum Illumination |
0.02Lux/F1.85, 30IRE, 0Lux IR on |
||
S/N Ratio |
More than 65dB |
||
Ir Distance |
Up to 50m (131feet) |
||
Ir On/Off Control |
Auto / Manual |
||
Ir Leds |
2 |
||
Lens | |||
Lens Type |
Fixed lens / Fixed iris |
||
Mount Type |
Board-in |
||
Focal Length |
3.6mm (2.8mm, 6mm optional) |
||
Max Aperture |
F1.85 |
||
Angle Of View |
H: 77.5° (98°/49°) |
||
Focus Control |
N/A |
||
Close Focus Distance |
1400mm (900mm/2800mm) 55" (35''/110'') |
||
Dori Distance | |||
DORI Definition |
Distance |
||
Detect |
25px/m (8px/ft) |
2.8mm: 63m(207ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft) |
|
Observe |
63px/m (19px/ft) |
2.8mm: 25m(82ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft) |
|
Recognize |
125px/m (38px/ft) |
2.8mm: 13m(43ft) 3.6mm: 16m(53ft) 6mm: 24m(79ft) |
|
Identify |
250ppm (76px/ft) |
2.8mm: 6m(21ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft) |
|
Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
||
Video | |||
Resolution |
5MP (2592×1944) |
||
Frame Rate |
20fps@5MP, 25/30fps@4MP, 25/30fps@1080P |
||
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
||
Day/Night |
Auto (ICR) / Manual |
||
Osd Menu |
$
