Brand

Dahua

Product Type

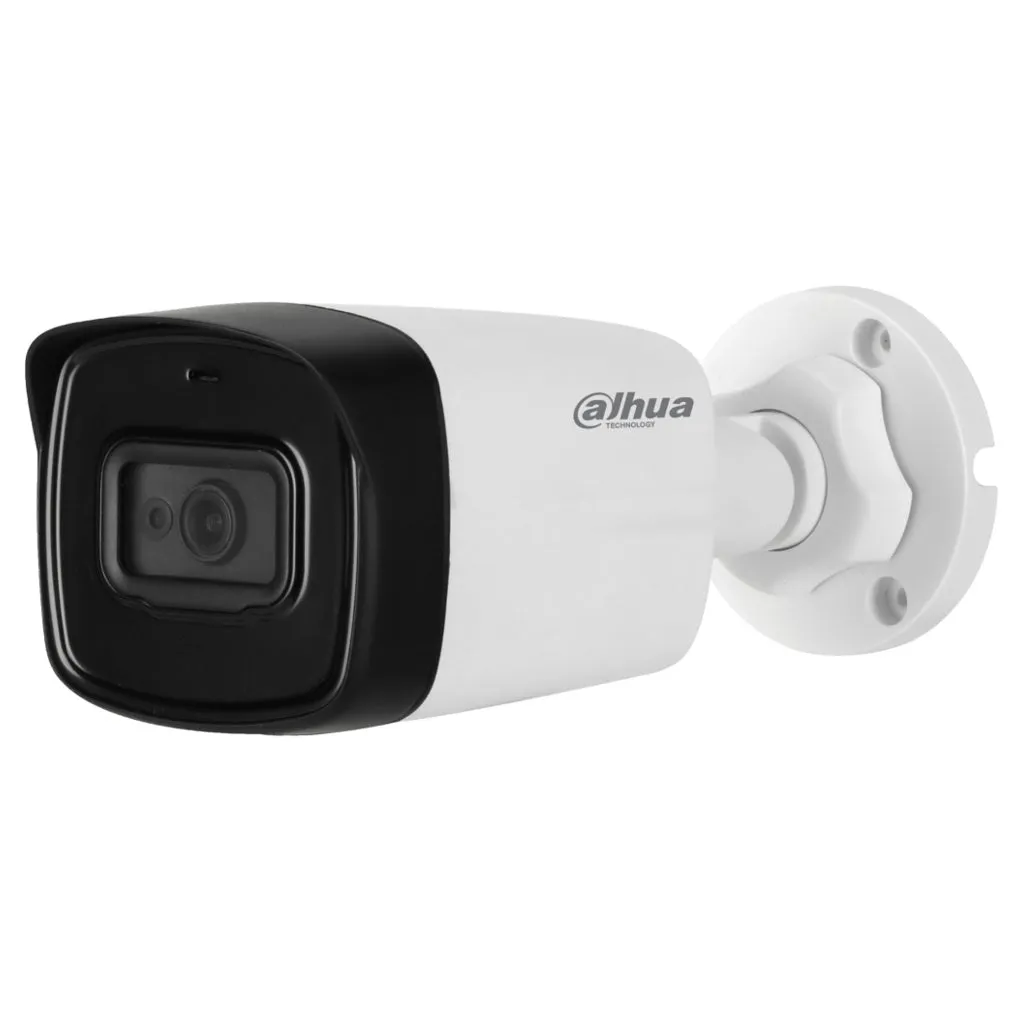

Bullet Camera

Series

Lite Plus Series

Product Model

DH-HAC-HFW1501TLP-A

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

2592(H)×1944(V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

Ir Distance

Up to 80m (262feet)

Ir On/Off Control

Auto / Manual

Ir Leds

2

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm, 8mm optional)

Max Aperture

F1.85

Angle Of View

H: 77.5° (98°/49°/37°)

Focus Control

N/A

Close Focus Distance

1400mm (900mm/2800mm/4500mm) 55" (35''/110''/177")

Dori Distance

DORI Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 63m(207ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft) 8mm: 160m(525ft)

Observe

63px/m (19px/ft)

2.8mm: 25m(82ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft) 8mm: 64m(210ft)

Recognize

125px/m (38px/ft)

2.8mm: 13m(43ft) 3.6mm: 16m(53ft) 6mm: 24m(79ft) 8mm: 32m(105ft)

Identify

250ppm (76px/ft)

2.8mm: 6m(21ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft) 8mm: 16m(52ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

Osd Menu

Multi-language

Blc Mode

BLC / HLC / DWDR

Wdr

100db

Gain Control

AGC

Noise Reduction
