Brand

Dahua

Product Type

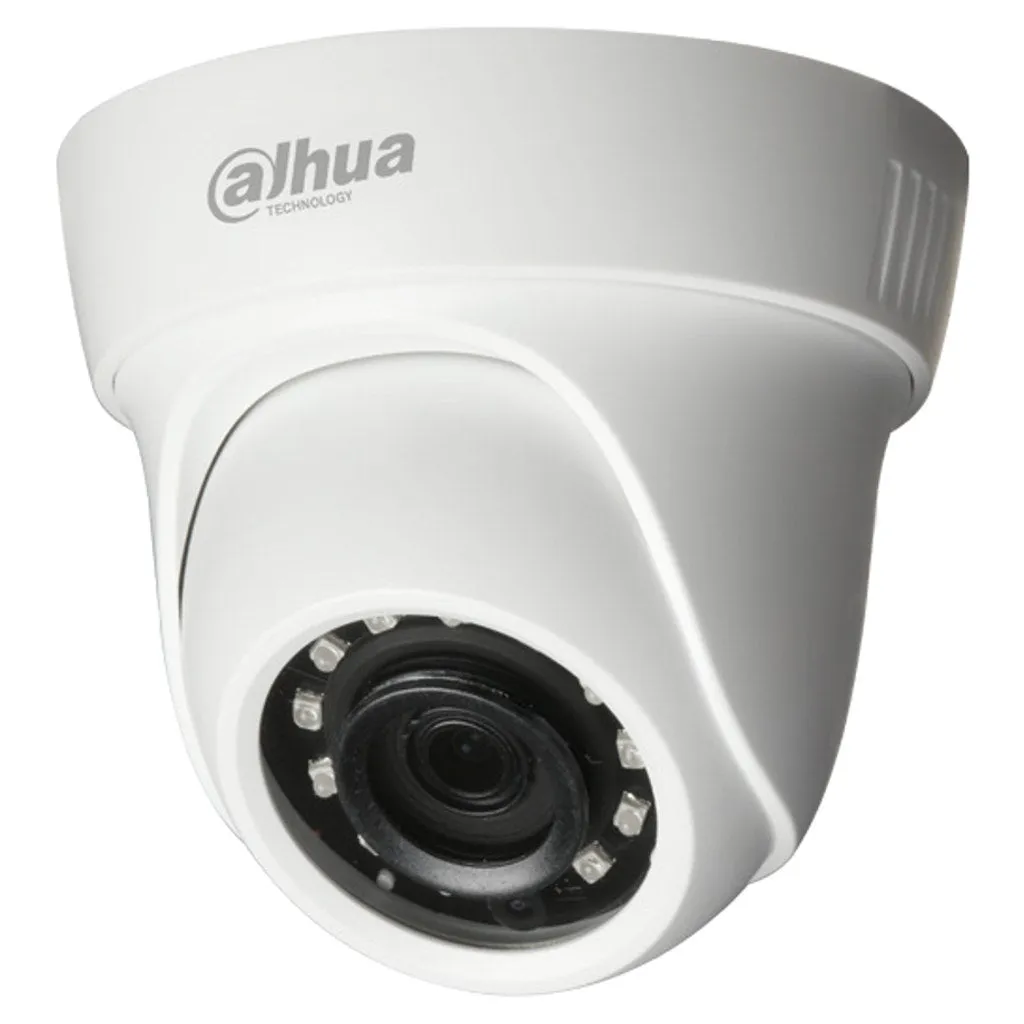

Dome Camera

Series

Lite Plus Series

Product Model

DH-HAC-HDW1501SLP

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

2592(H)×1944(V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

Ir Distance

Up to 20m (66feet)

Ir On/Off Control

Auto / Manual

Ir Leds

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F1.85

Angle Of View

H: 77.5° (93°/49°)

Focus Control

N/A

Close Focus Distance

1400mm (800mm/2800mm) 55" (31.5''/110'')

Dori Distance

DORI Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 56m(184ft) 3.6mm: 80m(262ft) 6mm: 120m(394ft)

Observe

63px/m (19px/ft)

2.8mm: 22m(72ft) 3.6mm: 32m(105ft) 6mm: 48m(157ft)

Recognize

125px/m (38px/ft)

2.8mm: 11m(36ft) 3.6mm: 16m(53ft) 6mm: 24m(79ft)

Identify

250ppm (76px/ft)

2.8mm: 6m(21ft) 3.6mm: 8m(26ft) 6mm: 12m(39ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

Osd Menu

Multi-language
