Brand

Dahua

Product Type

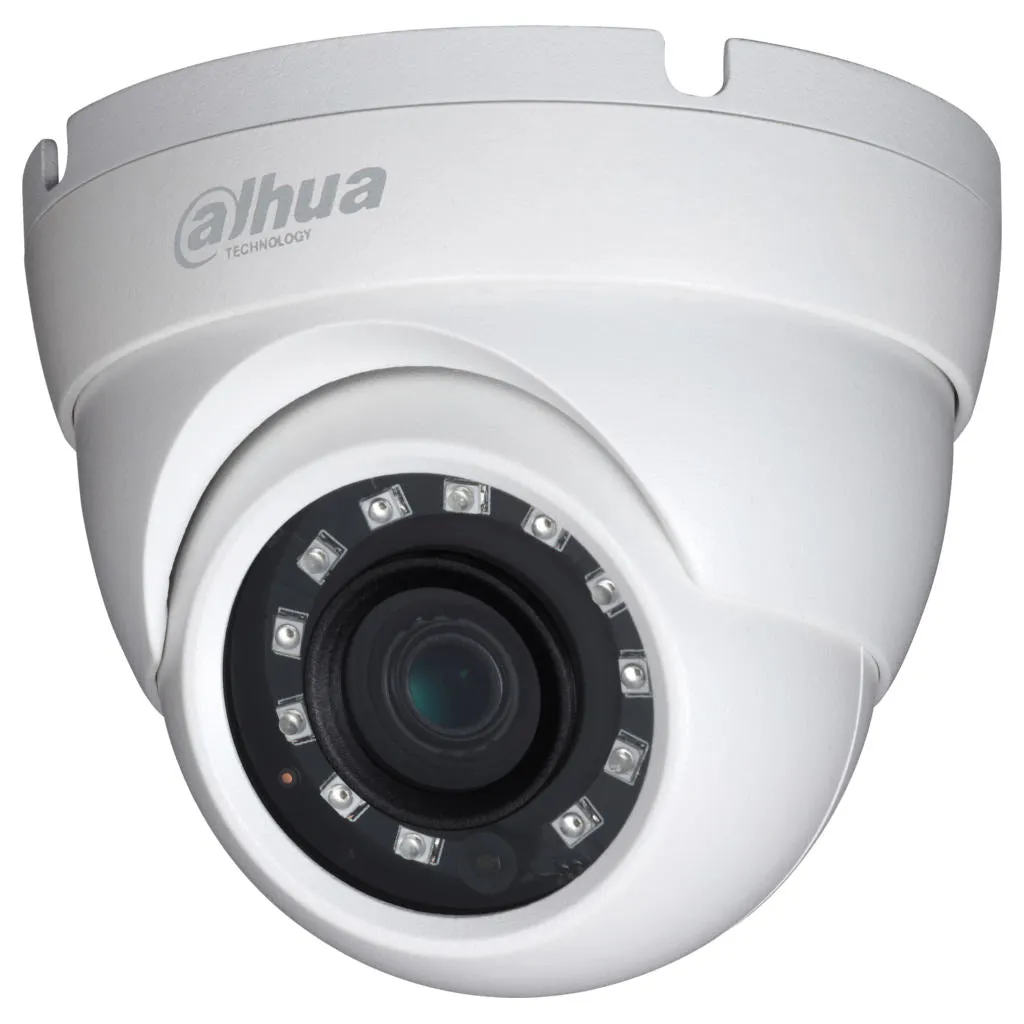

Dome Camera

Series

Lite Series

Product Model

DH-HAC-HDW1220SP

Camera

Image Sensor

1/2.9" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F2.0, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

Ir Distance

Up to 30m (98feet)

Ir On/Off Control

Auto / Manual

Ir Leds

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm, 6mm Optional)

Max Aperture

F2.0

Angle Of View

H: 80.8° (106°/51°)

Focus Control

N/A

Close Focus Distance

800mm (500mm/1900mm) 31.5'' (19.7''/74.8'')

Dori Distance

Dori Definition

Distance

Detect

25px/m (8px/ft)

3.6mm: 57m(187ft) 2.8mm:45m(149ft) 6mm: 86m(281ft)

Observe

63px/m (19px/ft)

3.6mm: 23m(75ft) 2.8mm:18m(59ft) 6mm:34m(113ft)

Recognize

125px/m (38px/ft)

3.6mm: 11m(37ft) 2.8mm:9m(30ft) 6mm: 17m(56ft)

Identify

250ppm (76px/ft)

3.6mm: 6m(19ft) 2.8mm:5m(15ft) 6mm: 9m(28ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

Osd Menu

Multi-language
