Brand

Dahua

Product Type

Dome Camera

Series

PIR Series

Product Model

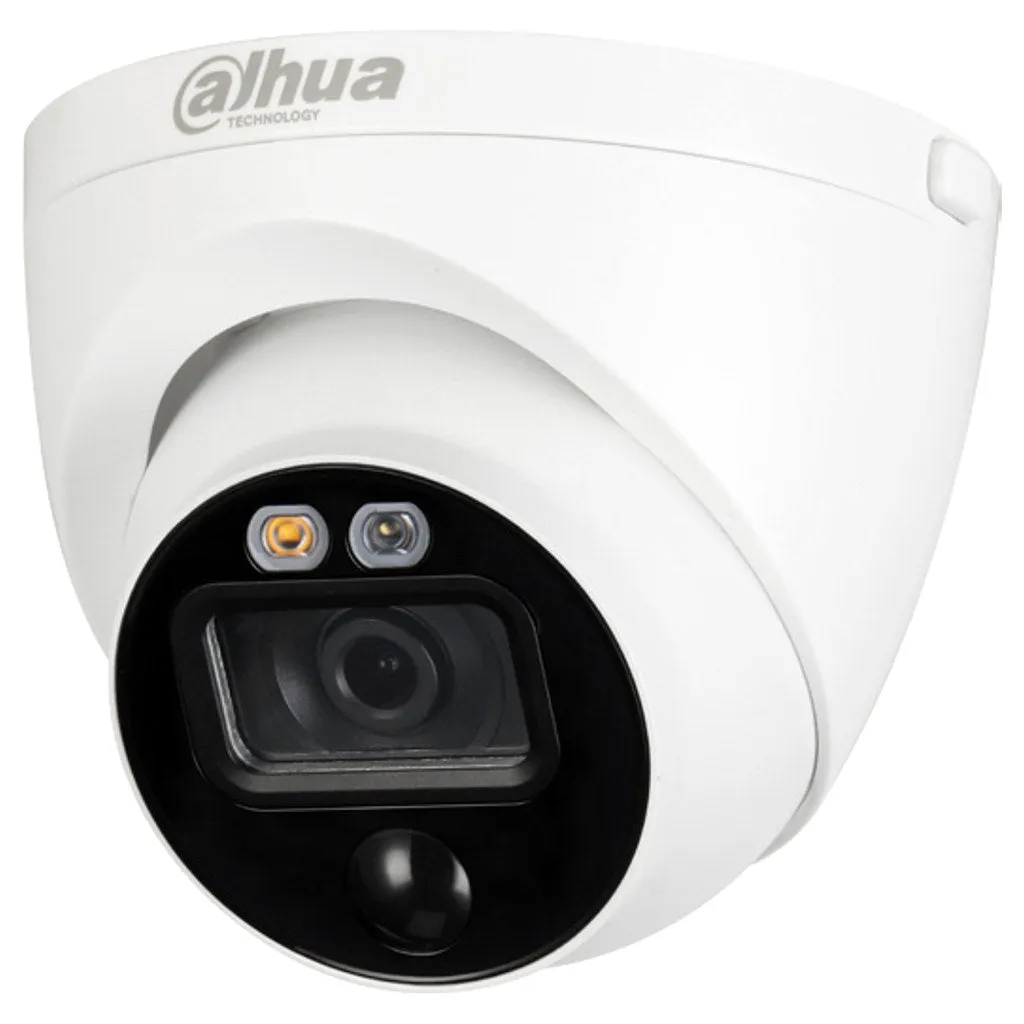

DH-HAC-ME1200EP-LED

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F2.0(Color), 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

Ir Distance

Up to 20m (66feet)

Ir On/Off Control

Auto / Manual

Ir Leds

1

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

2.8mm (3.6mm Optional)

Max Aperture

F2.0

Angle Of View

H: 112° (88°) V: 59° (47°)

Focus Control

N/A

Close Focus Distance

500mm(900mm) 20''(35'')

Dori Distance

Dori Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 37m(122ft) 3.6mm: 53m(175ft)

Observe

63px/m (19px/ft)

2.8mm: 15m(49ft) 3.6mm: 21m(70ft)

Recognize

125px/m (38px/ft)

2.8mm: 8m(25ft) 3.6mm: 11m(35ft)

Identify

250ppm (76px/ft)

2.8mm: 4m(12ft) 3.6mm: 5m(17ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

Osd Menu
