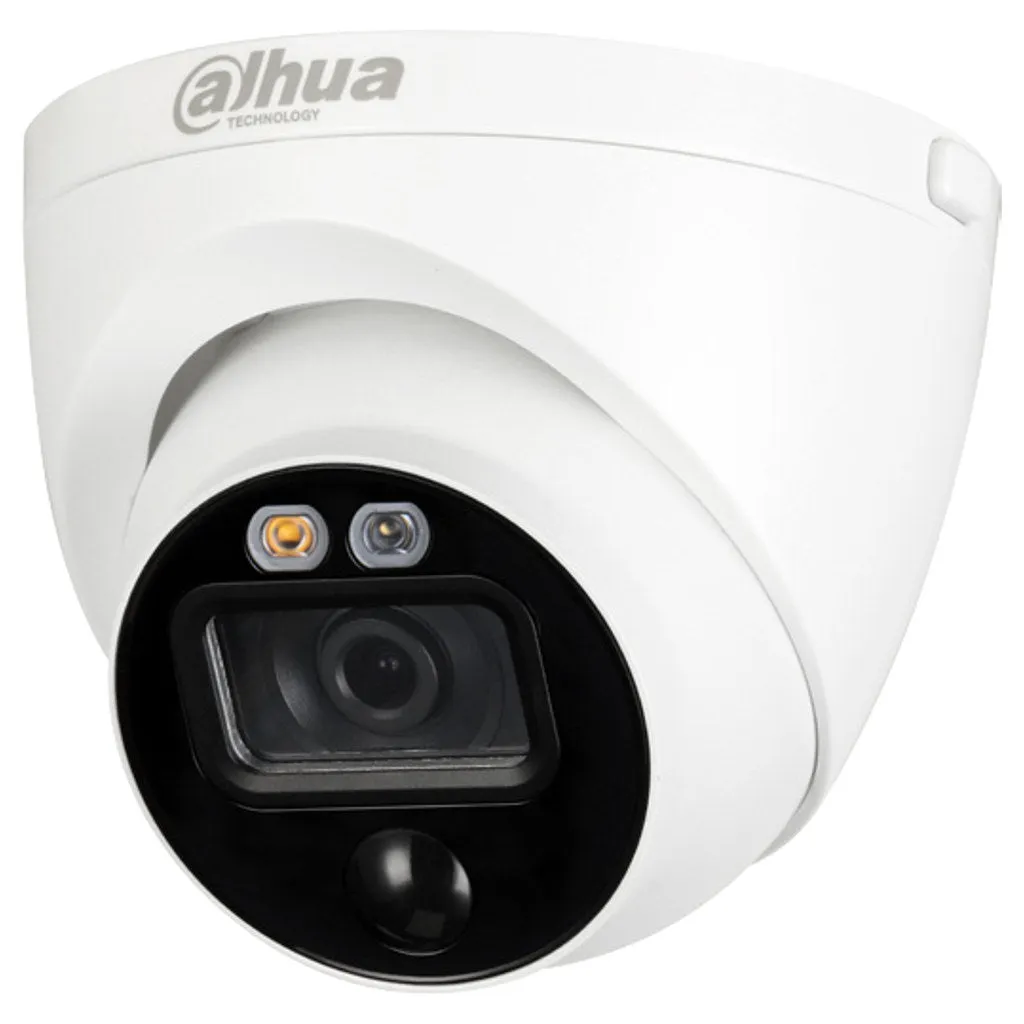

Brand

Dahua

Product Type

Dome Camera

Series

PIR Series

Product Code

DH-HAC-ME1500EP-LED

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

2592(H)×1944(V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F2.0(Color), 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

IR Leds

1

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

2.8mm (3.6mm Optional)

Max Aperture

F2.0

Angle Of View

H: 99° (77.5°)

V: 72° (56.5°)

Focus Control

N/A

Close Focus Distance

800mm(1400mm)

31''(55'')

Dori Distance

Dori Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 56m(184ft)

3.6mm: 80m(262ft)

Observe

63px/m (19px/ft)

2.8mm: 22m(73ft)

3.6mm: 32m(105ft)

Recognize

125px/m (38px/ft)

2.8mm: 11m(37ft)

3.6mm: 16m(52ft)

Identify

250ppm (76px/ft)

2.8mm: 6m(18ft)

3.6mm: 8m(26ft)

Pan/Tilt/Rotation

Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps5MP, 25/30fps4MP, 25/30fps1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)
