| Product Attribute | Attribute Value |
|---|---|
| Body Style | Direct |
| Gauge Range | 0 to 20 psi |
| IP Rating | IP65 |
| Measurement Range | 0-20 psi |
| Measurement Units | psi |
| Mounting Type | Direct |
| Number of Scales | 1 Scale |
| Output | 4-20 mA and Dry Contact |
| Primary Type | Pressure Gauge |
| Sensing Mode | Gauge |
| Series | |
| Special Features | IP65 |
| Supply Voltage | 12-30 VAC/VDC |
| Termination | Terminal Block |
| Type | Electronic |
Overview

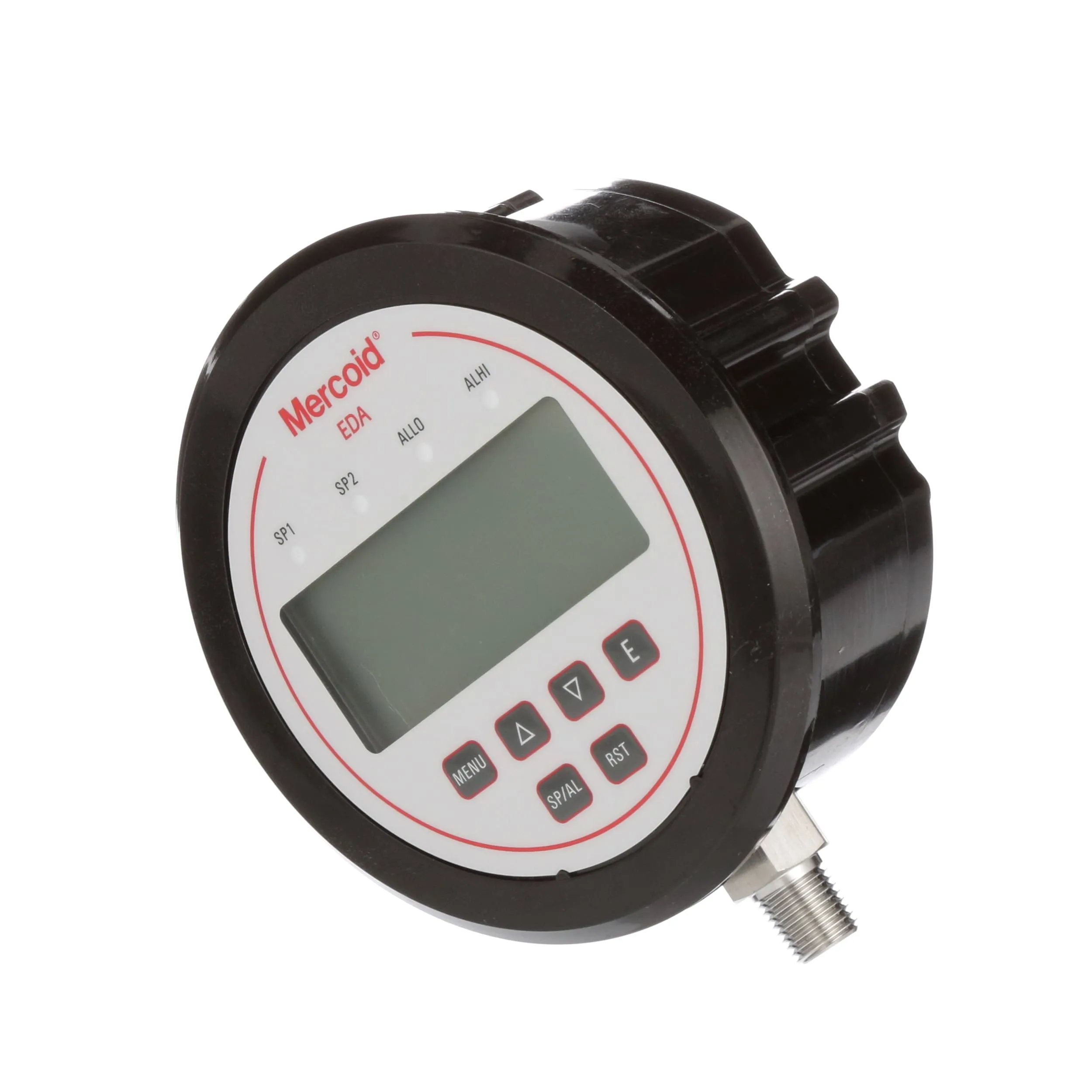

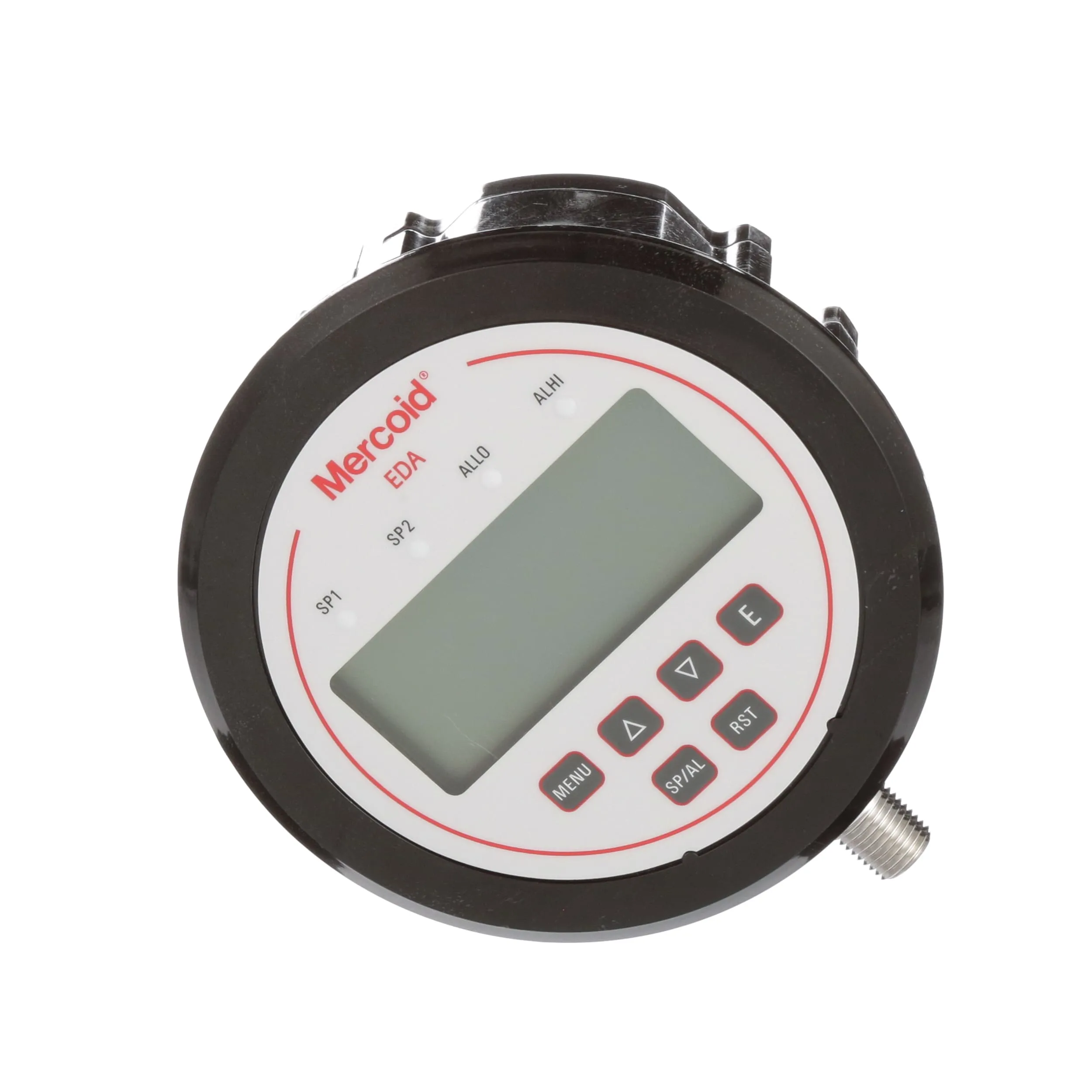

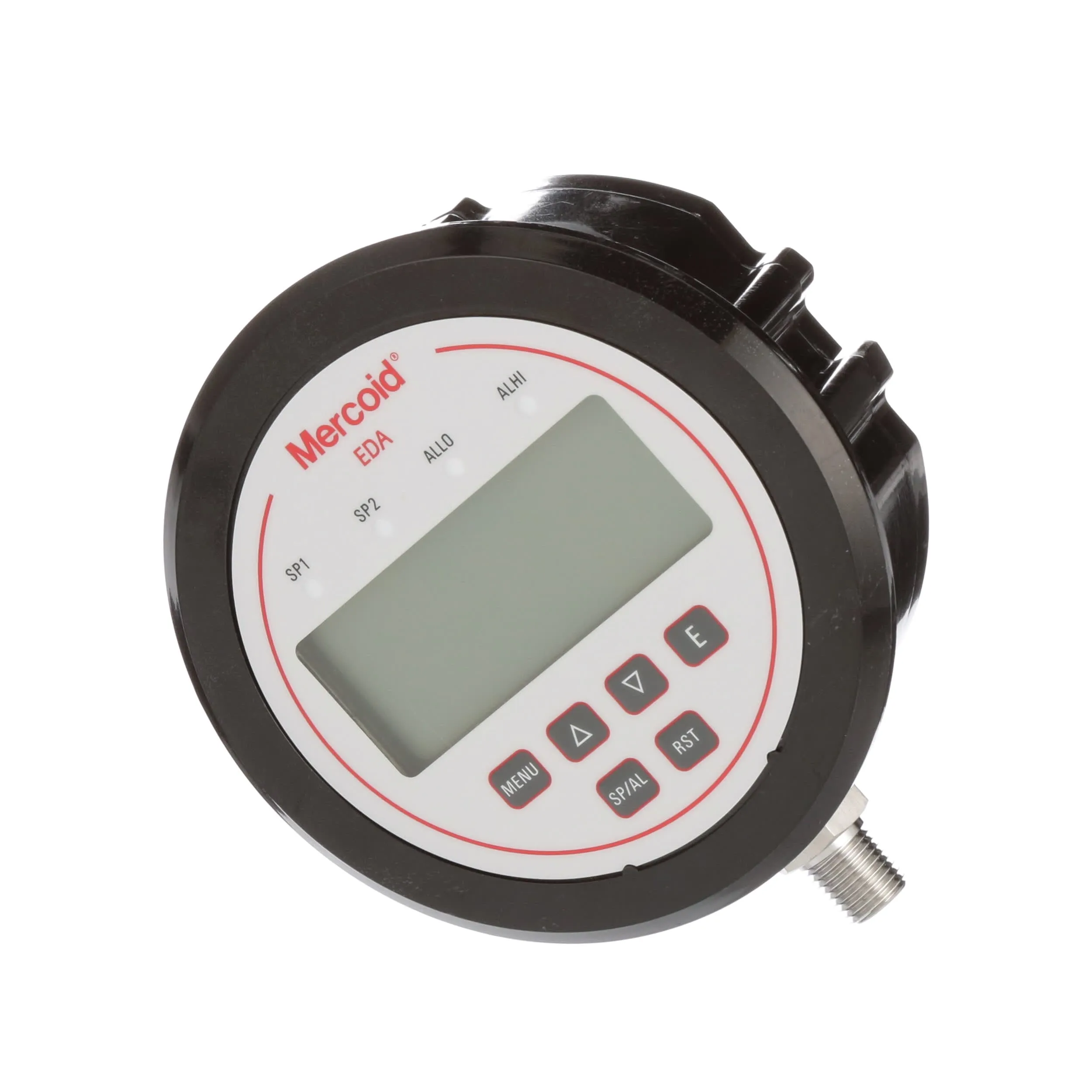

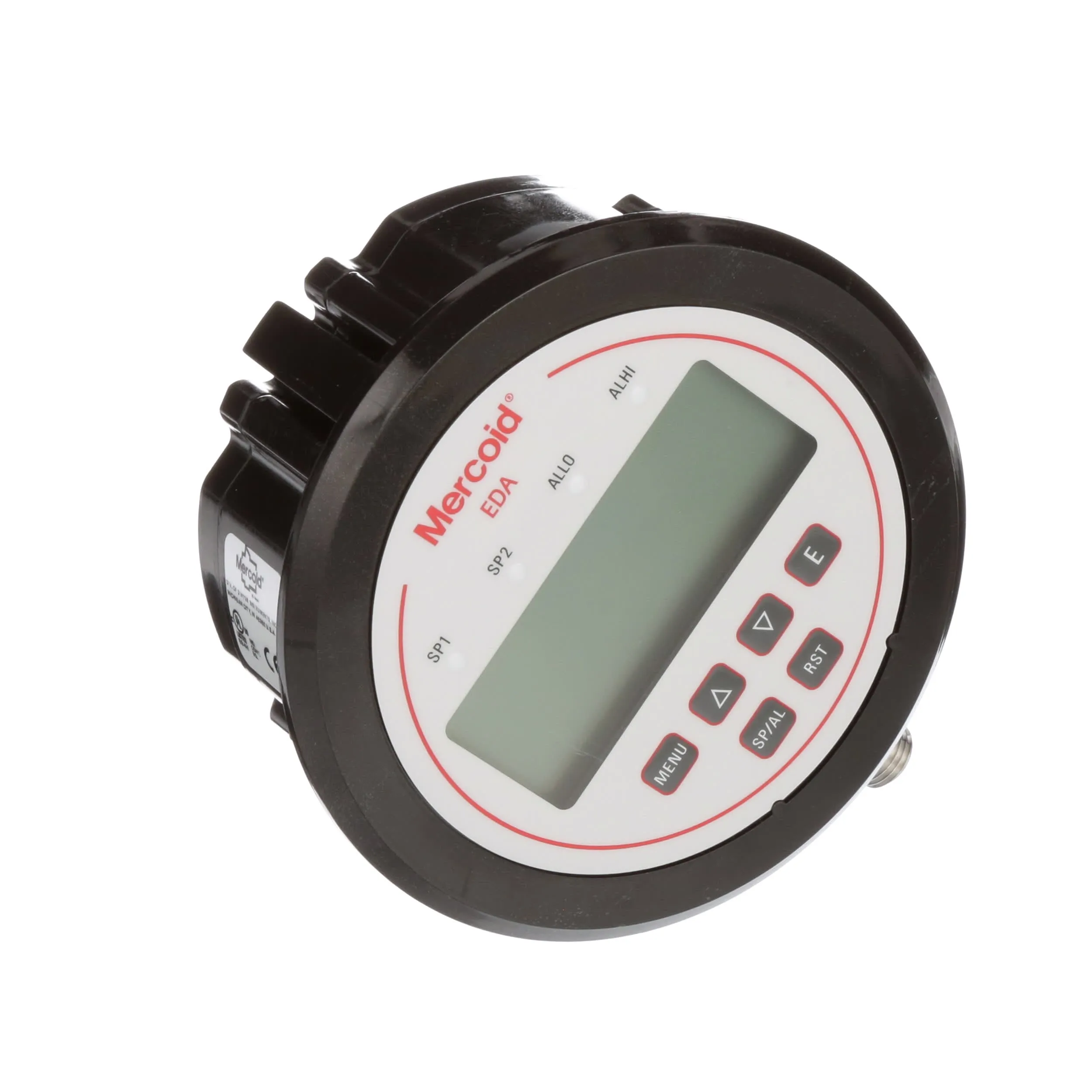

Series EDA Electronic Pressure Control is an extremely versatile compact package that can replace a separate gage, two switches, and a transmitter in a system saving money, installation time, and panel space. The EDA incorporates two SPDT relays that have the on and off points fully adjustable over the range for control or alarm use. Front face has LED indicators for switch status and a large backlight two-line display showing process value and indication units. Programming is easy with simple menu structure, two-line display, and external programming buttons. Weatherproof housing is ideal for a wide variety of applications with panel mount, flush mount, or pipe mount ability. Features include zero set, adjustable dampening, menu lock out, peak and valley indication, removable terminal blocks, adjustable time delay, and scalable transmitter output.
