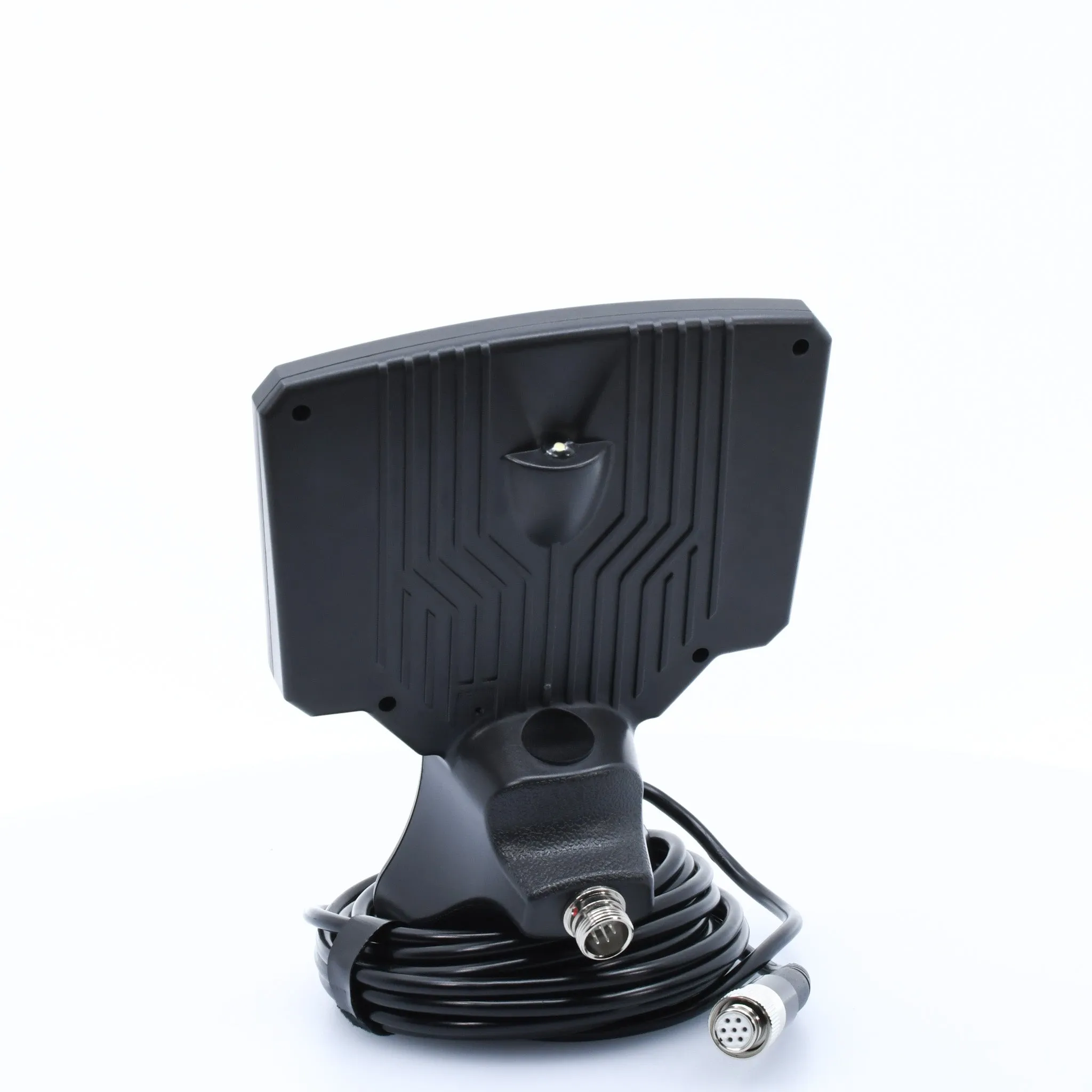

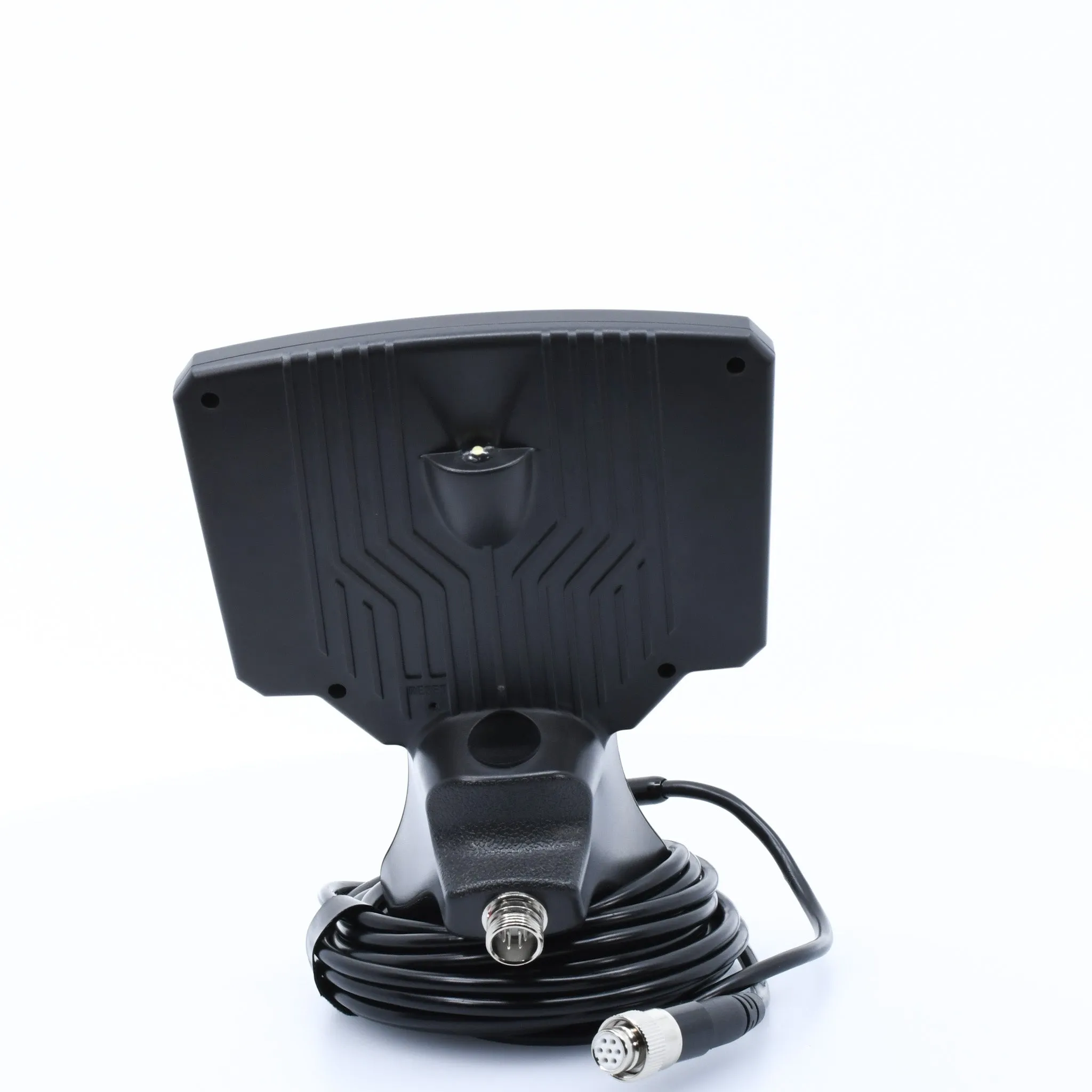

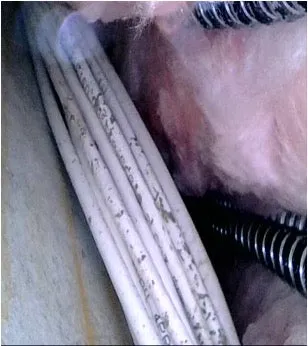

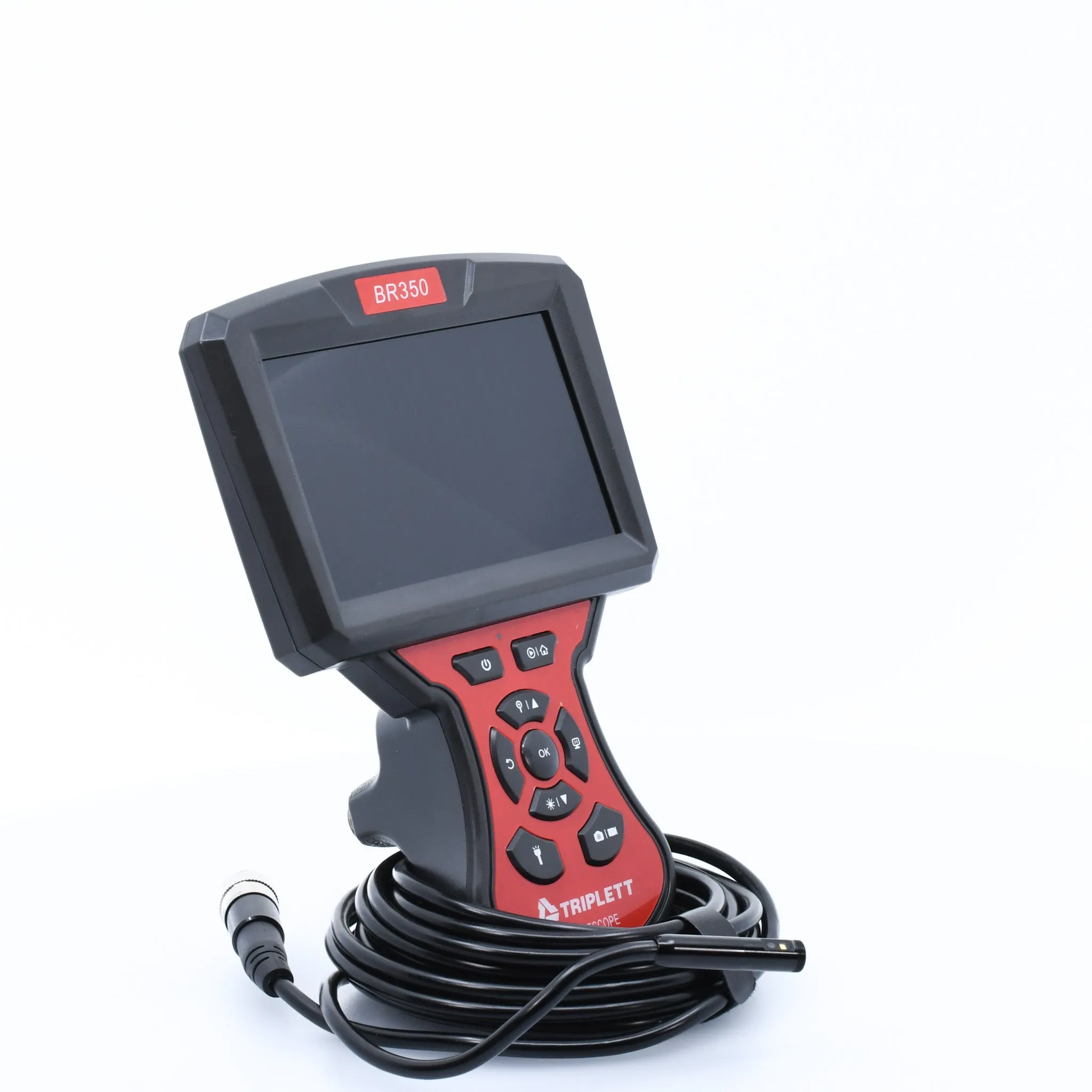

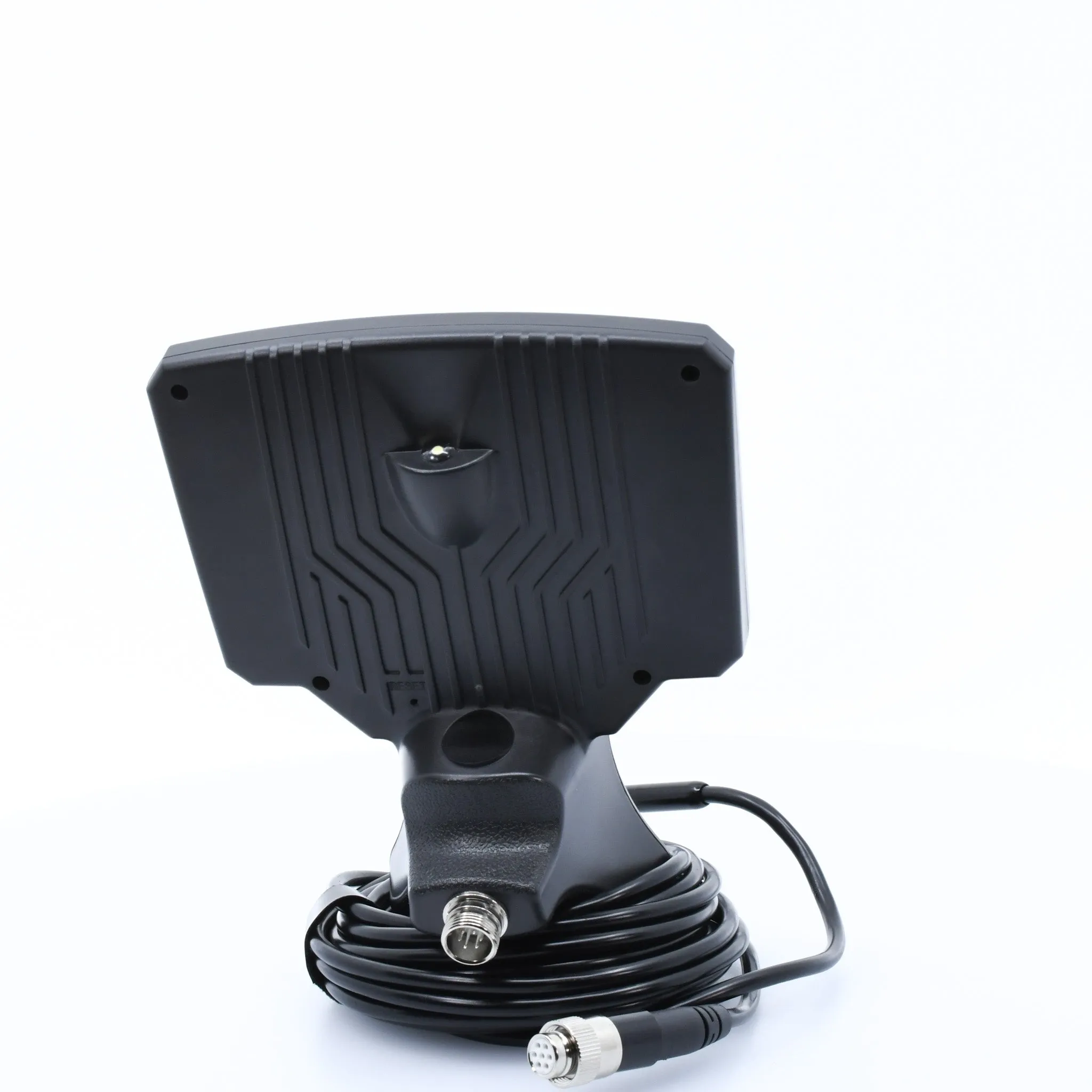

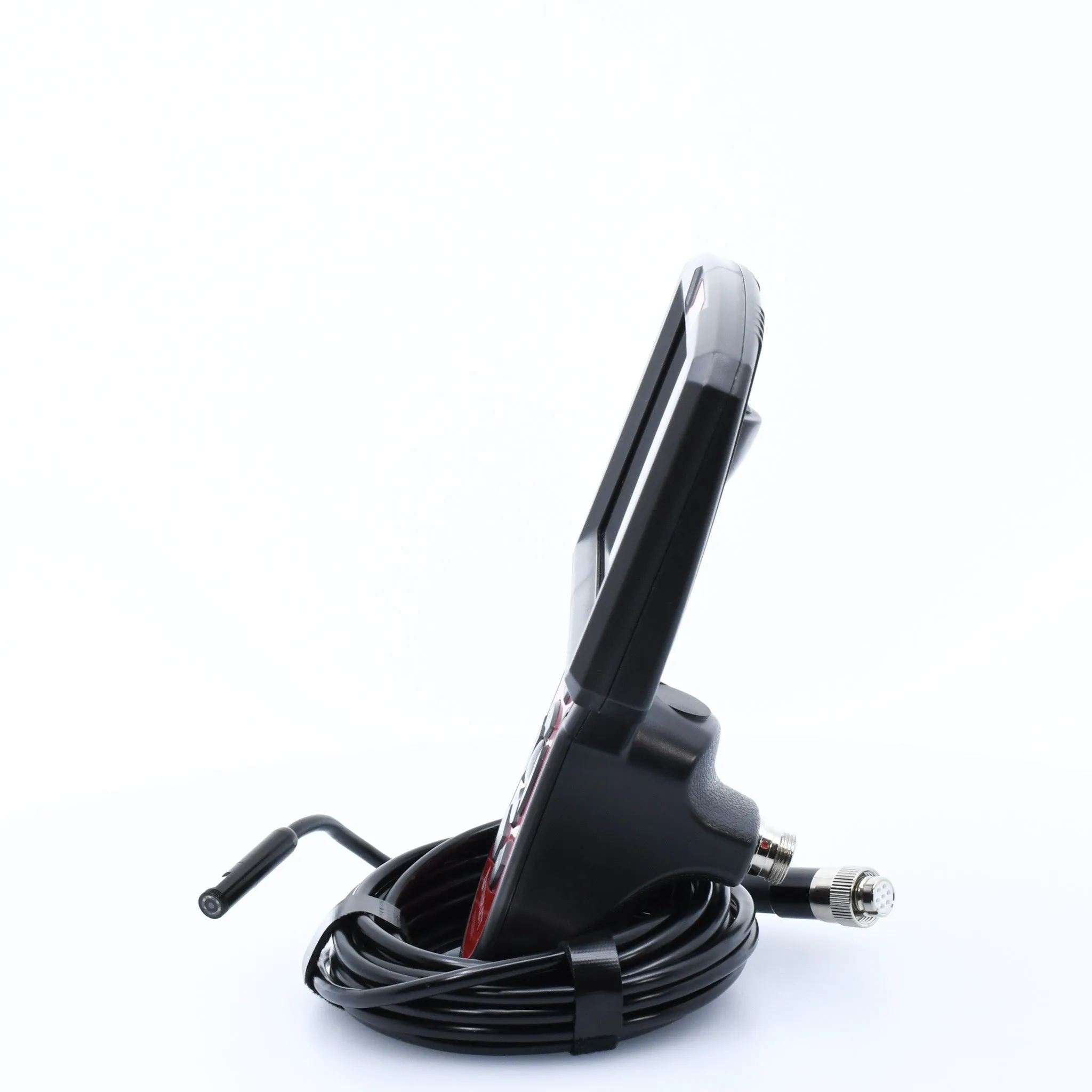

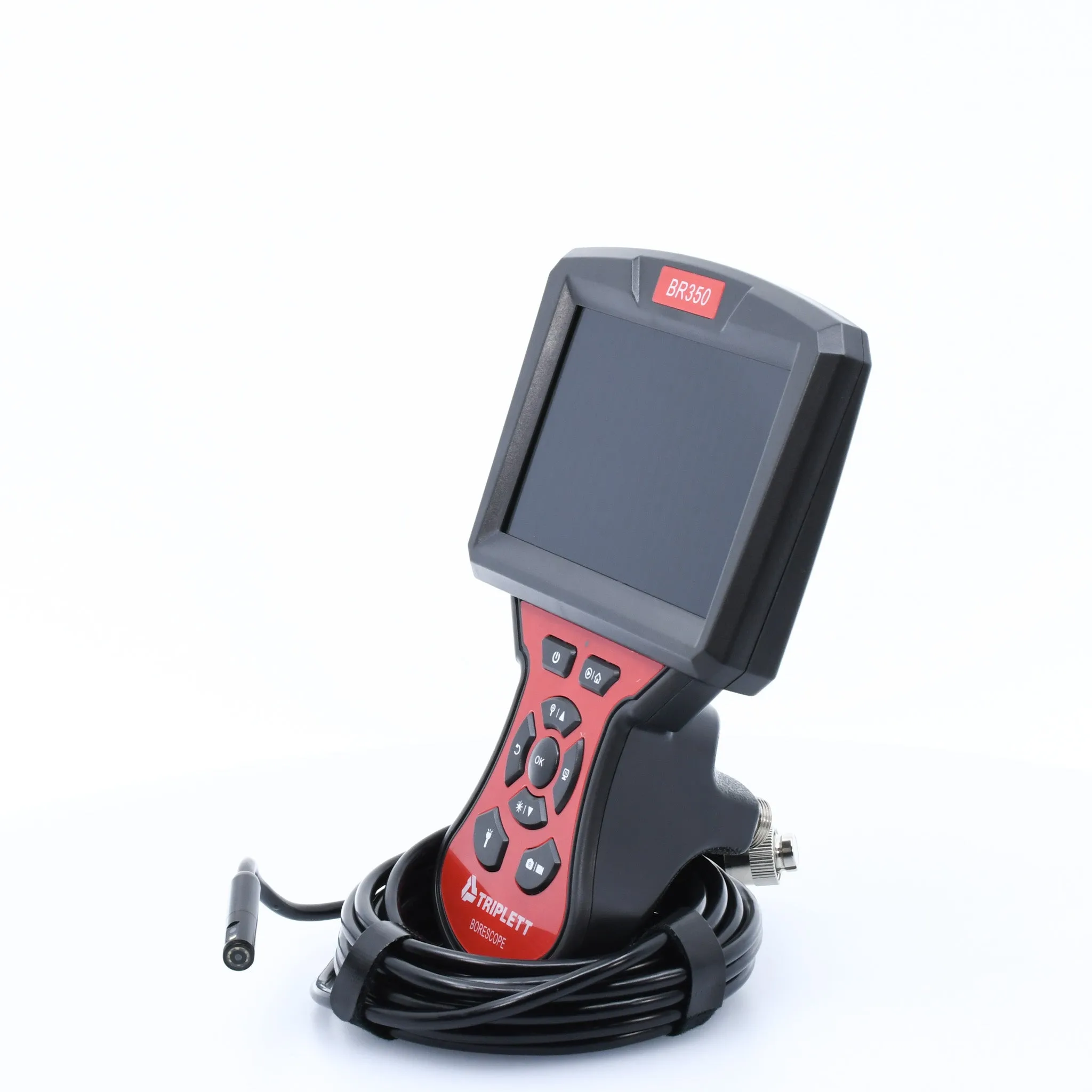

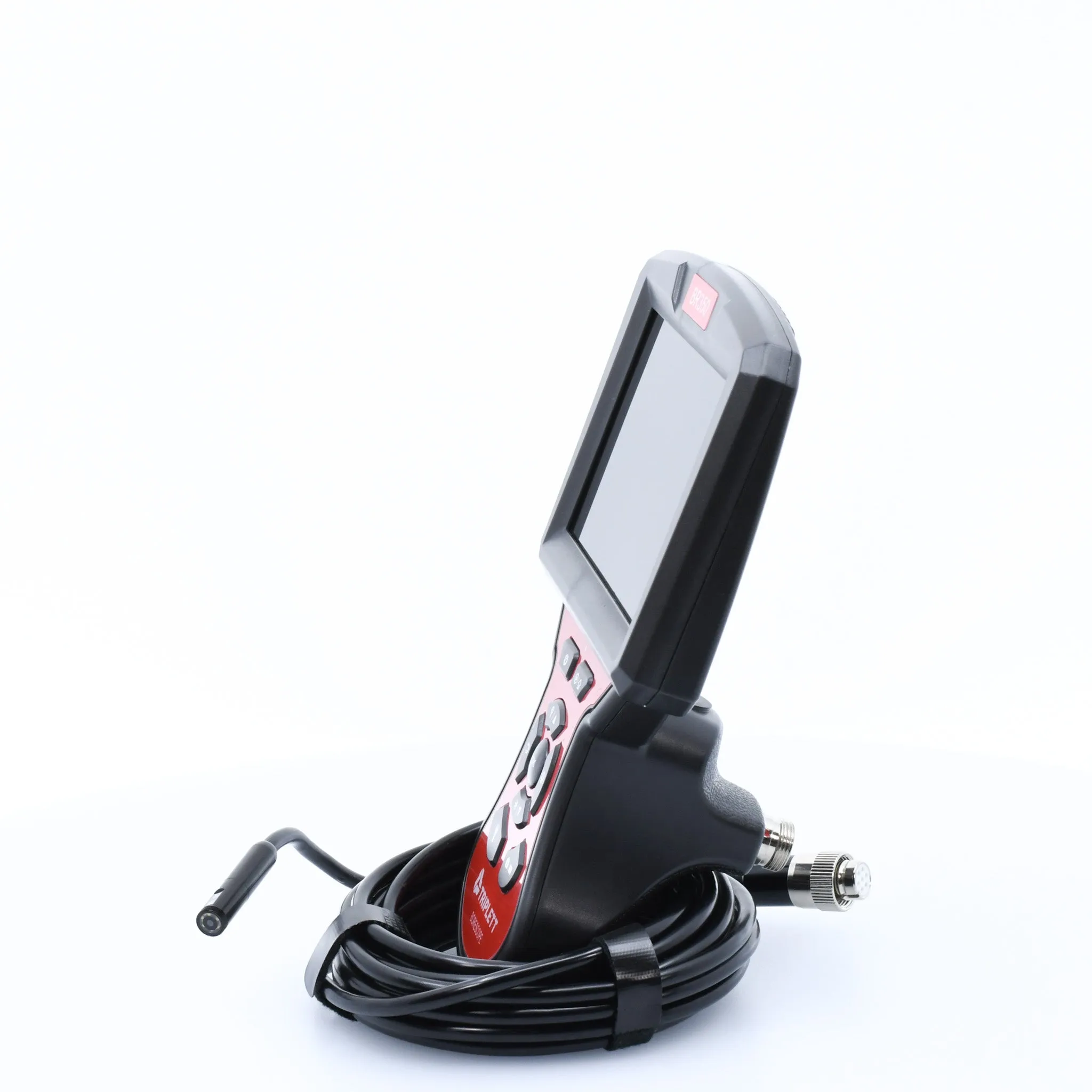

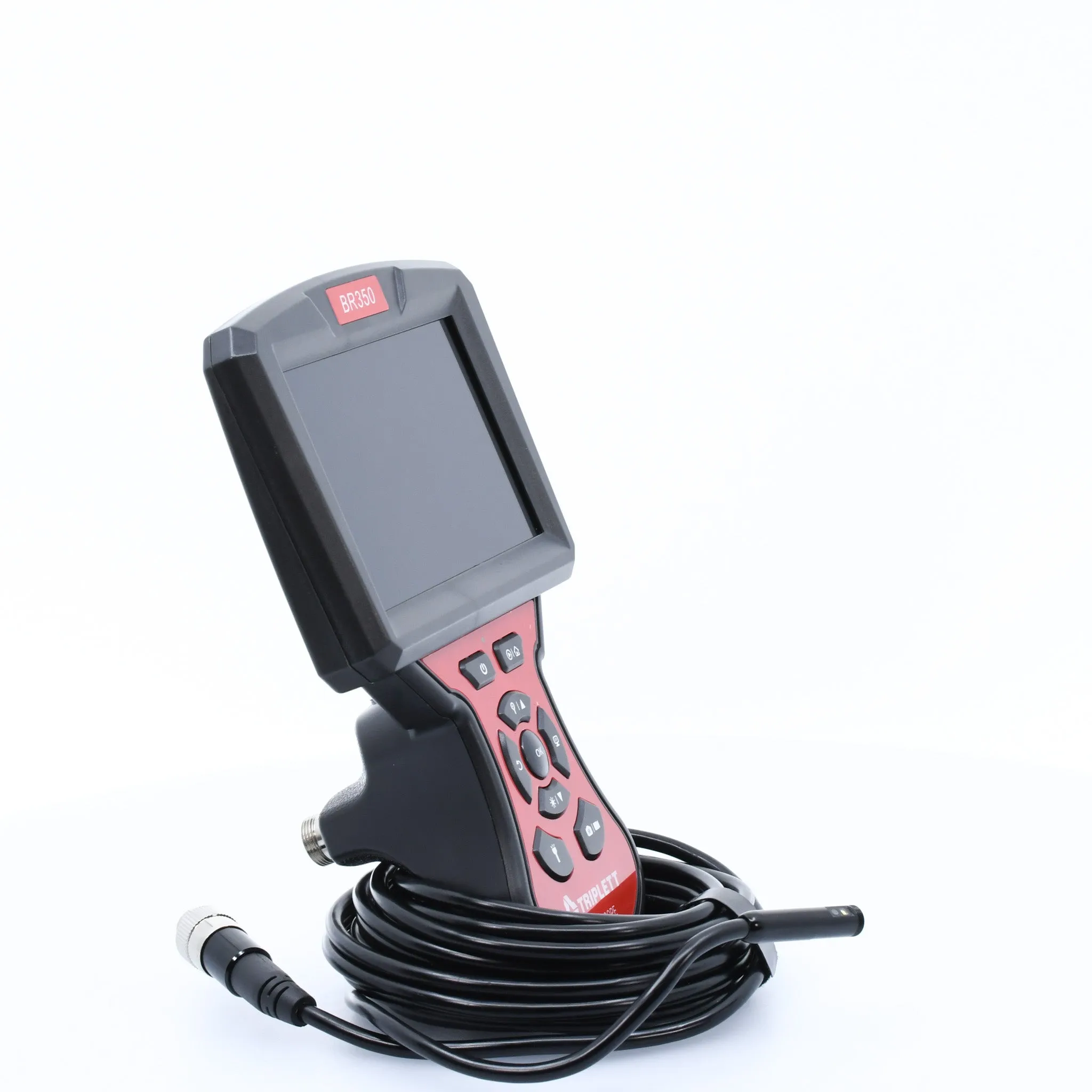

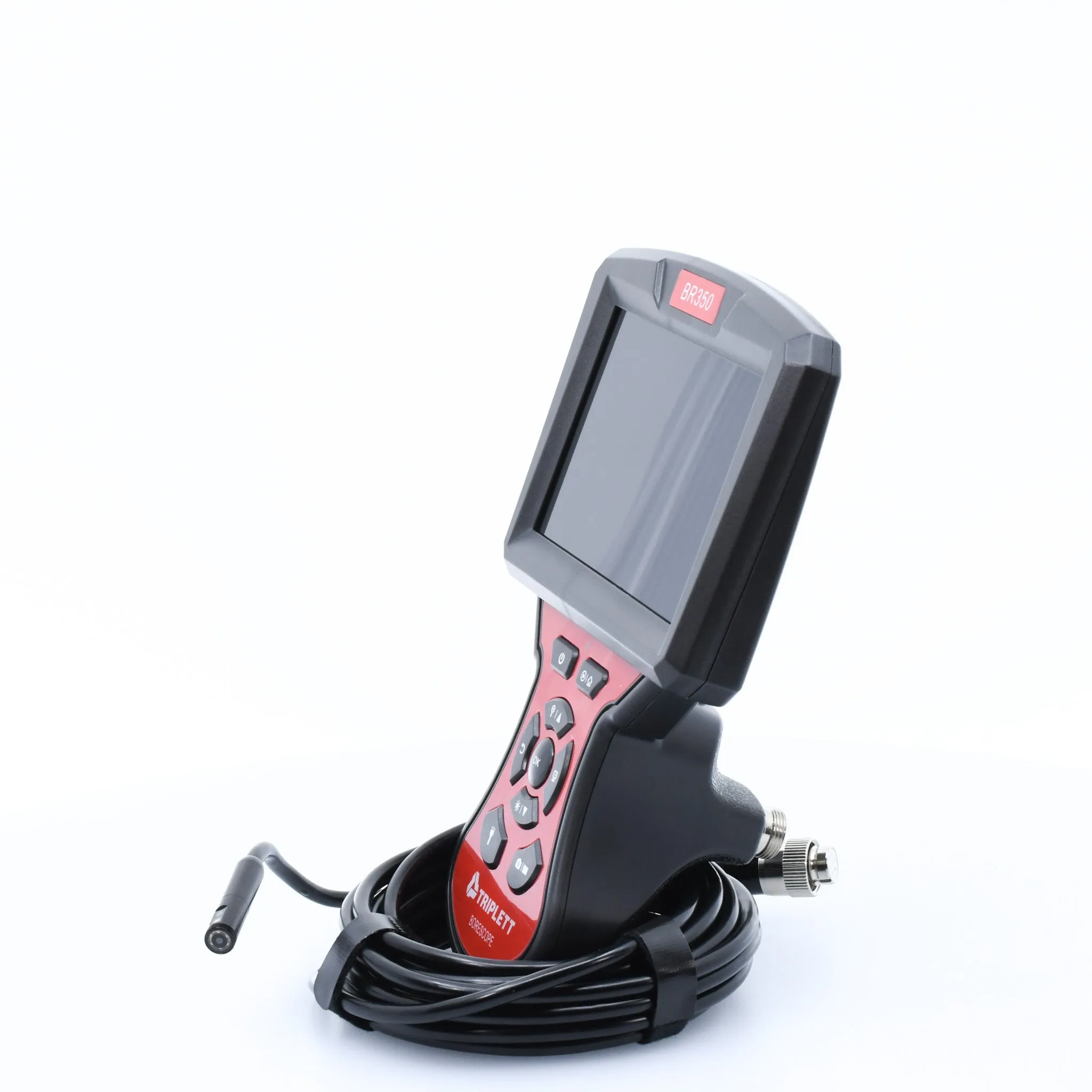

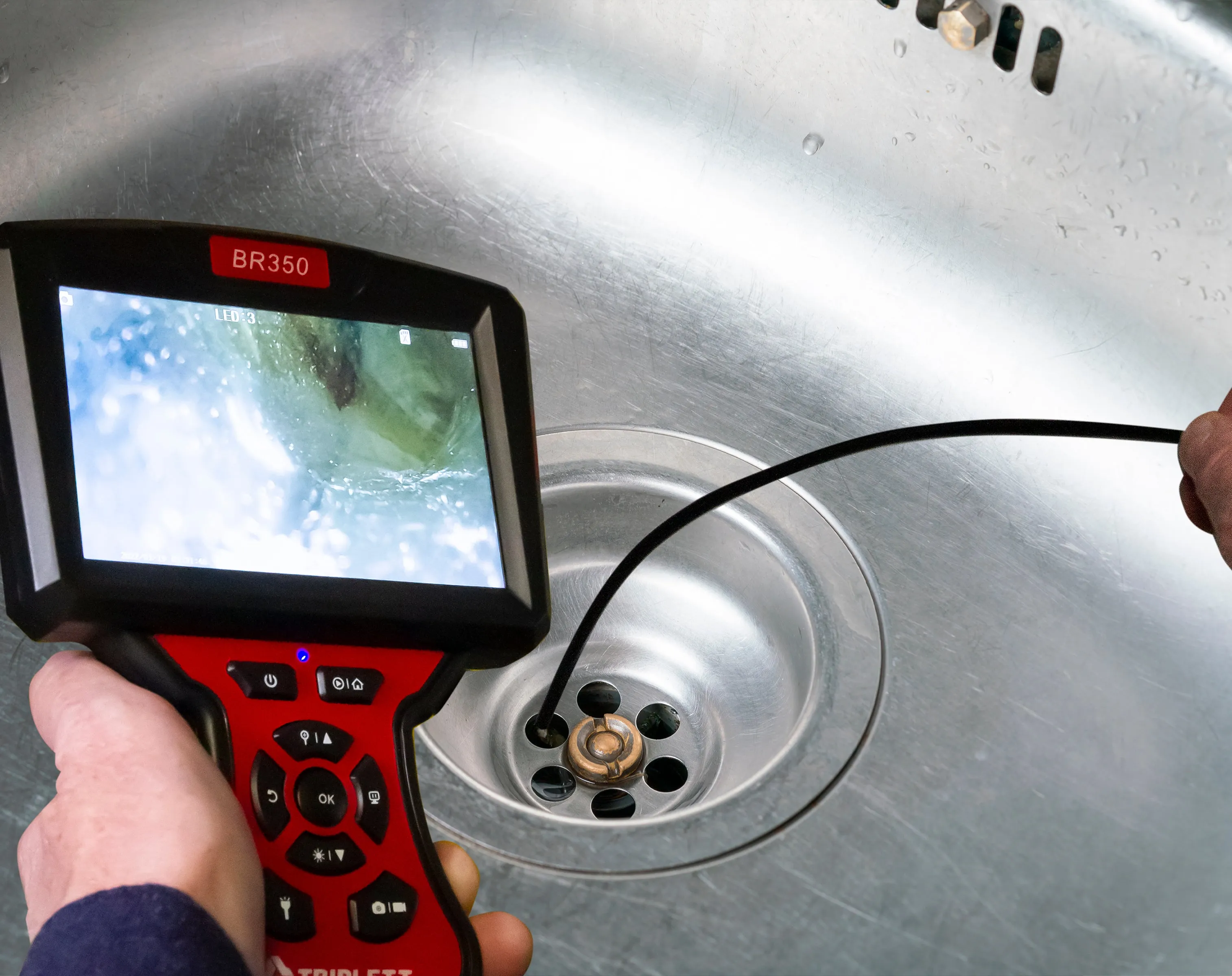

The Triplett BR350 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation.
DESCRIPTION

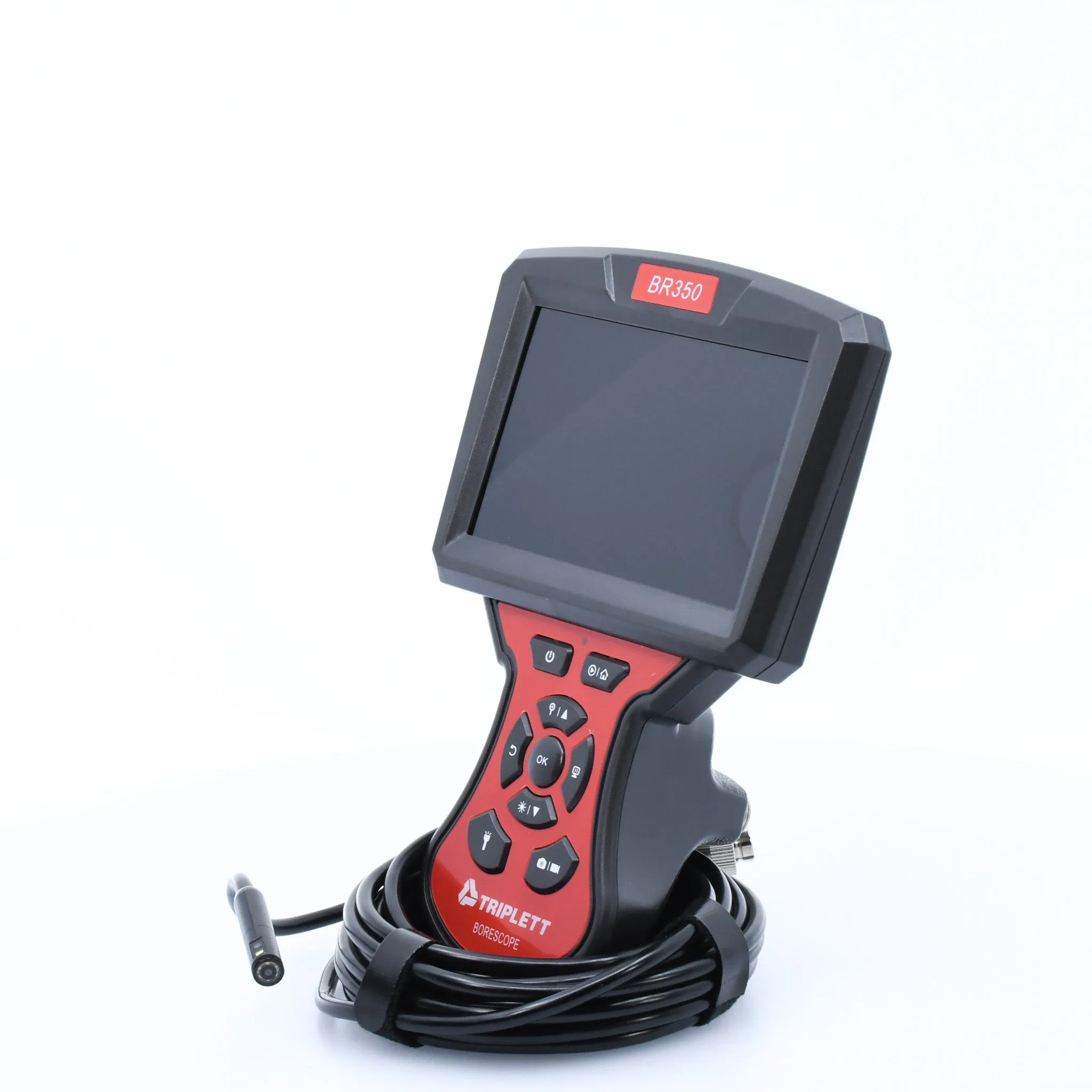

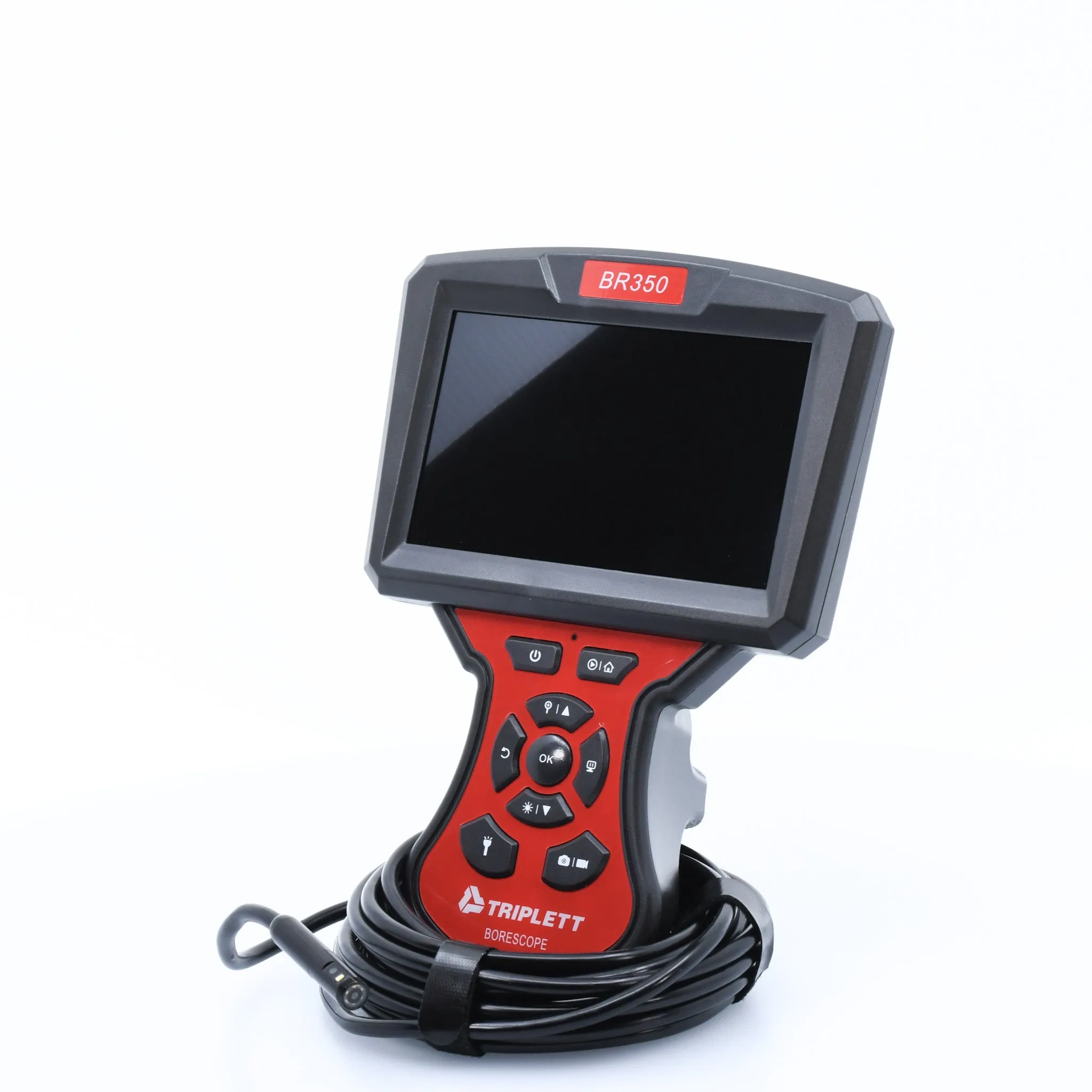

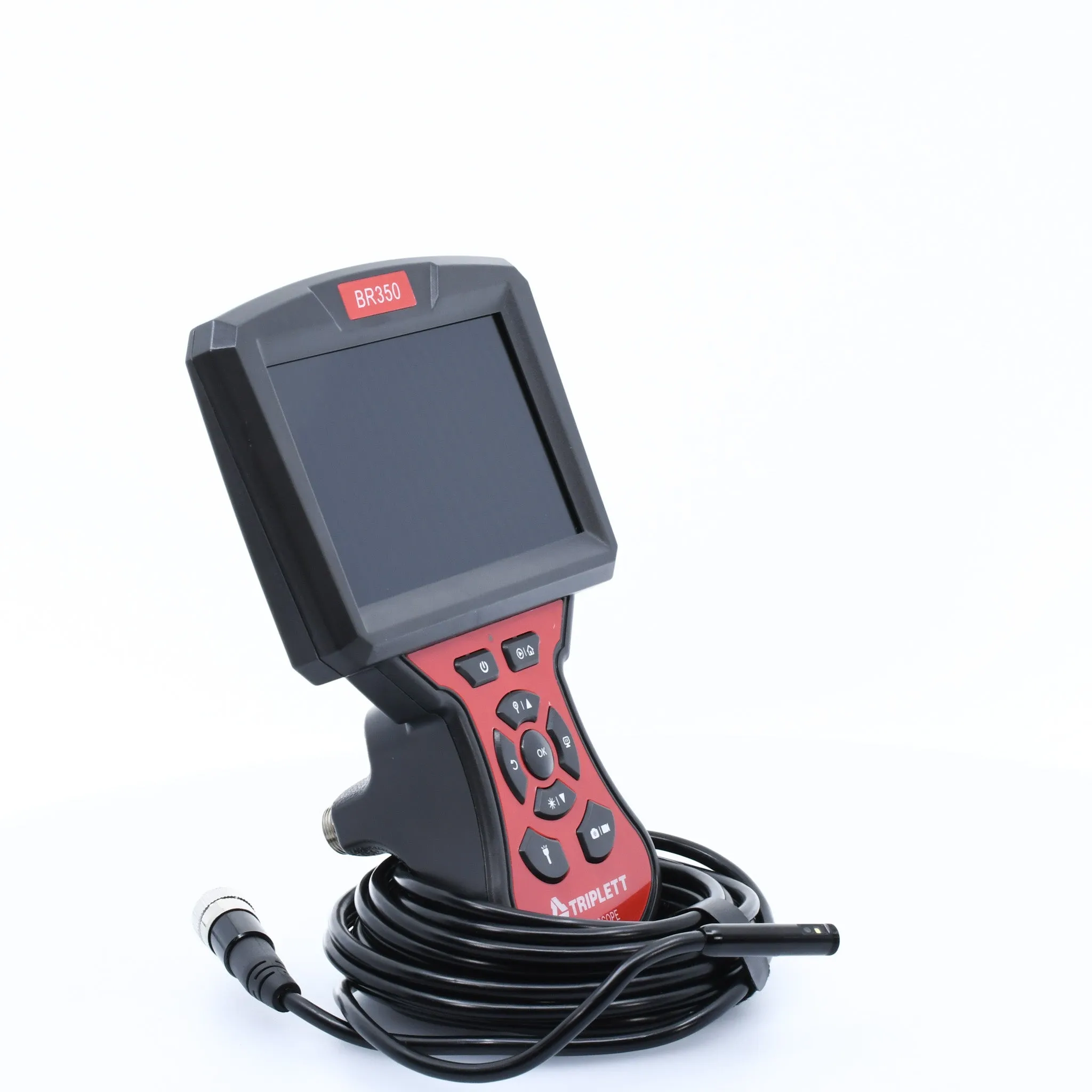

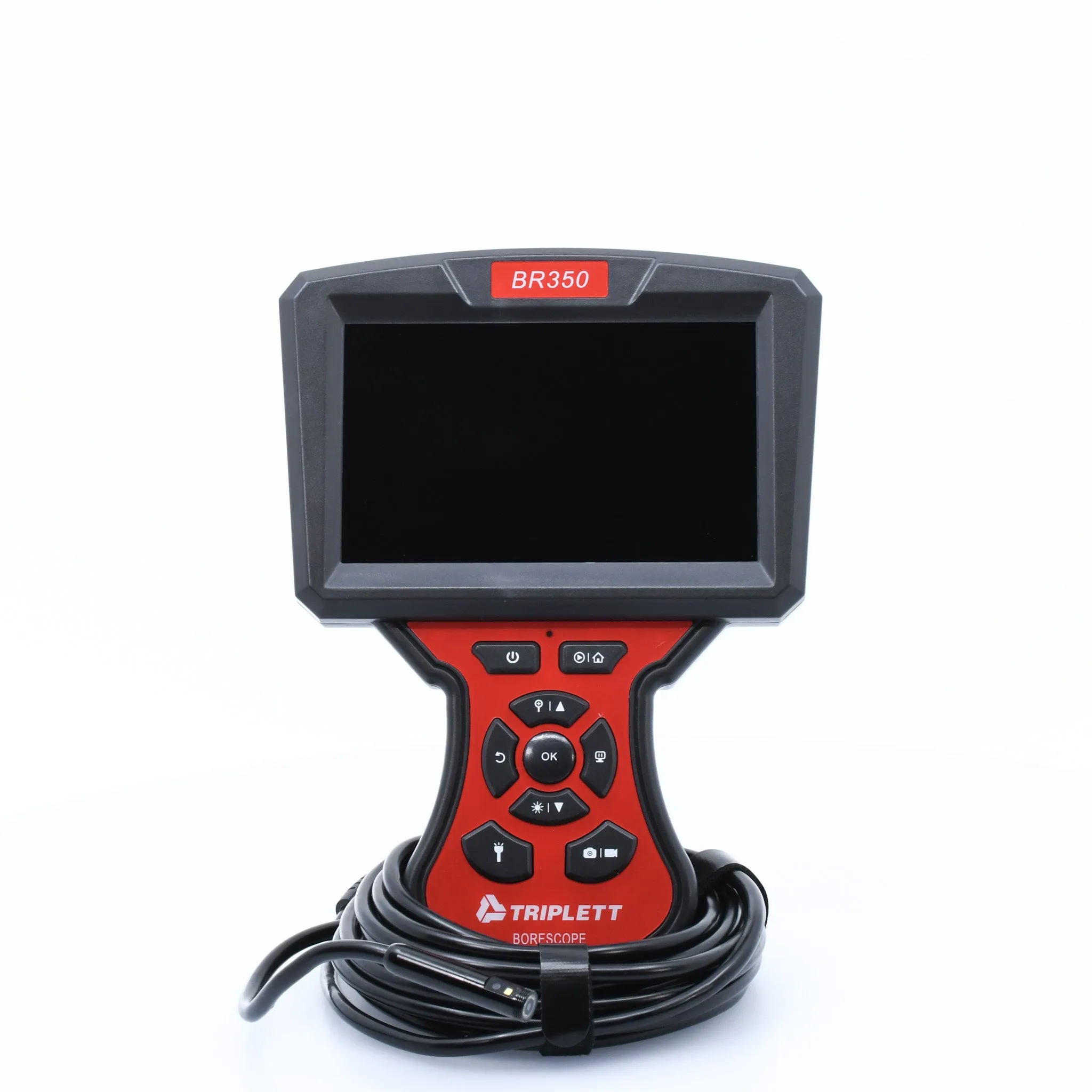

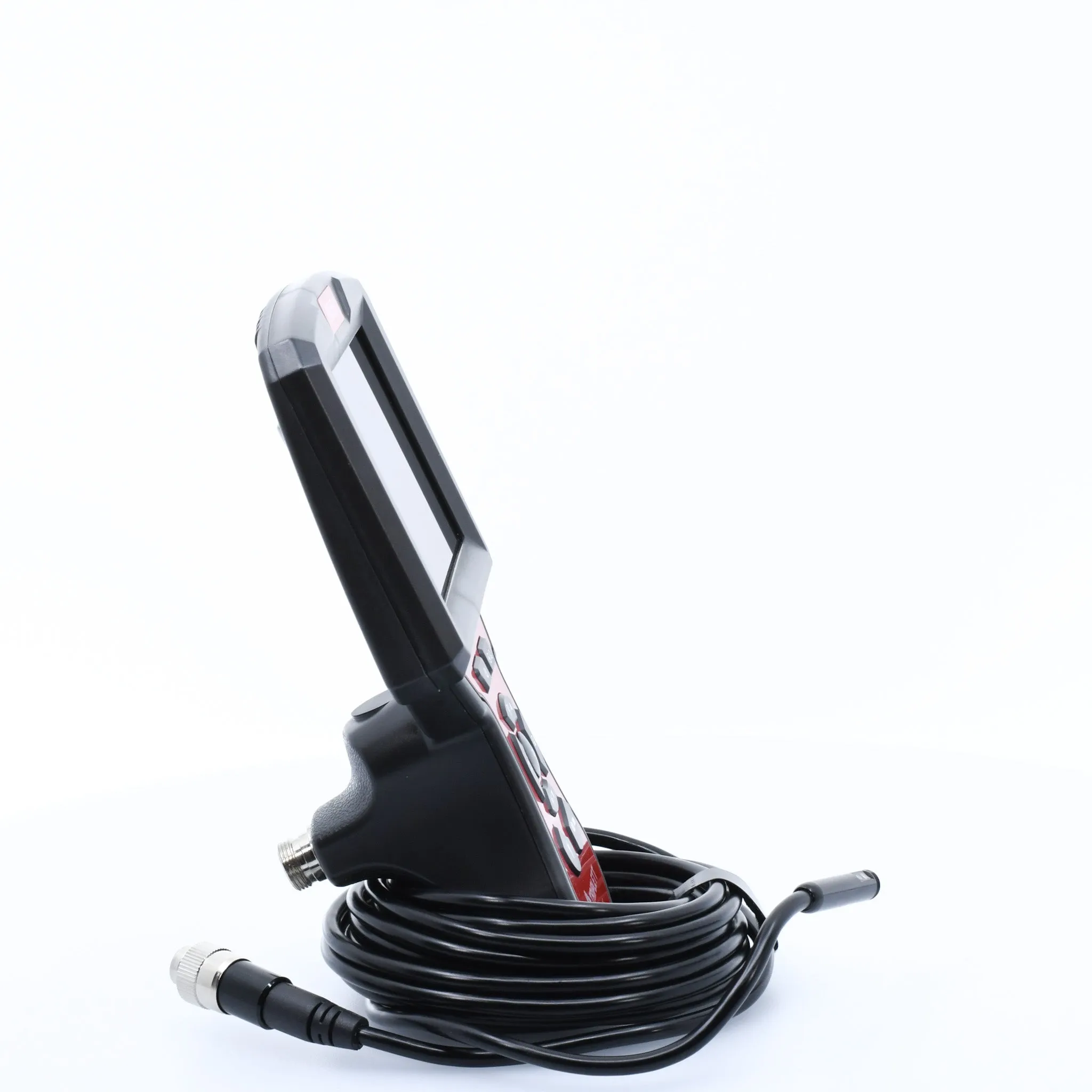

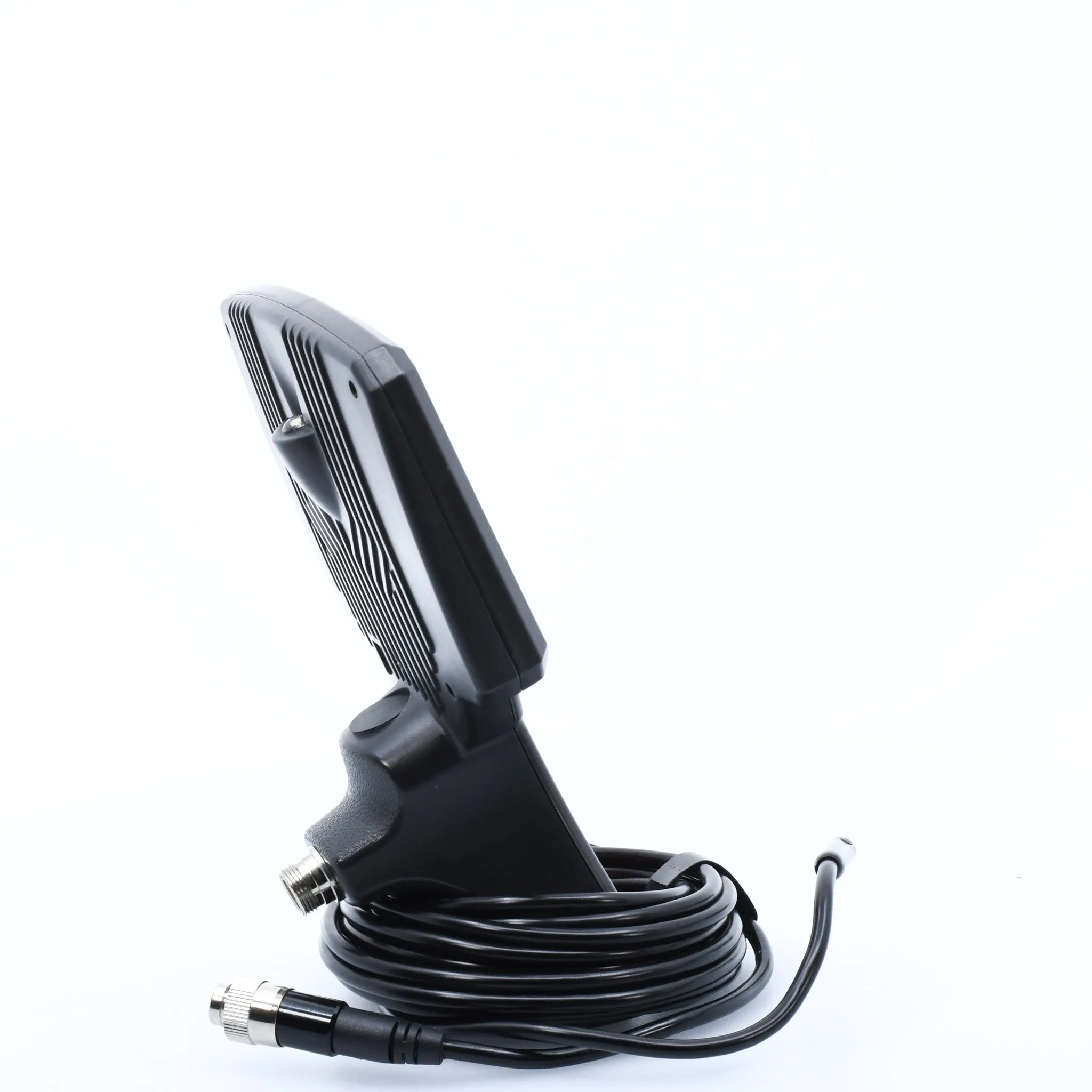

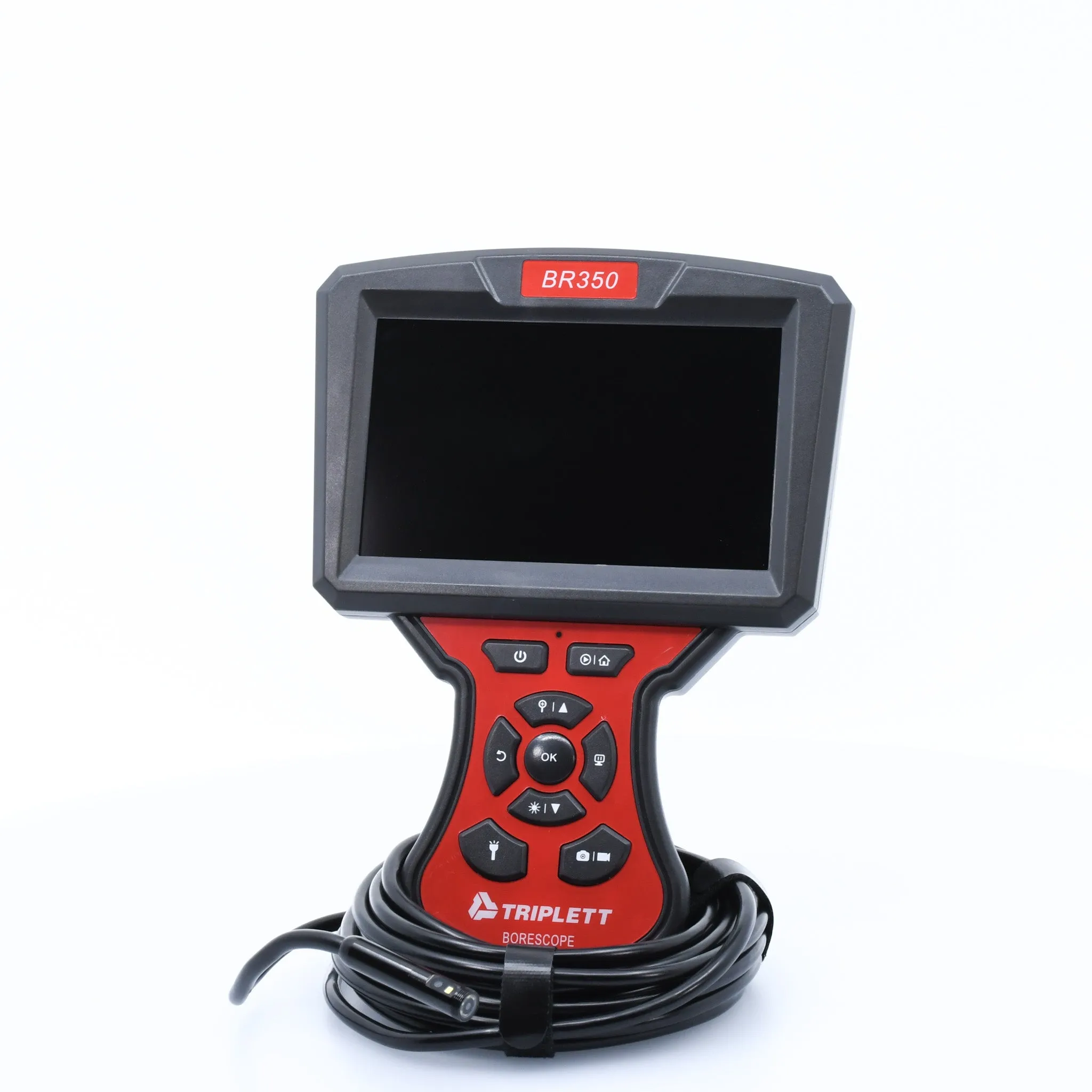

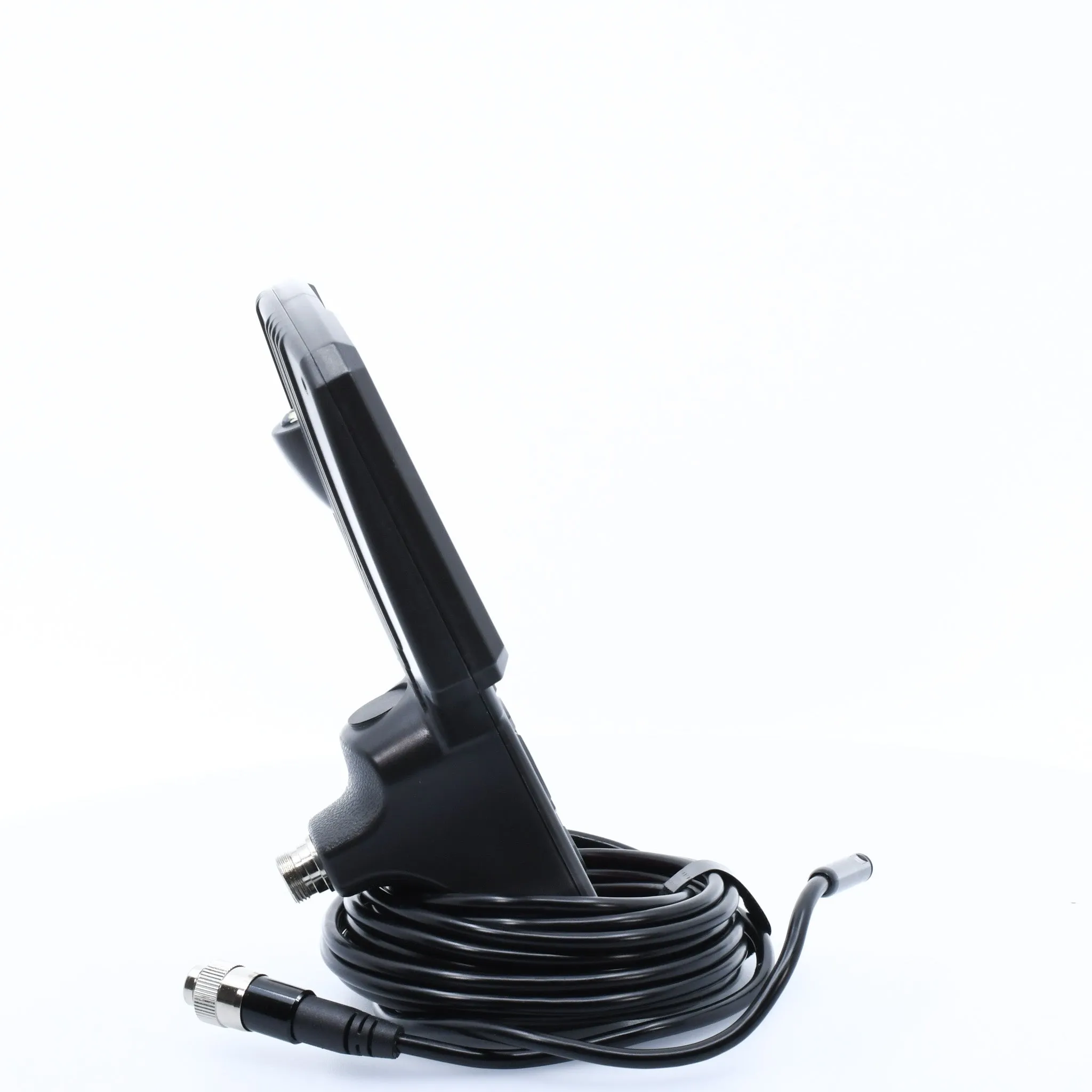

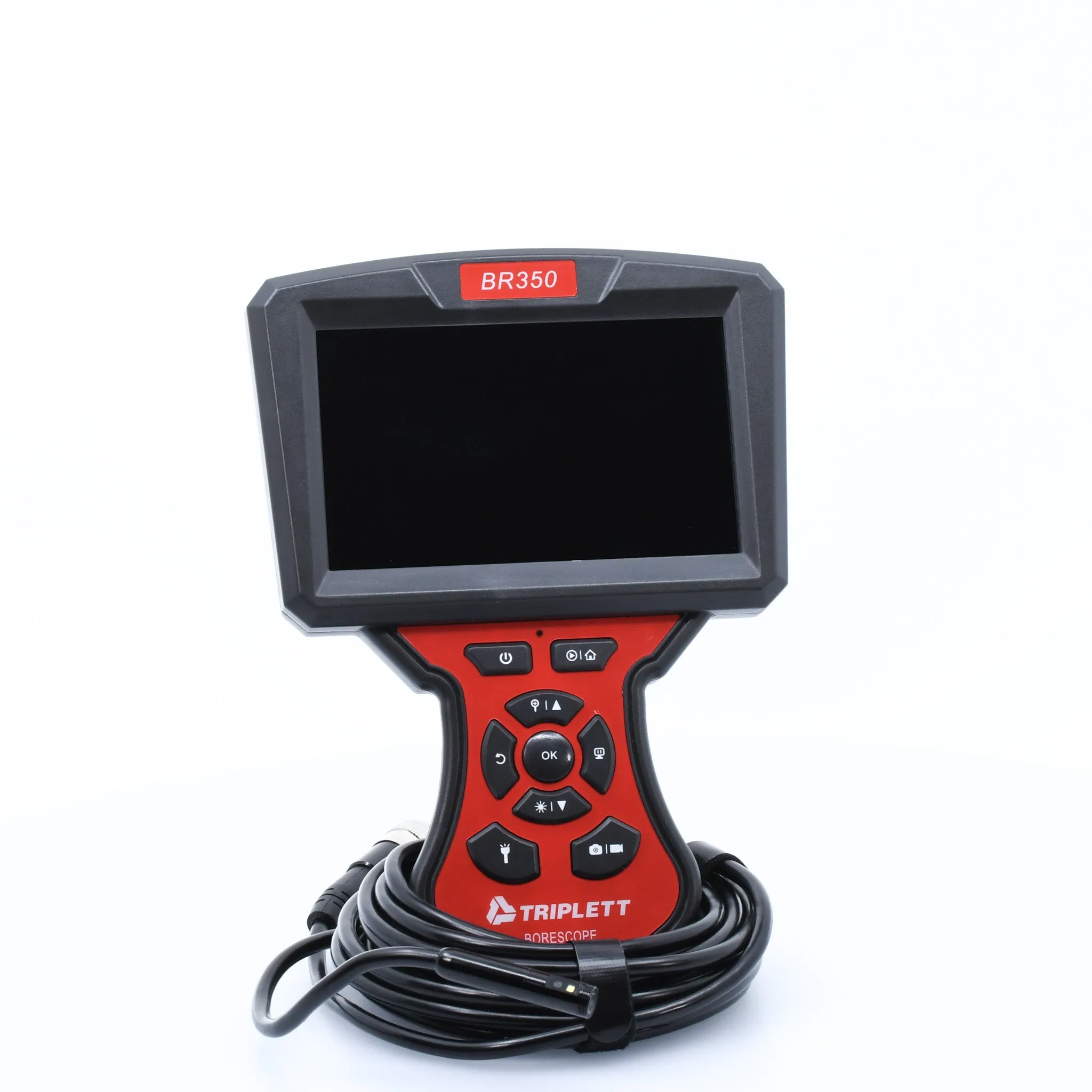

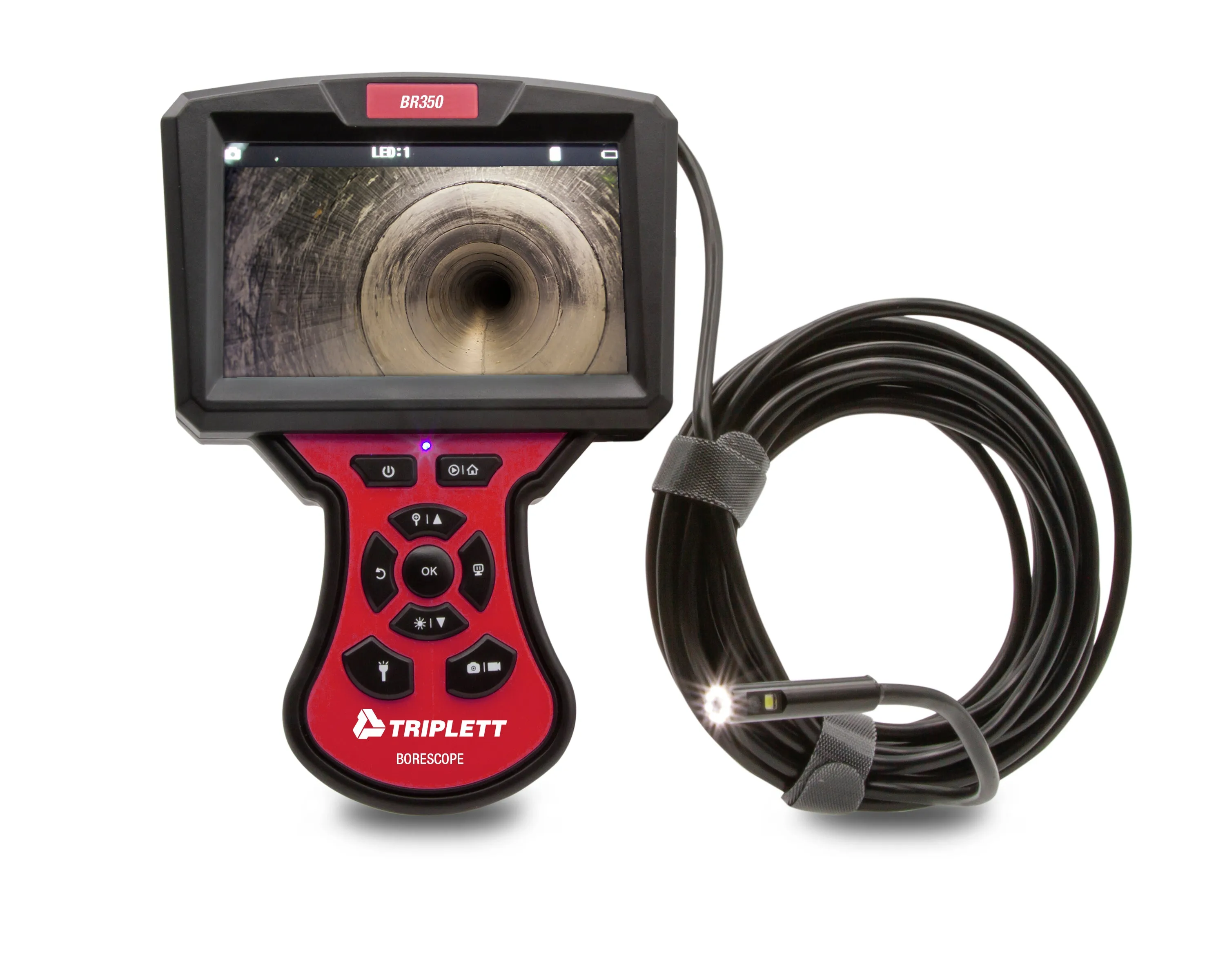

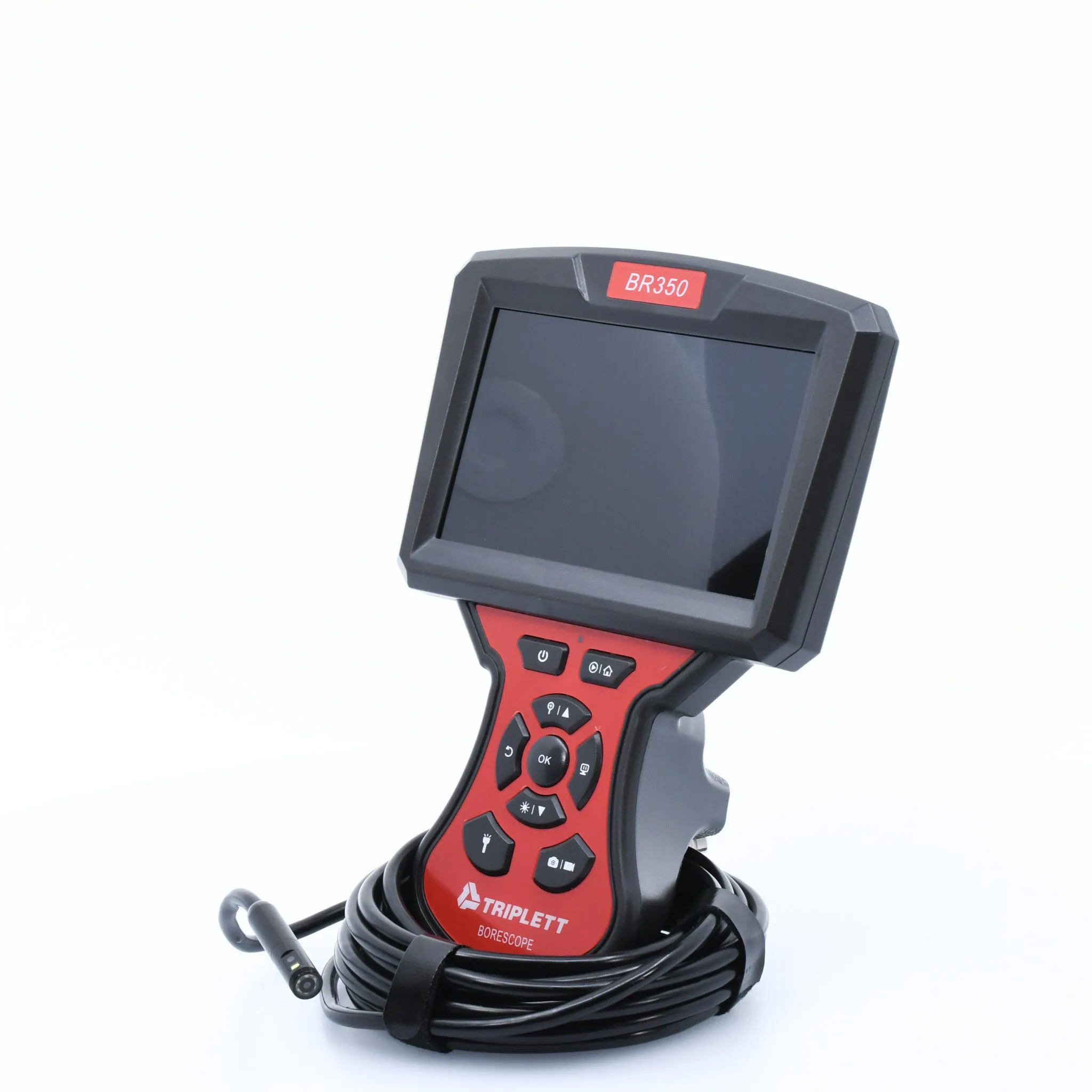

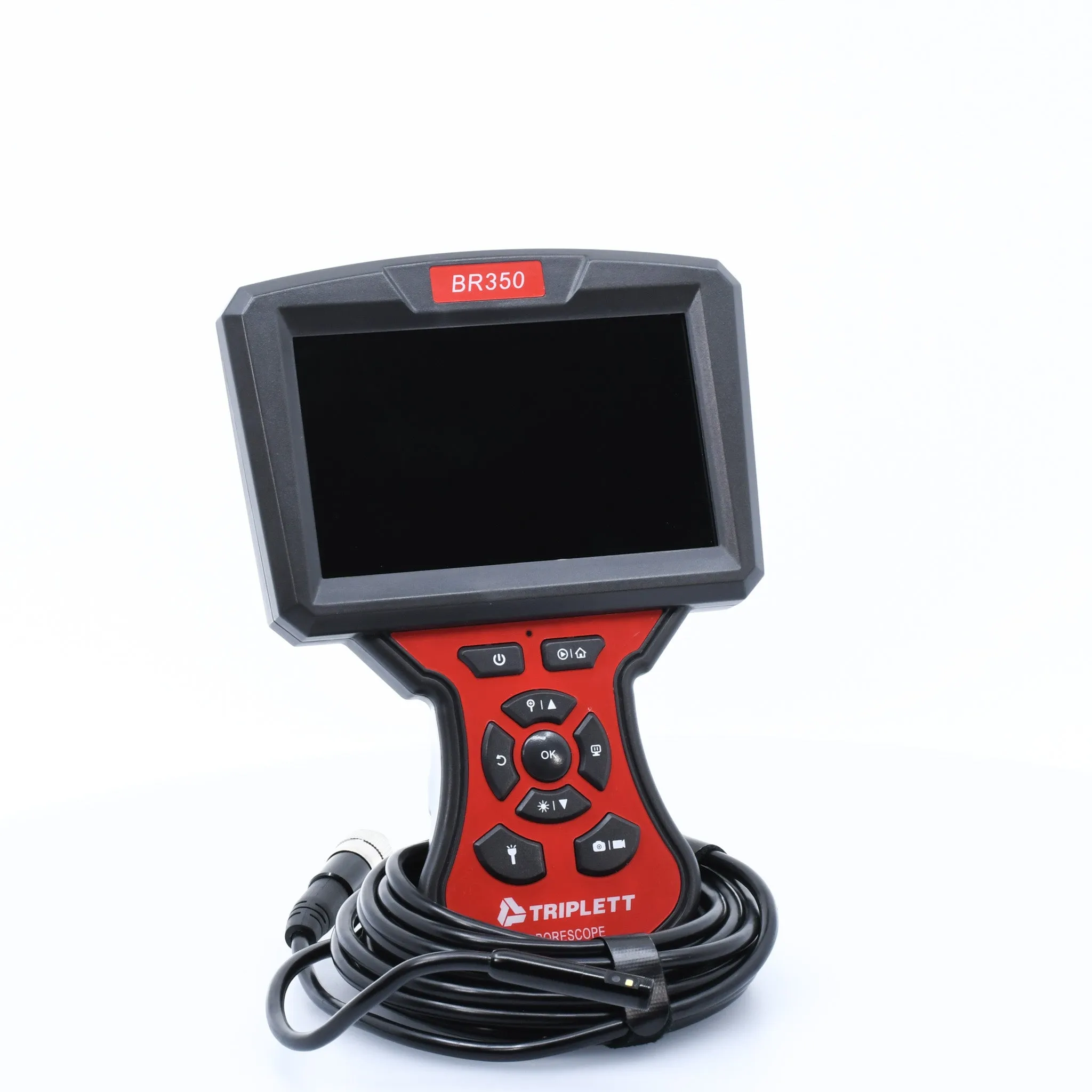

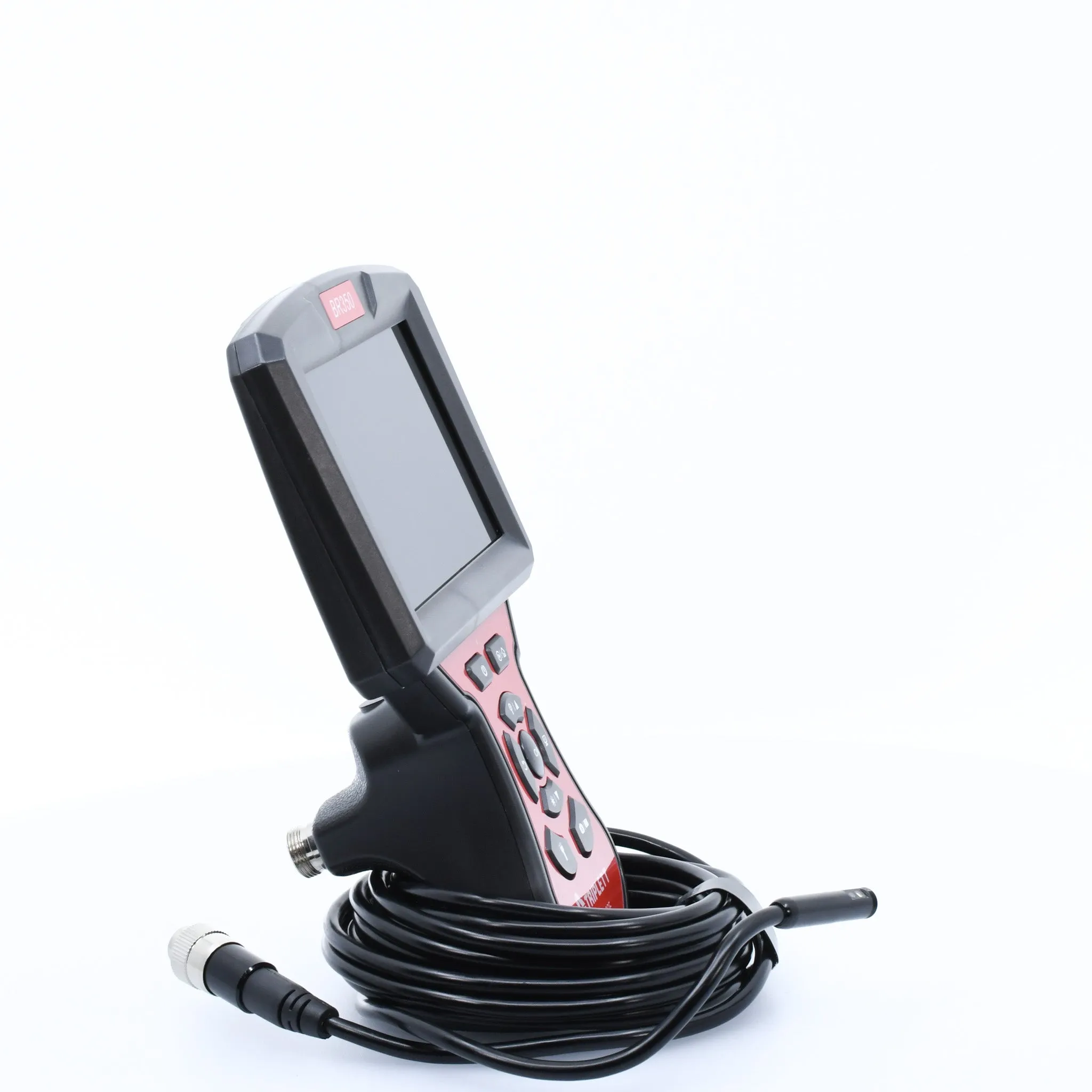

The Triplett BR350 High Definition Videoscope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has dual 5.5mm waterproof (IP67) cameras with 8 adjustable LEDs with 3 brightness levels and a built-in auxilliary light illuminates darkened work areas for inspection. It features a 5" Color LCD monitor with 1920 x 1080 resolution, 3X zoom, and 180° screen view rotation. The BR350 has a built-in clock/calendar and can record video (.AVI) and images (.JPG) with a freeze function during live viewing. You can view captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max). The BR350 can store up to 4k images on the included 4GB microSD card and supports 8 languages (English, French, German, Italian, Russian, Japanese, and Chinese). It comes complete with Videoscope, dual 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook).
CATEGORY:

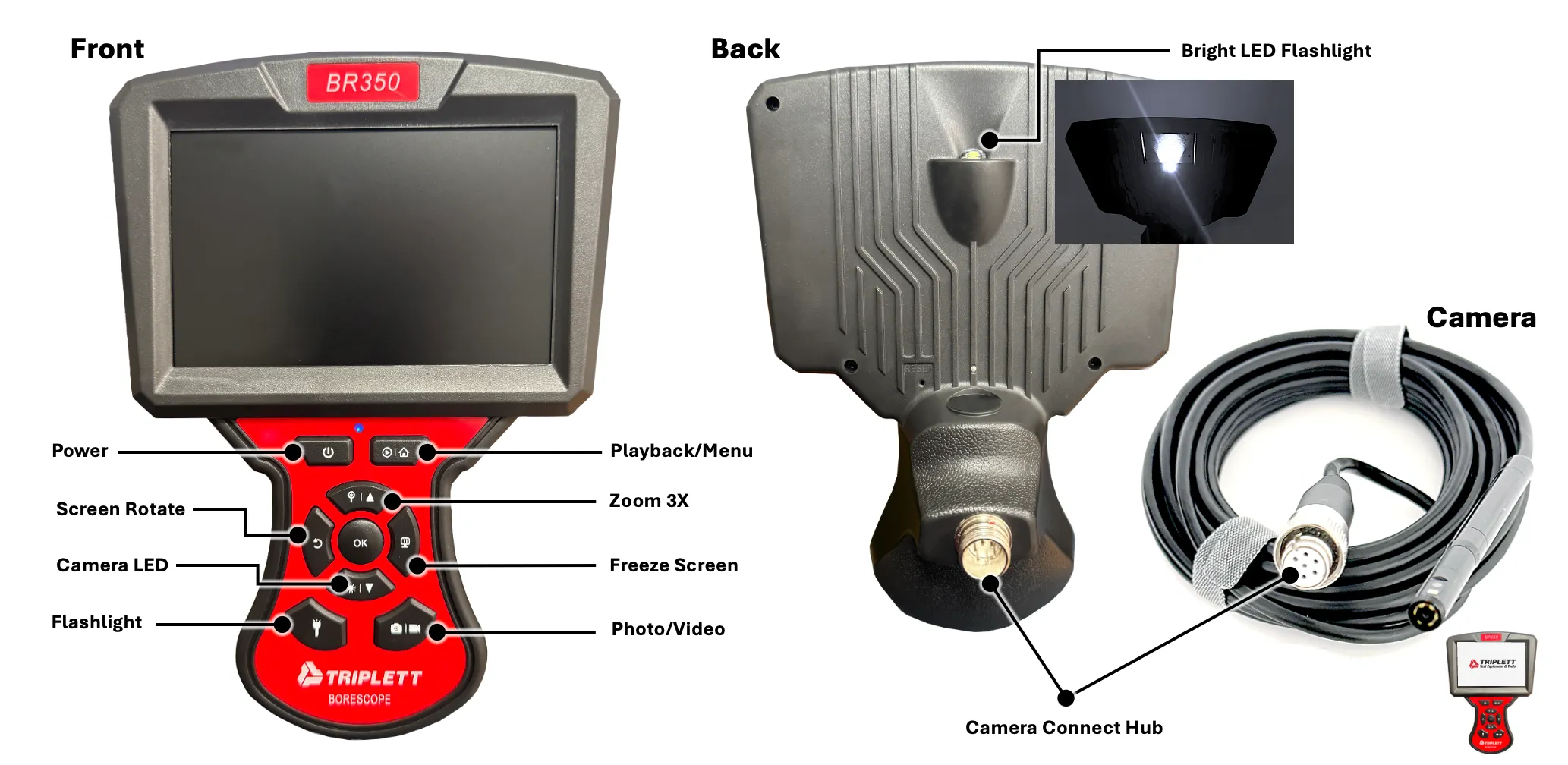

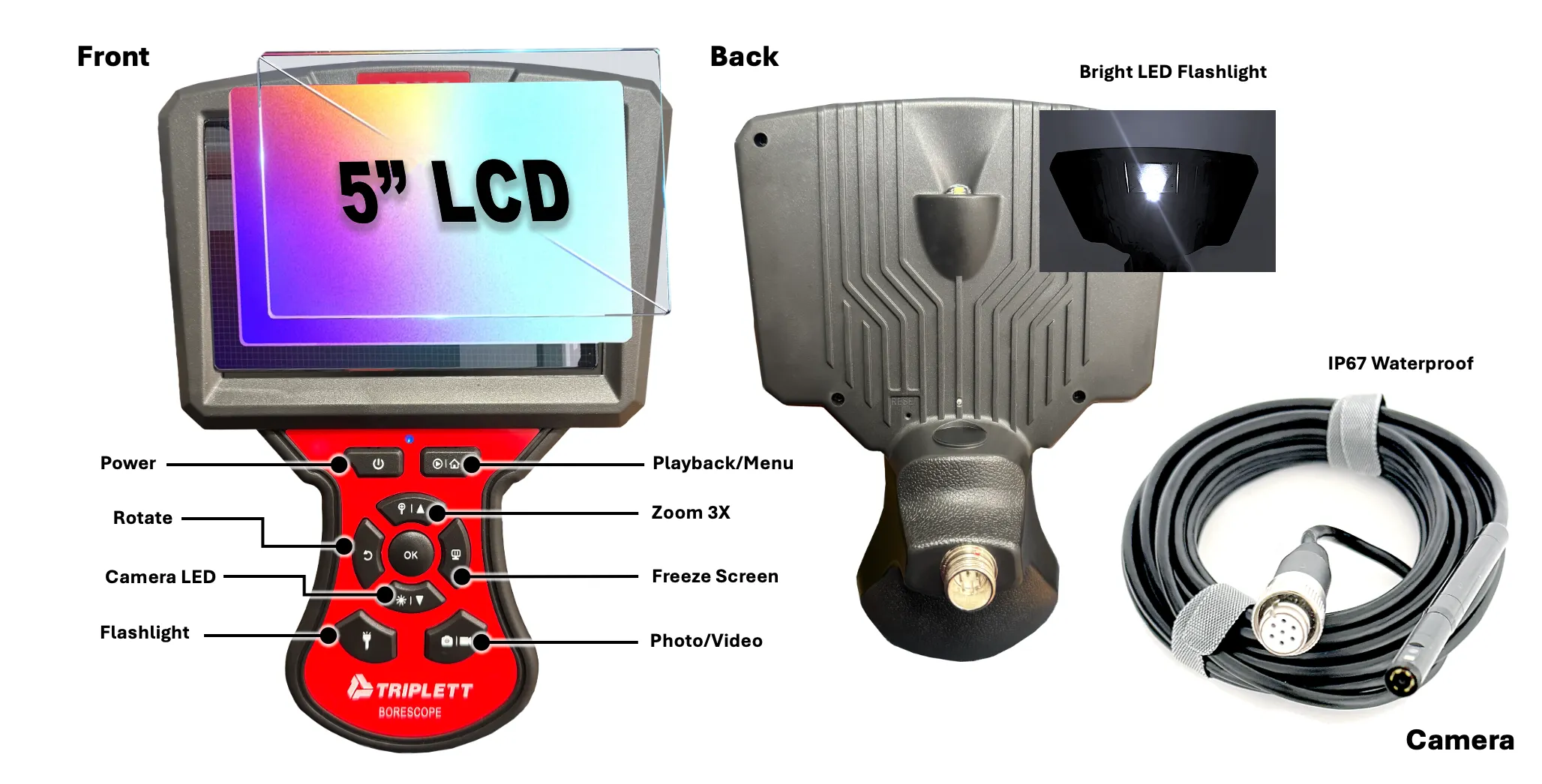

Features
- Dual waterproof (IP67) 5.5mm cameras
- 5" Color LCD monitor with 1920 x 1080 resolution

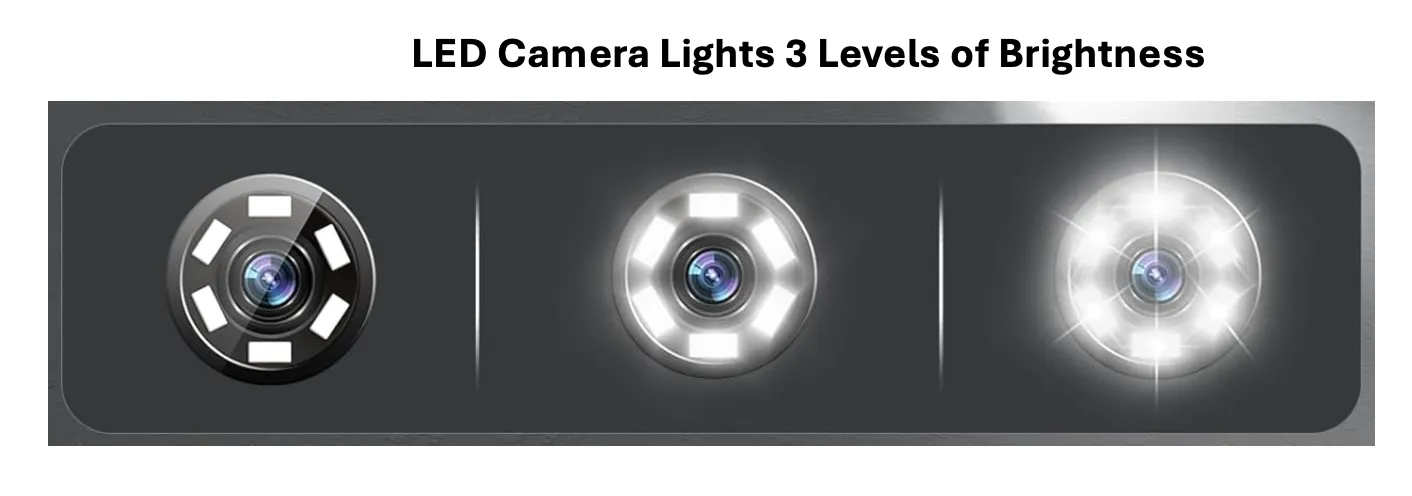

- 8 adjustable LEDs with 3 brightness levels

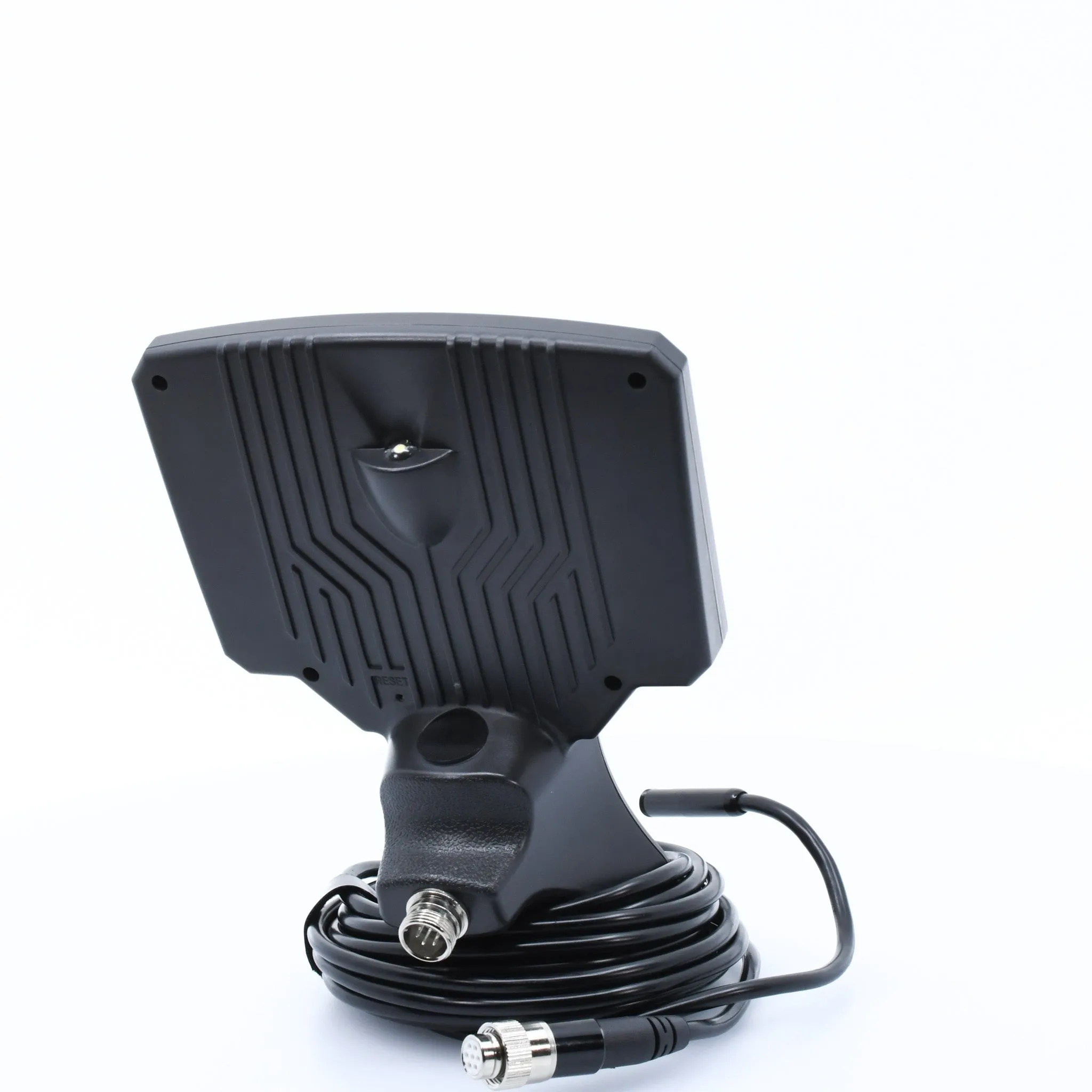

- Built-in auxiliary light illuminates darkened work areas for inspection
- Screen view rotates 180°
- 3X zoom
- Built-in clock/calendar

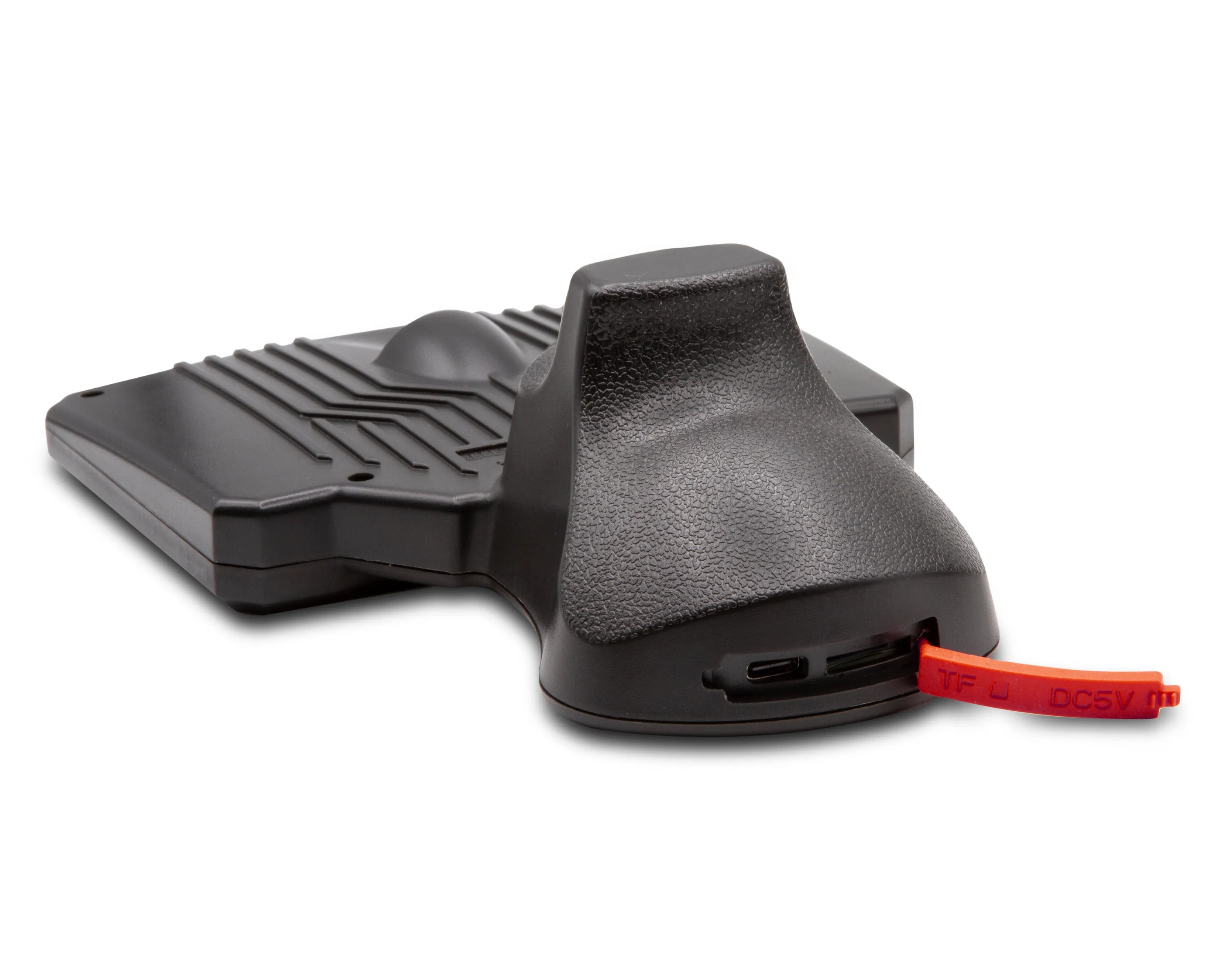

- View captured video/images on the display or transfer to your PC using the USB interface or removable microSD card (64GB max)
- Store up to 4k images on the included 4GB microSD card
- Freeze function during live viewing

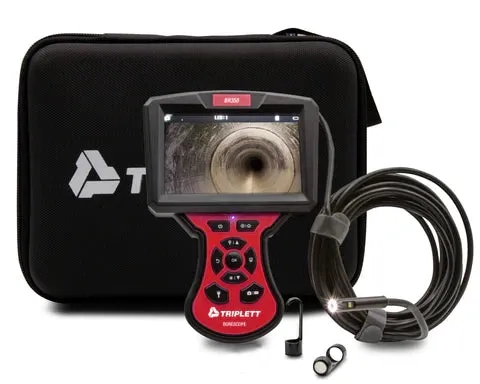

- Includes dual 5.5mm camera probe with 5m cable, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook)
Specifications
| Camera | Single (Forward View) | Dual (Forward and Side View) |
| Diameter | 5.5mm | 5.5mm |
| Field of View | 60° | 60° |
| Depth of View | 1.6" (4cm) | 1.6" (4cm) |
| Resolution | 1920 x 1080 | 1920 x 1080 |
| Display Unit | ||
| Display | 5" Color (1920 x 1080) | 5" Color (1920 x 1080) |
| Image Zoom | 3X | 3X |
| Video Output Format | NTSC or PAL | NTSC or PAL |
| Storage | 4G microSD Card included (up to 64GB max) |
4G microSD Card included (up to 64GB max) |
| Still Image Format | JPEG (1920 x 1080) | JPEG (1920 x 1080) |
| Video Recording Format | AVI (1920 x 1080) | AVI (1920 x 1080) |
| Interface | USB | USB |
| Power | 5V Li-Po Battery | 5V Li-Po Battery |
| Dimensions | 8.5 x 4.5 x 1.5” (216 x 114 x 38.1mm) |
8.5 x 4.5 x 1.5” (216 x 114 x 38.1mm) |
| Weight | 0.9lbs (0.4kg) | 0.9lbs (0.4kg) |
Downloads
FAQs
-
Q. Would the camera on these be resistant to jet fuel? Could it be submerged in jet fuel without damaging the camera?
A. Yes, it can be used for inspection inside a jet engine (jet fuel) but the if the jet fuel temperature is under 10°C (50°F) then it won’t work for a very long time. Also, after finishing the inspection, We suggest you use some alcohol to clean the camera.
-

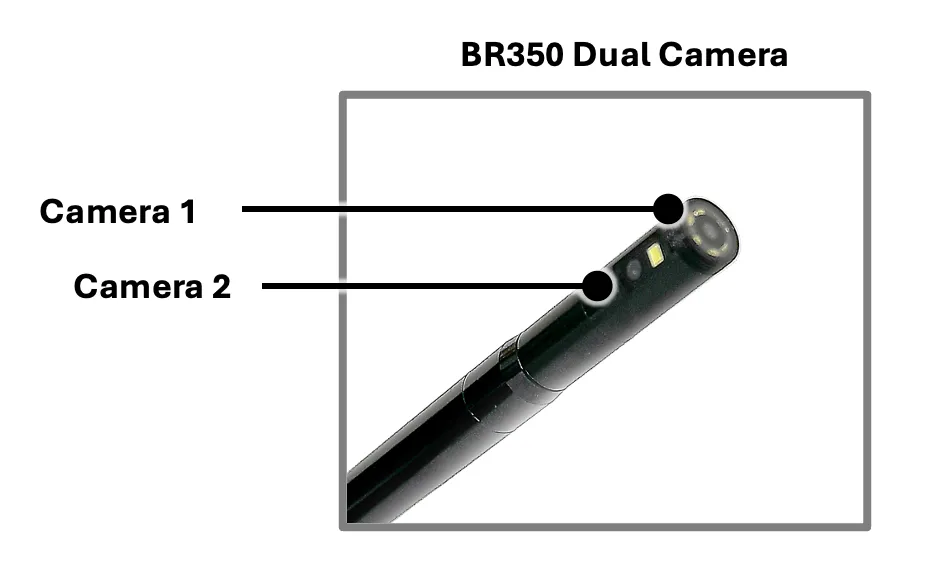

Q. How do I switch between Front facing camera to Side facing camera?
A. Just a short press of the "OK" button will switch forward to side and back and forth.
-
Q. What is a 5mm borescope?
A. In the context of the Borescope Inspection Camera with a dual camera, the term "5 mm" refers to the diameter of the borescope's probe or insertion tube. It means that the camera's lens and illumination system are housed in a slender, 5 mm wide tube, allowing it to access narrow and confined spaces.
