Name: Liquid Level Controller Sensor Module Water Level Detection Sensor
SKU: 2234285

Product Details ＋

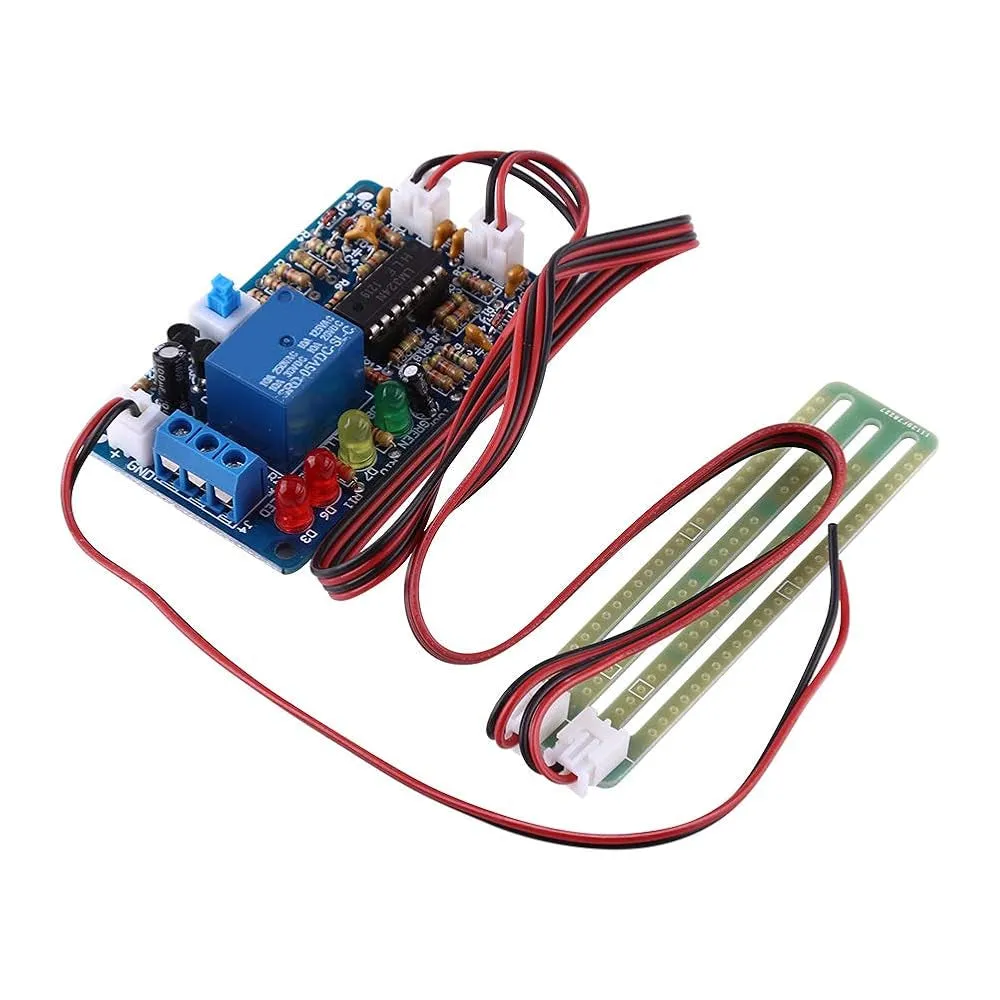

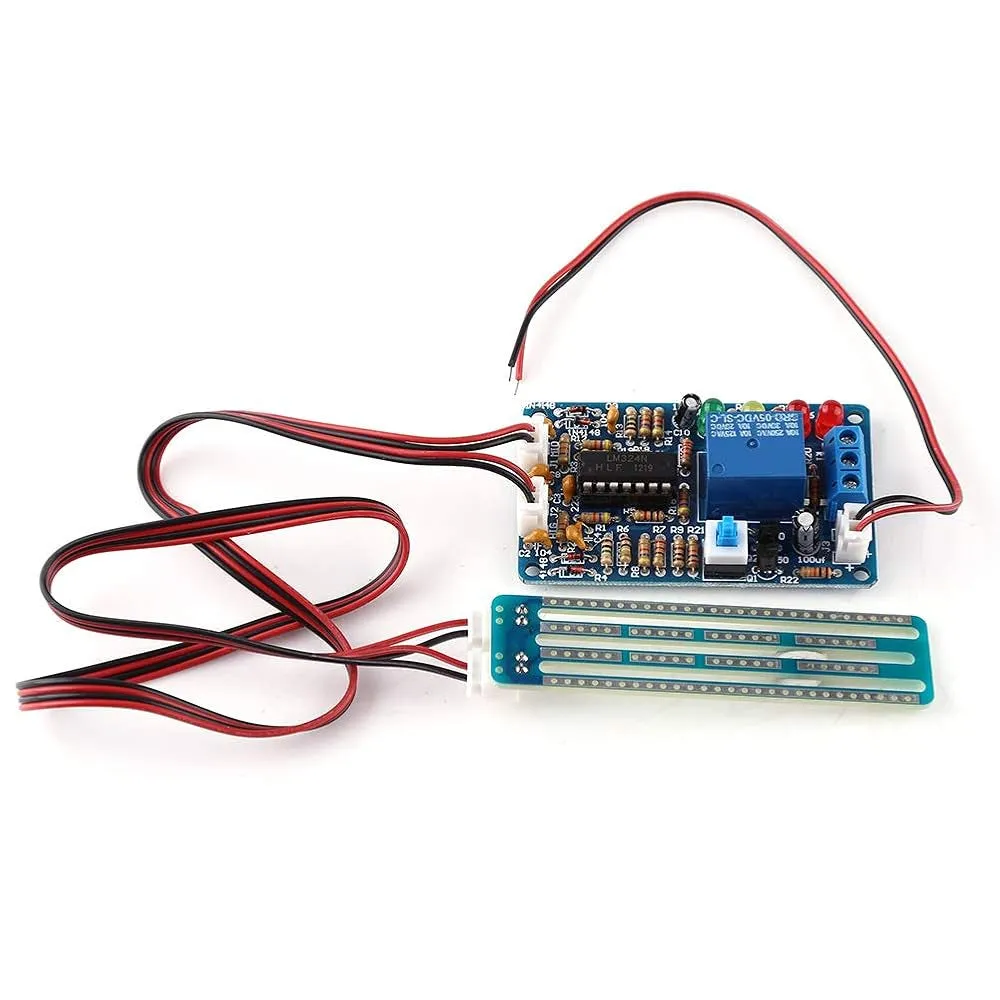

Liquid Level Controller Sensor Module Water Level Detection Sensor

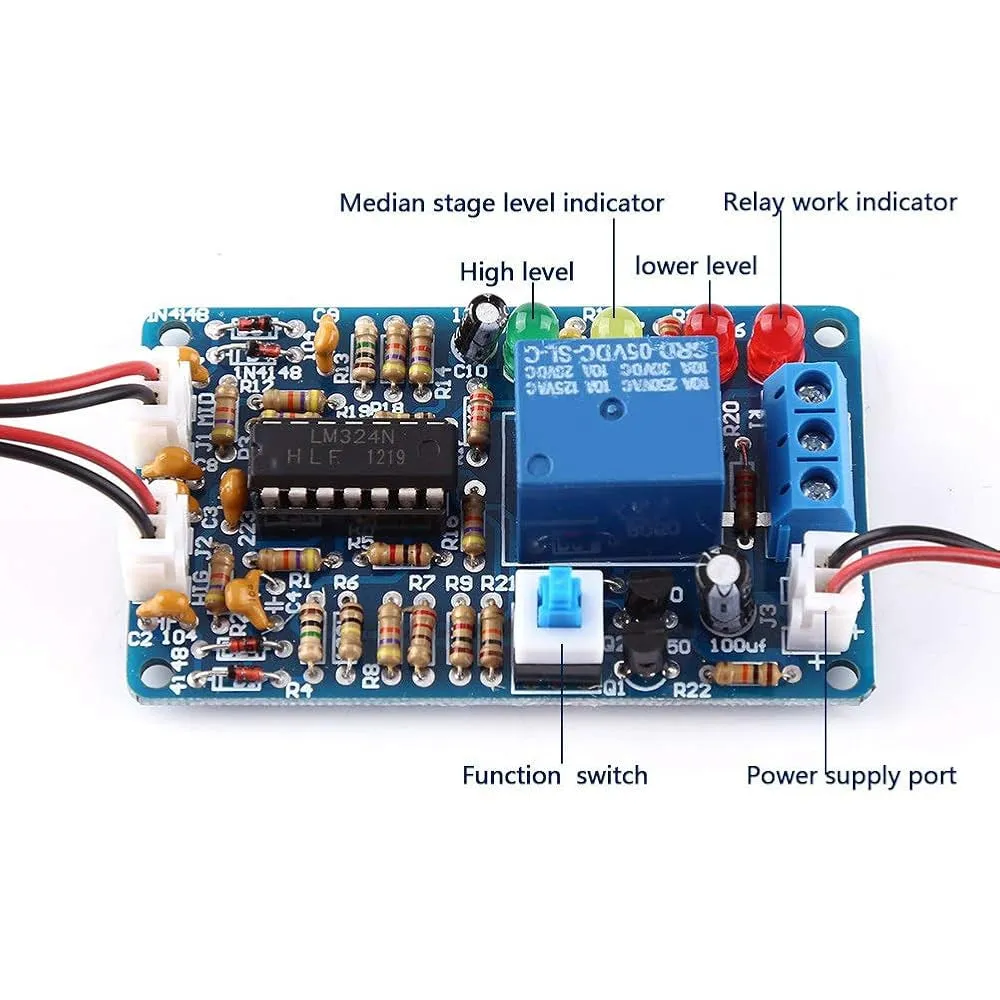

This system uses a three-color LED to indicate water levels: low (red), medium (yellow), and high (green). In the water pumping mode, when the low water relay is triggered, an external pump adds water until the water level reaches the high water relay, at which point the pump stops. The process repeats as the water level drops below the low water relay again. In drainage mode, when the function switch is pressed, the high water relay activates an external solenoid valve to drain water. Once the water level drops below the low water relay, the solenoid valve shuts off. The cycle continues as the water level rises and triggers the high water relay for drainage. This system maintains the water level between the low and high levels automatically, either by adding water or draining it.

Technical Details

Voltage: 5V
Relay Capacity: 10A / 250V

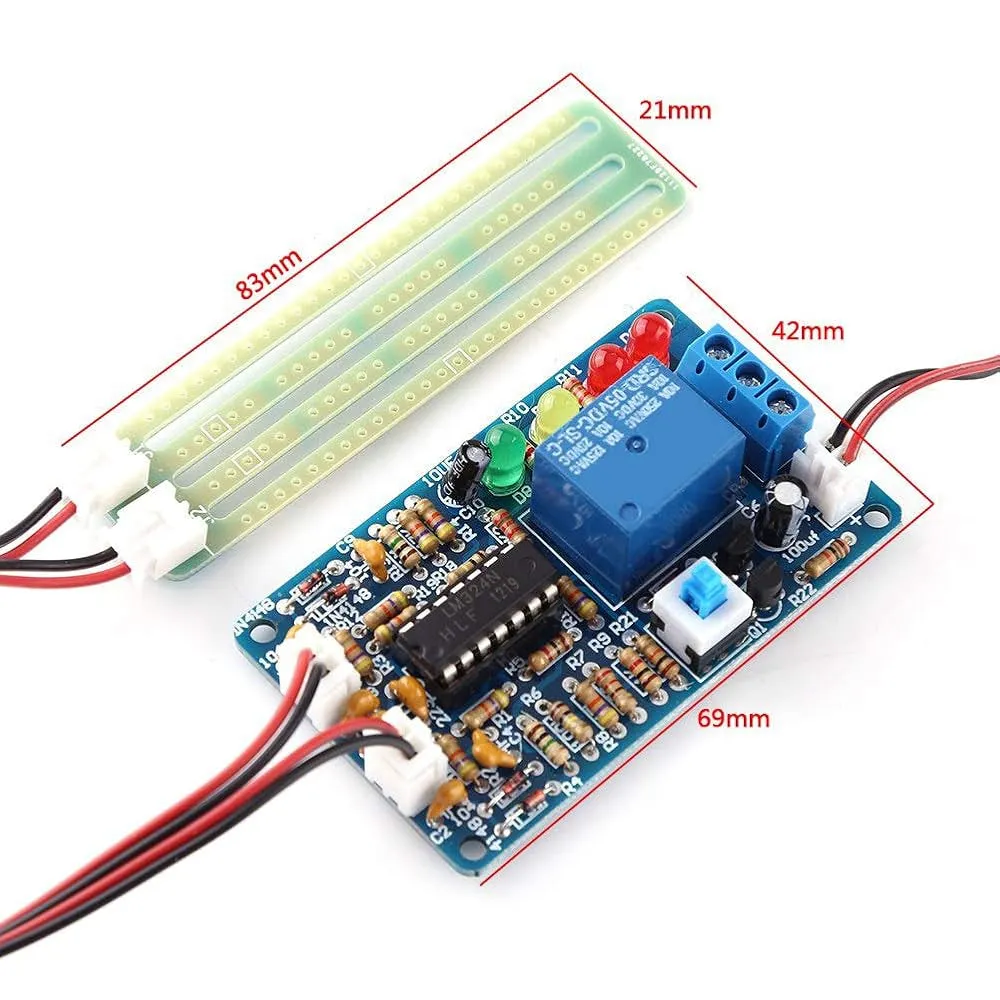

Controller Size: 42mm x 69mm
Sensor Size: 83mm x 21mm
Weight: 41g

Features

Operating Voltage: 5V
Compatible with Arduino
Accurate water level detection
Relay for automatic control of water pumps
Easy to install and use
Ideal for drainage or water control systems
Sensor board and controller with compact design
LED indicators for water level status

Applications :

Accurate Liquid Detection: Detects the liquid level in tanks, reservoirs, or pipes, ensuring proper fluid management.
Automatic Control: Can automatically trigger actions like turning on/off a pump, alarm, or valve when the water level crosses a set threshold.
Versatile Compatibility: Works with various liquids, including water, oils, and chemicals.
Simple Integration: Easy to integrate into projects or systems with minimal setup.
Digital and Analog Output: Some modules offer both digital signals (on/off) and analog signals (continuous level readings).
Low Power Consumption: Designed for energy efficiency, ideal for continuous use in monitoring applications.
Corrosion-Resistant: Often made from materials that withstand corrosion when in contact with water or chemicals.
