Product Details
＋

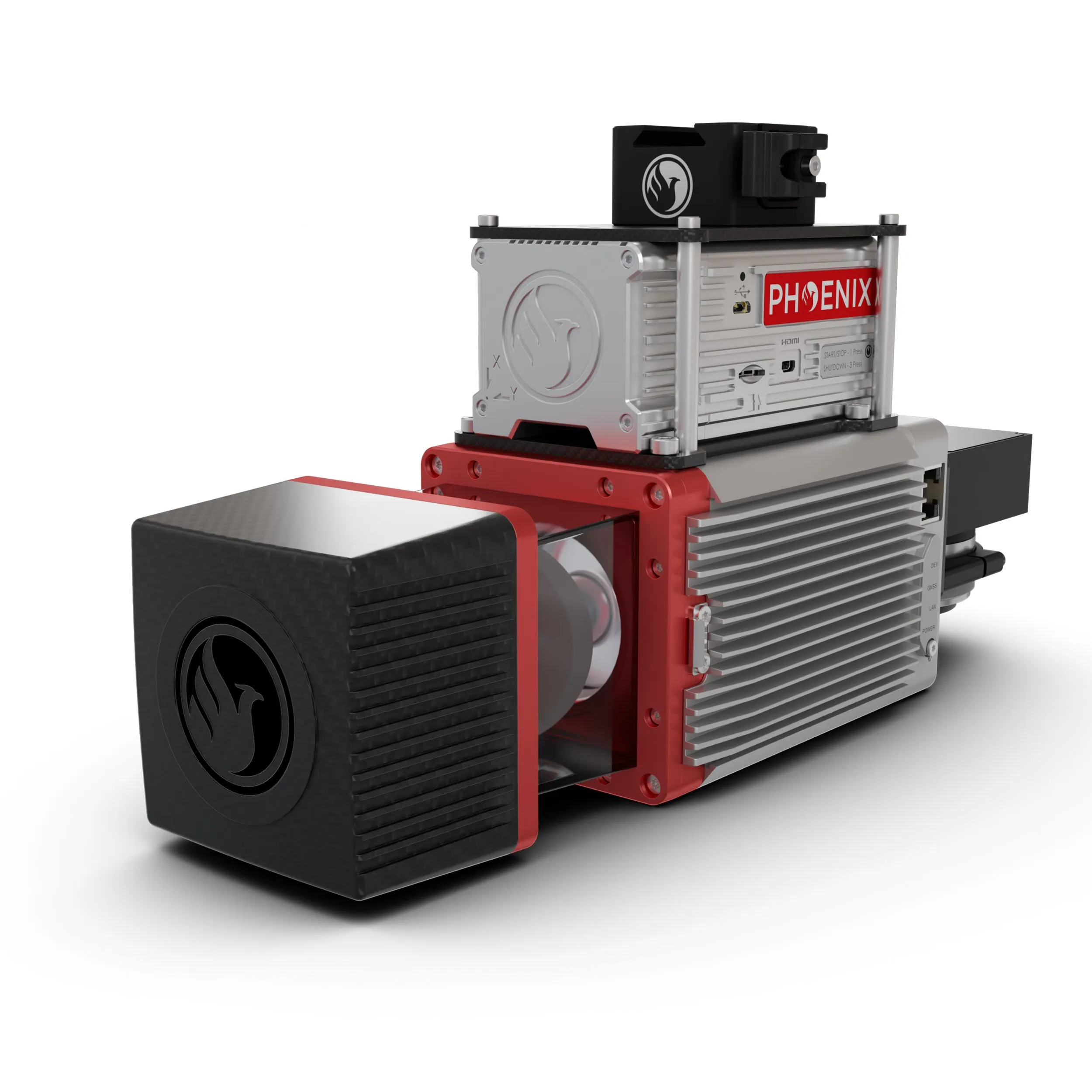

The MiniRANGER-3 LITE is designed to provide survey-grade LiDAR data and imagery (optional) on an ultra-lightweight platform. Packed with options, the MiniRANGER-3 LITE leverages Phoenix’s years of experience and industry-leading LiDARMill software platform to provide a seamless user experience.
Optional mobile and backpack mounting options along with several imaging sensors provide the flexibility required to address every application. With the photogrammetry package, operators of mid-size multirotors can now simultaneously acquire survey-grade LiDAR data and high resolution 61 MP RTK photogrammetry at up to 100 m operating flight altitude.
Features:
- 100 kHz, 200 kHz, and 300 kHz laser pulse repetition rate (PRR) for greater point density at altitude

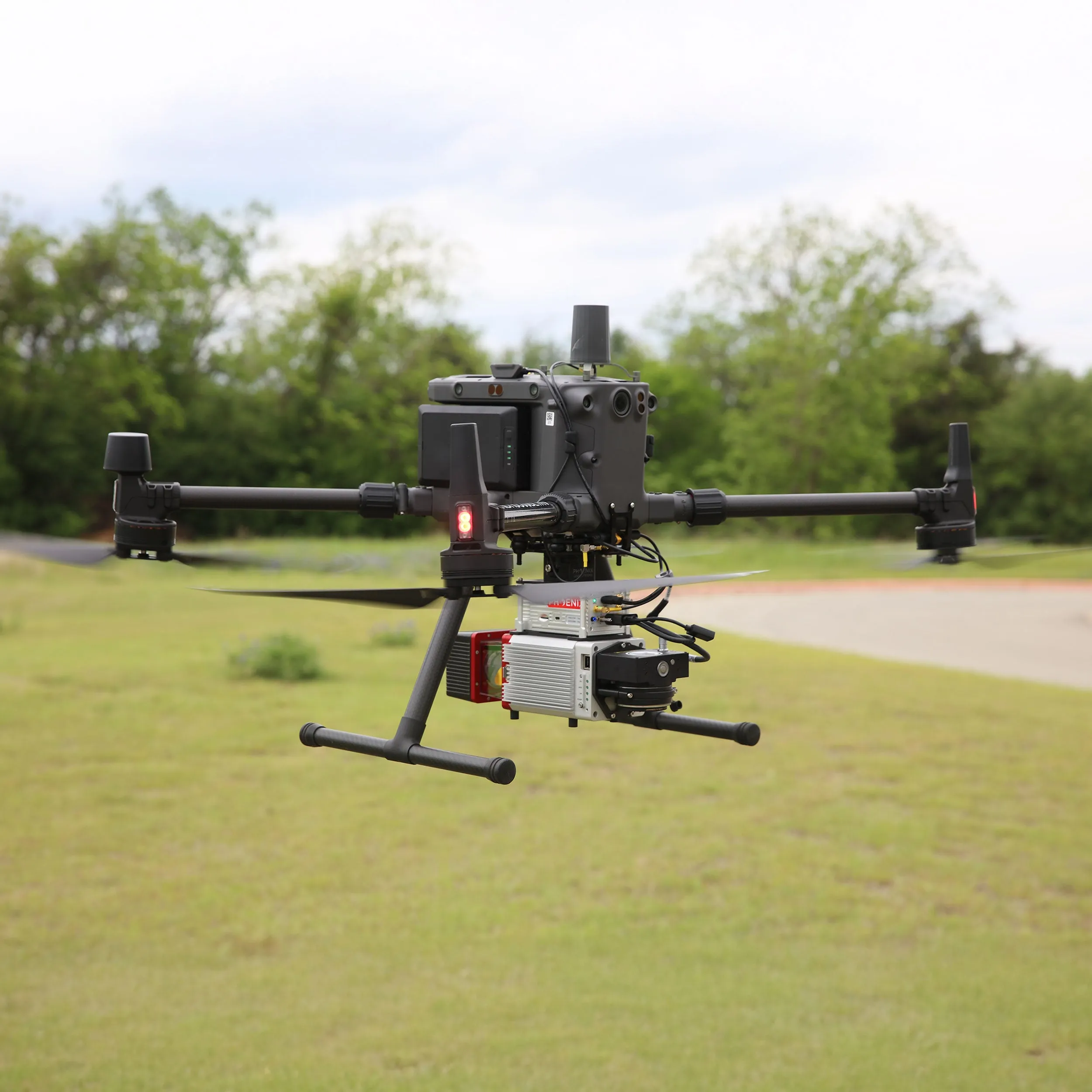

- Flexible mounting to UAV such as the IF800 and M350 with a custom vibration isolator mounts
- Includes the new weight optimized Air NavBox for increased range & flexibility
- Camera options ranging from dual-oblique to high resolution 61 MP
Accessories & Options
Drone Kits | Backpack | Vehicle Mount |
Dimensions
Maximum Measurement Range vs. Point Density
miniRanger-3 LITE Camera Options
Specs
Phoenix Recon-XT LiDAR Payload
Platform
| Dimensions | Without A6K-Lite: 240 x 130 x 180 mm With A6K-Lite: 300 x 130 x 180 mm |
| Operating Voltage | 14 - 28 VDC |
| Power Consumption | Without A6K-Lite: 30 W (typical) With A6K-Lite: 38 W (typical) |
| Weight with A4K-Lite Camera | 2.5 kg |
LiDAR Sensor
| Laser Properties | 905 nm Class 1 (eye safe) |
| Range Min | 2 m |
| Max Effective Measurement Rate | Up to 300,000 meas./sec |
| Accuracy | 15 mm |
| Max Mesuring Range ρ 20% (ρ 60%) | 170 m (290 m) |
| Sensor Classification | IP64 |
| Weight | 1.55 kg |
| Power Consumption | 18 W |
Navigation System
| Constellation Support | GPS GLONASS BEIDOU GALILEO |
| Support Alignment | Kinematic, Dual-Antenna |
| Accuracy Position | 1 cm 1 ppm RMS horizontal |
| IMU Gyro In-Run Bias Stability | 1.0°/hr to 0.5°/hr options |
