Product Details
＋
Product Overview
- Adds concealed deadbolt security to most wood or hollow metal doors, with the added convenience of electrical operation.
- Fail-safe operation (unlocks if power is lost).
- Status sensor (Door open/close monitor): SPDT, 500mA@12VDC(NO/NC/COM).
- Adjustable door lock delay timer (0, 2.5, 5, or 9 sec).
- Control wire allows release without cutting unit's power.
- Magnetic switch determines door position for positive locking.
- Solenoid attempts to lock several times and then shuts off if door not closed properly to prevent burning out.
- Use with an optional digital keypad for high security without a key.
- Easily connects to SECO-LARM's Electronic Keypads.
- Suitable for office-type applications.
- Shallow design for use with most metal door jambs.
- No limiting installation orientation.
- Powered by a solenoid.
- Stainless steel for strength and long life. Operatiing lifetime: 1,000,000 operations.
- Plastic material Tefulon Polymonochlorotrifluoethylene.
- Power 12/24 VDC (auto sensing), 900mA@12VDC / 440mA@24VDC on activation, 340mA@12VDC / 180mA@24VDC standby.
- Over-current protection 1.5A.
- Stainless steel bolt, 5/8" diameter, 5/8" throw.
- Lock body (faceplate) dimensions - 7-7/8"x1-5/16"(200x32 mm).
- Lock body (cavity) dimensions - 5-3/4"x1-1/8"x1-1/2"(145x28x38 mm).
- Strike plate dimensions - 3-9/16"x1"x1-1/8"(90x25x33 mm).
- Plug: Special conic cavity stainless steel (thickness 1.5mm~1.8mm).
General Information

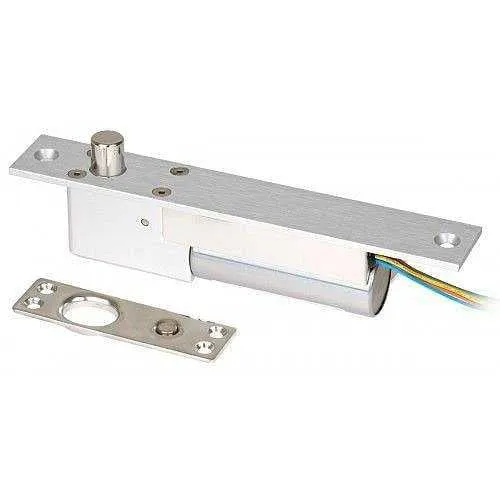

Name: SECO-LARM SD-997B-GBQ Electric Deadbolt, SECO-LARM U.S.A., Inc, Seco-Larm
Category: Seco-Larm, Access Control, Locking Devices, Deadbolts
UPC Code: 676544015383
Country of Origin: Taiwan. Country of origin is subject to change.
