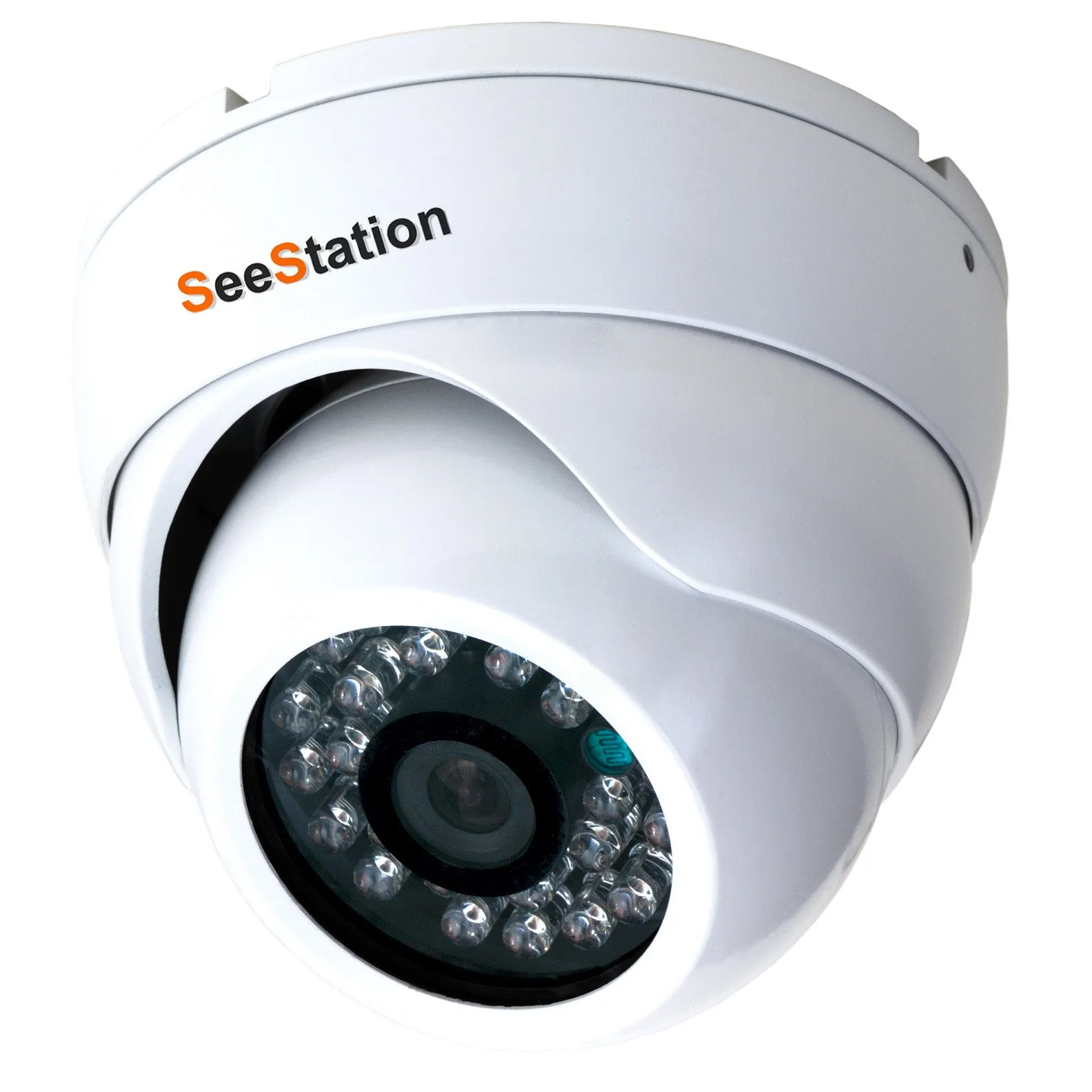

PN / CAHD2510AF1-AW *
High Definition 1MP / Operates Over Standard Coax
HD AHD 720P Digital Signal
1.0MP, long distance transfer range
3.6mm high definition lens
IR CUT filter
On Screen Display
Weather Resistant IP66
24PCS IR LEDs / 20M
Cable conceal inside bracket
DC12V
White Metal Casing
|
Model No. |
SS-CAHD2510AF1-AW |
|
Image Sensor |
1/4' HD CMOS |
|
TV System |
PAL/NTSC |
|
Total Pixels |
1.0 Mega Pixel |
|
Effective Pixels |
1280 (H) * 720 (V) |
|
Mini Illumination |
0Lux (IR On) |
|
S/N Ratio |
≥58dB |
|
Lens |
3.6MM |
|
Day & Night |
Auto(ICR) |
|
Backlight Compensation |
Auto |
|
Gain Control |
Auto |
|
White Balance |
Auto |
|
Electronic Shutter Speed |
1/50(1/60) ~ 1/100,000S |
|
IR LED |
24 PCS IR LED |
|
IR Distance |
20M |
|
Operation Temperature |
-10℃~ 60℃ |
|
Weather Proof Casing |
IP66 |
|
Power Supply |
DC12V |
|
Size |
94*69mm |
|
Weight |
0.4KG |
|
OEM Color |
White or New Gray |
TVI CVI AHD HD Analog 1080P
