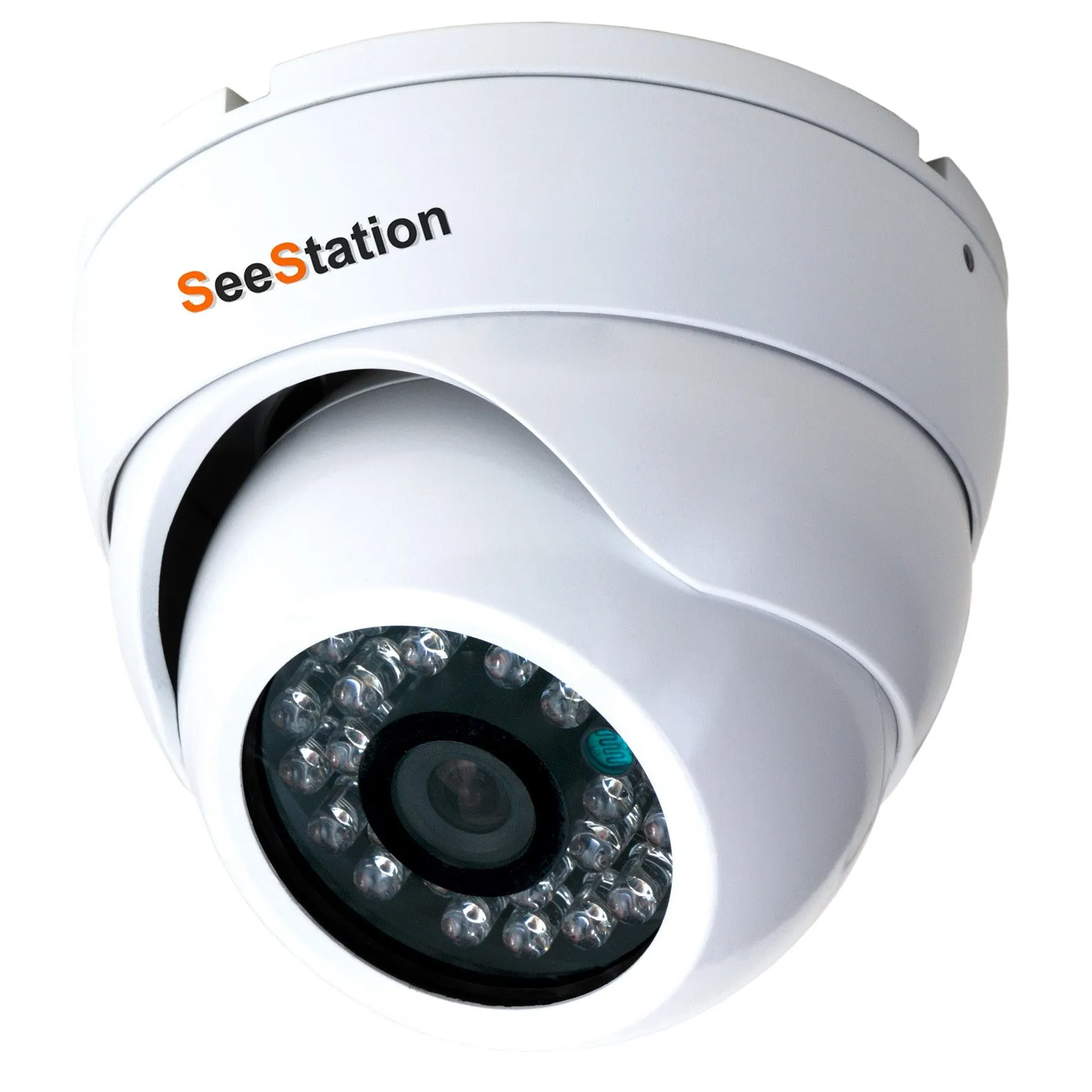

PN / SS-CAHD2510AF2-AW *
High Definition 2MP / Operates Over Standard Coax
1/3" CMOS HD AHD (IMX 222) NVP2441H
1080P, Analog High Definition Digital Signal
2.0MP long distance transfer range
3.6mm Auto Iris Lens
IR CUT filter
On Screen Display
Weather Resistant IP66
24PCS IR LEDs / 20M
Cable conceal inside bracket
DC12V
White Metal Casing
|
Model No. |
SS-CAHD2510AF2-AW |
|
Image Sensor |
1/3" Sony “Exmor” CMOS |
|
TV System |
PAL/NTSC |
|
Total Pixels |
1.3 Mega Pixel |
|
Effective Pixels |
1280 (H) * 960 (V) |
|
Mini Illumination |
0Lux (IR On) |
|
S/N Ratio |
≥58dB |
|
Lens |
3.6MM |
|
Day & Night |
Auto(ICR) |
|
Backlight Compensation |
Auto |
|
Gain Control |
Auto |
|
White Balance |
Auto |
|
Electronic Shutter Speed |
1/50(1/60) ~ 1/100,000S |
|
IR LED |
24 PCS IR LED |
|
IR Distance |
20M |
|
Operation Temperature |
-10℃~ 60℃ |
|
Weather Proof Casing |
IP66 |
|
Power Supply |
DC12V |
|
Size |
94*69mm |
|
Weight |
0.4KG |
|
OEM Color |
White or New Gray |
TVI CVI AHD HD Analog 1080P
