Name: Stand Alone Access Controller - HID Prox Card Reader & Keypad Controller - Single or Double Doors - Waterproof IP68
SKU: 809645

Product Details ＋

DAC-KP002

The Stand Alone Access Controller - HID Prox Card Reader & Keypad Controller is made with 2 relays for controlling up to to 2 doors It is suitable for mounting either indoor or outdoor environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy with an internal tamper alarm. This outdoor / indoor waterprooof keypad is built with ease of installation and ease of use in mind. Using a HID proximity card or pin code or a combination of both for access. Fully programmable for up to 2000 users. It can control the Lock , a Security Alarm, Door Bell Alarm, and also can connect with Exit Buttons and Door Contacts.

There are 7 working modes:

Wiegand Reader.
Standalone for single door.
Standalone for two doors.
With external reader for two doors.

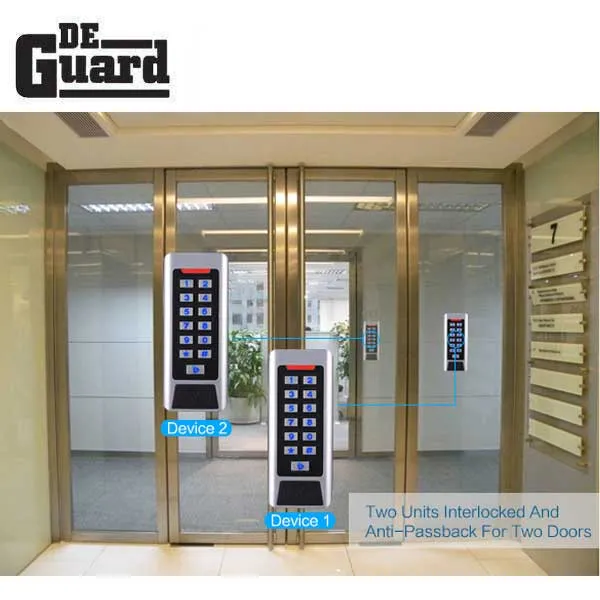

Two units interlocked for two doors.
Anti-passback for single door.
Anti-passback for two door.
One Master code
HID Prox Cards may be purchased seperately

Specifications:

Application	Outdoor / Indoor
Input Voltage	AC/DC 12V
User Capacity	2000 users Can be controlled by Prox Card, PIN Code or Combination of Prox Card and PIN
Programmable	Easily programmable at the lock
Tamper Alarm	Built in light dependent resistor (LDR) for anti tamper
Alarm	Built in buzzer
Keyboard	back-lit for night accessibility , the back light can be set to Normal ON, Normal OFF or Human-Approach ON.
Card Reading Distance	3-6 cm
Idle Current	<25mA
Lock Output Load	<1A
Alarm Output Load	<1A
Ring bell load	<1A
Card reading distance	40mm Max
Card Frequency:	125KHz for EM and HID (Not Included)
Card transmission format	26-37 bit wiegand
Keypad transmission format	4bit, 8bit and Virtual card number
Card type	EM and HID
Enclosure material	Strong Zinc Alloy Electroplated anti-vandal case
Operating Temperature	-49°~131° F ( -45°C～55° C)
Operating Humidity	10%～95% non-condensing
Environment	Conforms to IP68 Waterproof Standards
