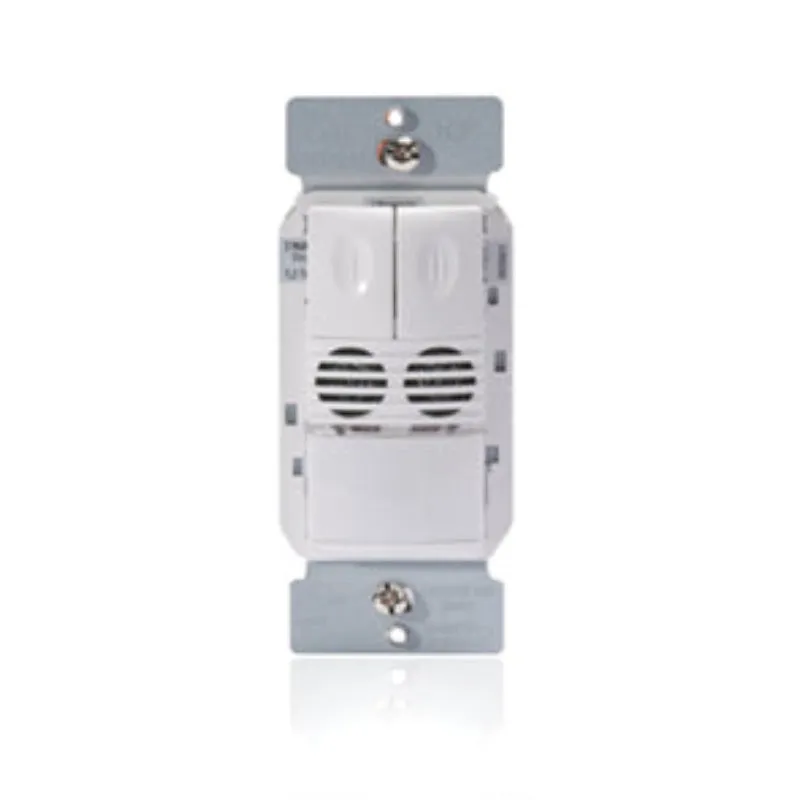

The DW-203 dual technology multi-way wall switch sensor combines the benefits of passive infrared (PIR) and ultrasonic technologies to turn lights ON and OFF based on occupancy. It has two relays for controlling two independent lighting loads or circuits and a variety of features.

Features

• Wallplate sold separately
• Finish: Ivory, Light Almond, White
• Voltage: 120/277 VAC
• Load Rating:
• 120 VAC: 0-800 W ballast or tungsten,1/6 hp
• 277 VAC: 0-1200 W ballast
• Sensor Type: Passive Infrared, Ultrasonic
• Mounting: Wall
• High sensitivity and dense coverage for exceptional performance
• Allows multi-way control from one of upto four control locations
• Color-matched lens and low profile for appealing design
• Two relays for controlling two independent lighting loads or circuits and a variety of features
• Defaults to manual-on operation for maximum energy savings
• Typical Applications: Private Office, Conference Room, Lunch/Break Room
