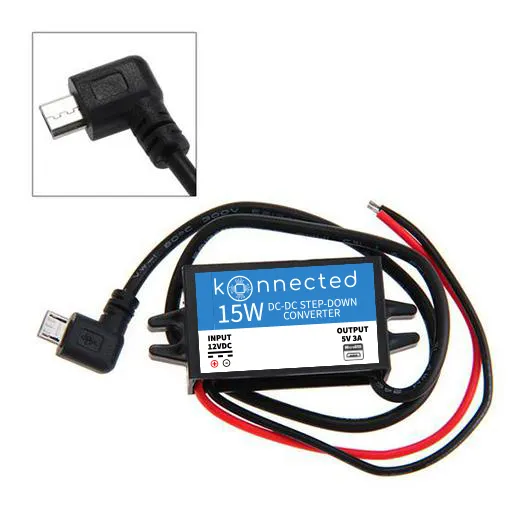

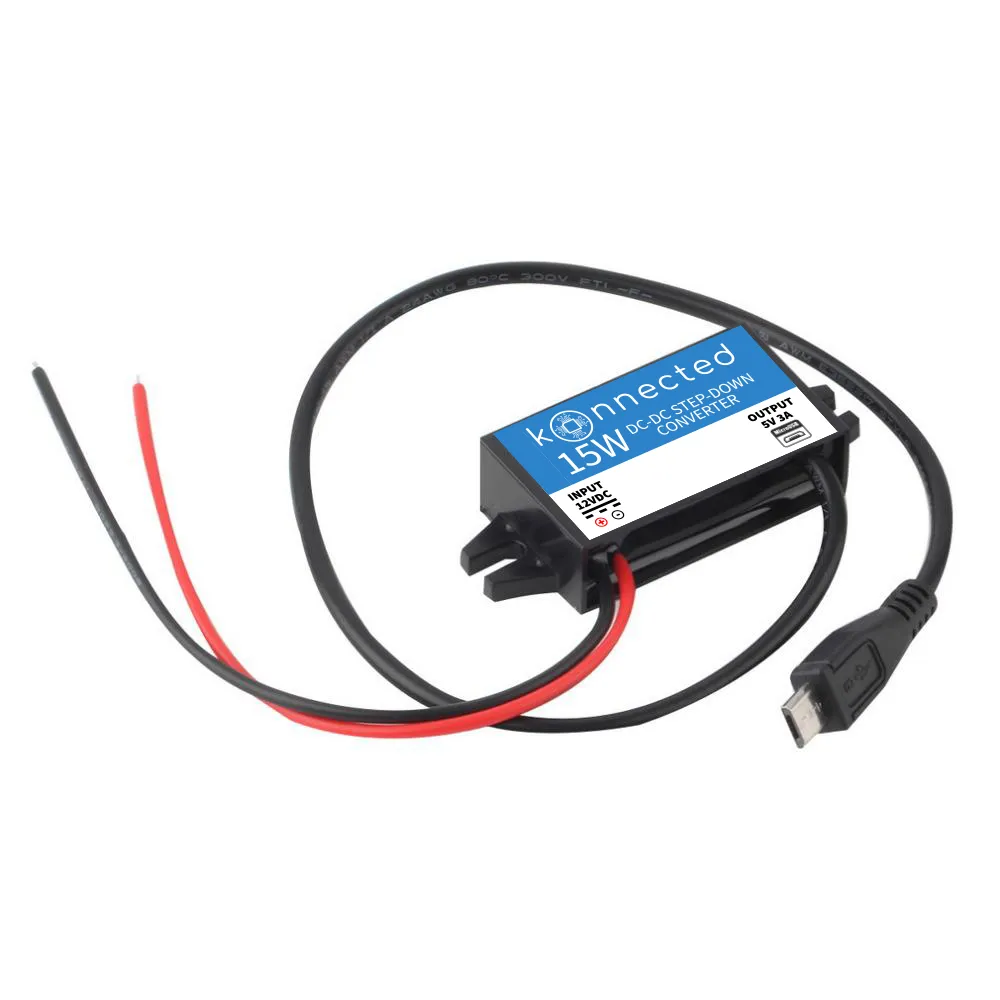

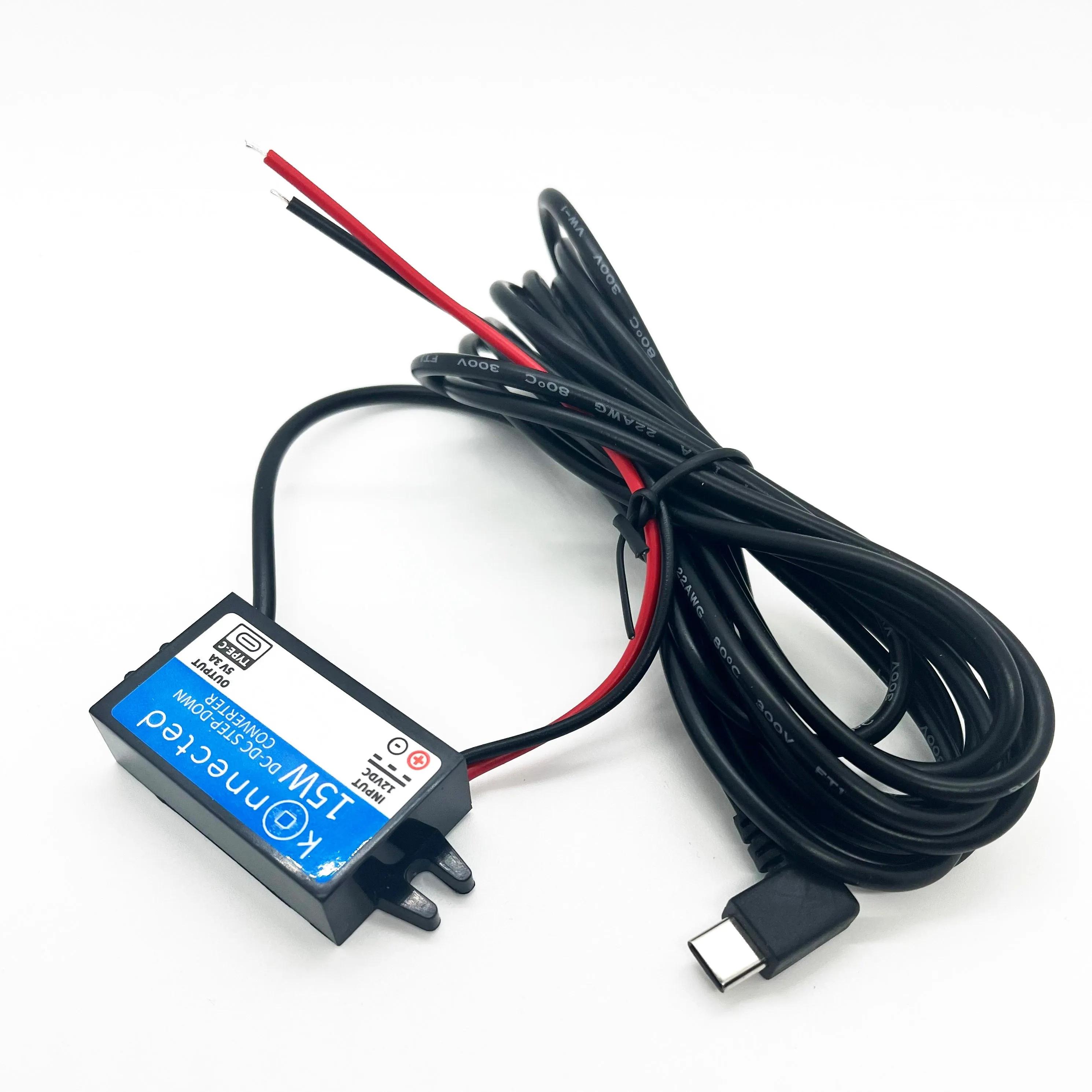

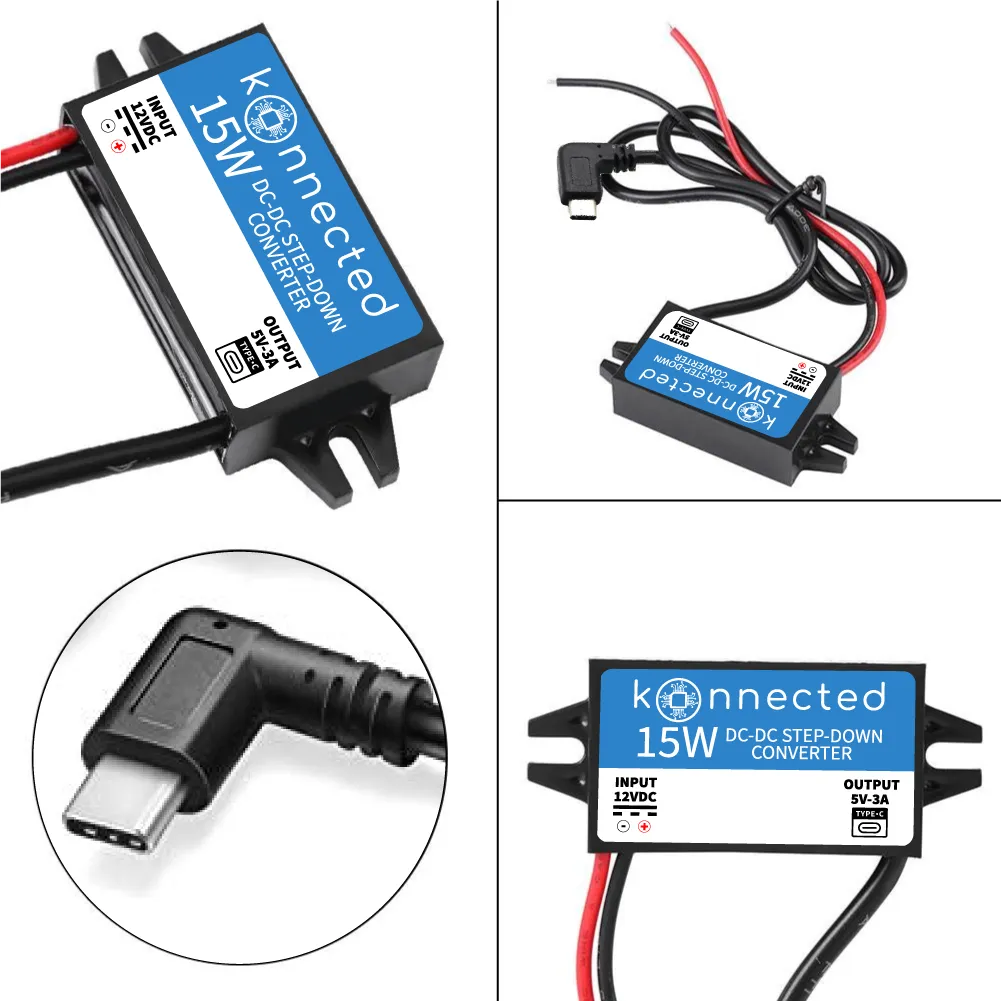

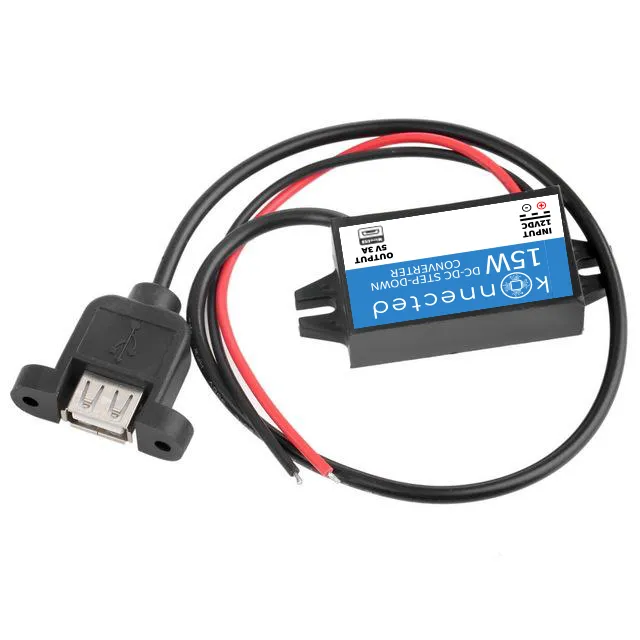

This device converts 12V DC power from your system into a 5V USB connection. Use it to install a tablet charger in place of your old keypads! There are 4 variations to choose from.

NOTE: This product comes in four different connector variations. Choose the desired connector from the drop-down above.

Specifications:

Recommended input voltage: 12V
Input voltage range: 8V - 23V DC
Output voltage: 5V DC
Output current: 3A max
Output power: 15W max
Conversion efficiency: >90%
Voltage regulation: ±1%
Load regulation: ±2%
Ripple (full load test): <100mV
No-load current: <15mA
Operating temperature: -25~65℃ [1]
Waterproof rating: IP68
Short-circuit protection: Yes
Overheat protection: Yes
Reverse Polarity Protection: Yes
Case Material: ABS Plastic
Product dimensions: 46mm x 27mm x 14mm
Input (red/black) cable length: ~12cm
Output (USB) cable length: ~35cm
Mounting hole pitch: 52mm
Product weight: 65g
Country of origin: China

[1] Output power is reduced when the ambient temperature exceeds 40℃
