ABH-0165

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• Handed - Specify LH or RH
• Foor doors without bottom pivot or using floor closer
• Maximum door load 300 pounds
• Maxium door width - 42"
• Heavy duty bearings
• Stainless steel base material
• Average weight per unit = 7 lbs
• Doors ranging from 60" to 90” tall have two intermediate pivots. An additional intermediate pivot should be used for each additional 30" in door height.

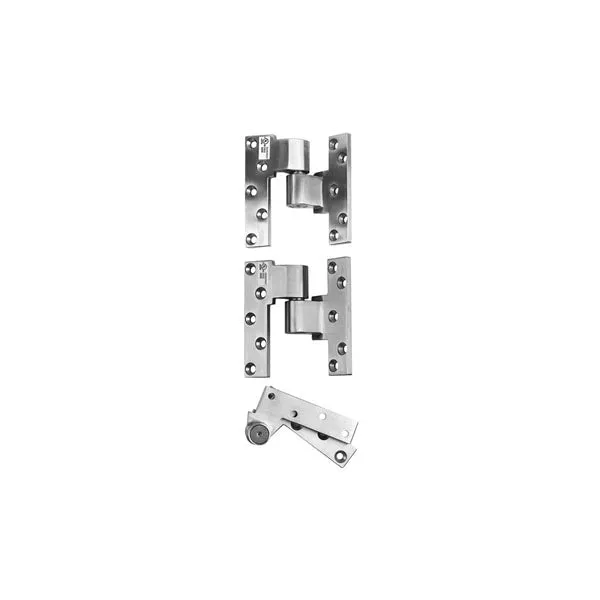

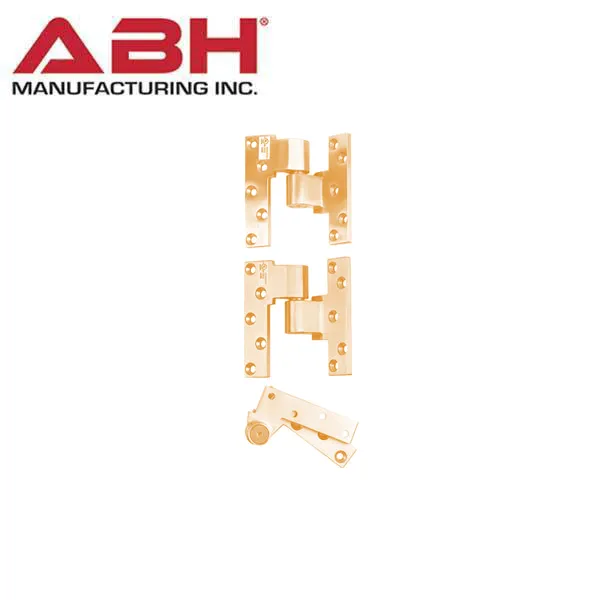

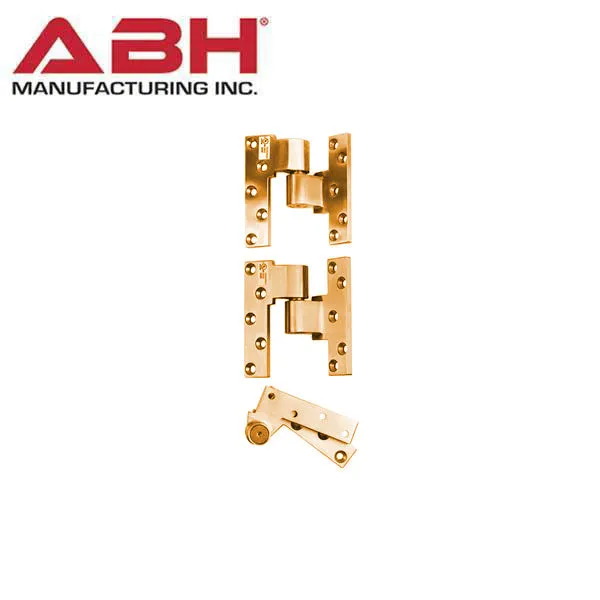

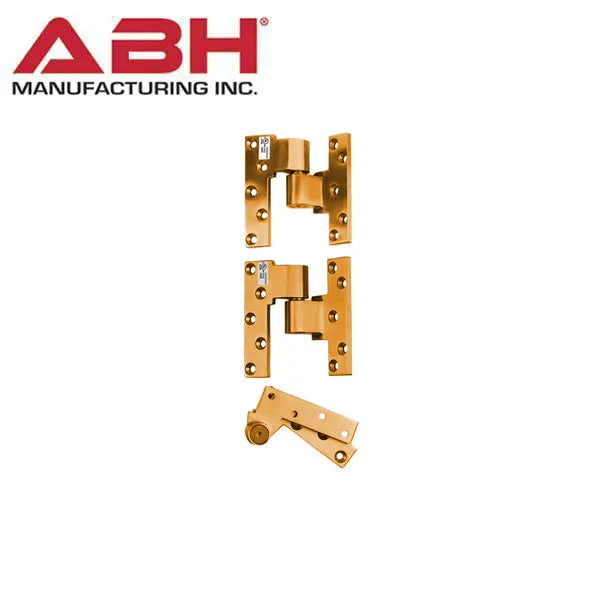

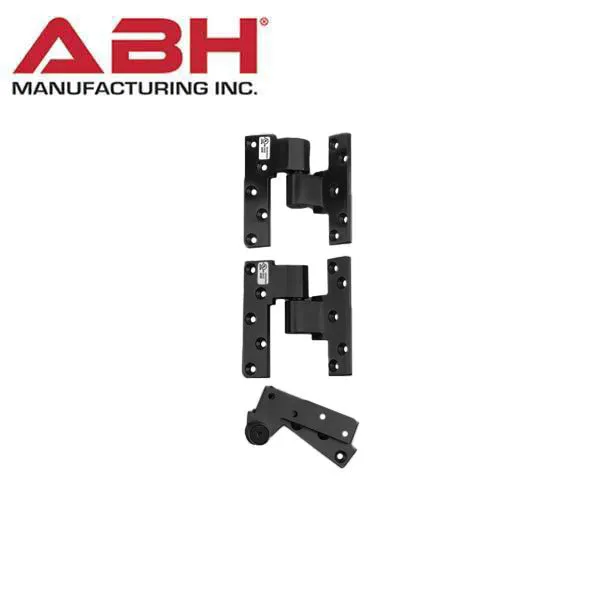

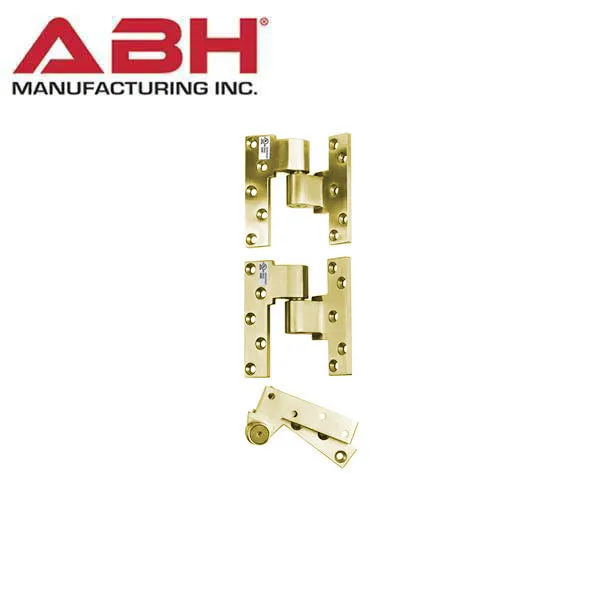

Includes:

• 0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• (2) 019 Intermediate Pivots
  • Bottom leaf mortises into side jamb
  • Door leaf mortises into side of door
