Product Description
-
Max 30fps@1080P
-
HD and SD output switchable
-
3.6mm fixed lens (2.8mm, 6mm optional)
-
Max. IR length 30m, Smart IR
-
IP67, DC12V
-
Functions
-
4 Signals over 1 Coaxial Cable
-
Long Distance Transmission
-
Simplicity
-
Smart IR
-
Multi-formats
-
Multi-language OSD
-
Protection
Product Specification
Brand |
Dahua |
||
Product Type |
Bullet Camera |
||
Series |
Lite Series |
||
Product Model |
DH-HAC-HFW1220SP |
||
Camera | |||
Image Sensor |
1/2.9" CMOS |
||
Effective Pixels |
1920(H)×1080(V), 2MP |
||
Scanning System |
Progressive |
||
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||
Minimum Illumination |
0.02Lux/F2.0, 30IRE, 0Lux IR on |
||
S/N Ratio |
More than 65dB |
||
Ir Distance |
Up to 30m (98feet) |
||
Ir On/Off Control |
Auto / Manual |
||
Ir Leds |
18 |
||
Lens | |||
Lens Type |
Fixed lens / Fixed iris |
||
Mount Type |
Board-in |
||
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
||
Max Aperture |
F2.0 |
||
Angle Of View |
H: 80.8° (106°/51°) |
||
Focus Control |
N/A |
||
Close Focus Distance |
800mm (500mm/1900mm) 31.5'' (19.7''/74.8'') |
||
Dori Distance | |||
Dori Definition |
Distance |
||
Detect |
25px/m (8px/ft) |
3.6mm: 57m(187ft) 2.8mm:45m(149ft) 6mm: 86m(281ft) |
|
Observe |
63px/m (19px/ft) |
3.6mm: 23m(75ft) 2.8mm:18m(59ft) 6mm:34m(113ft) |
|
Recognize |
125px/m (38px/ft) |
3.6mm: 11m(37ft) 2.8mm:9m(30ft) 6mm: 17m(56ft) |
|
Identify |
250ppm (76px/ft) |
3.6mm: 6m(19ft) 2.8mm:5m(15ft) 6mm: 9m(28ft) |
|
Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
||
Video | |||
Resolution |
1080P (1920×1080) |
||
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
||
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
||
Day/Night |
Auto (ICR) / Manual |
||
Osd Menu |
Multi-language |
||

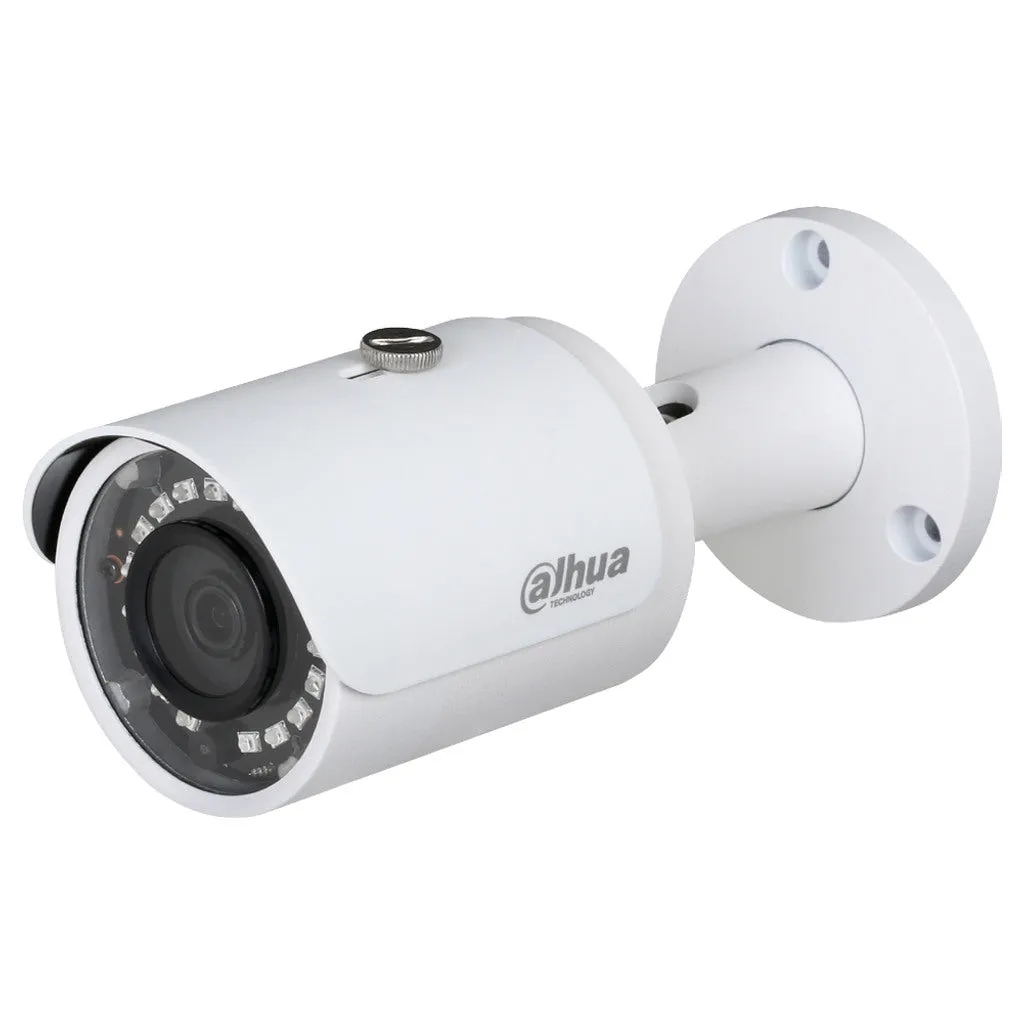

Dahua Lite Series HDCVI IR Bulllet Camera 2MP DH-HAC-HFW1220SP$ 64.61 $ 49.70 Please select combo product attributes
The combo subtotal is $,SAVE$
