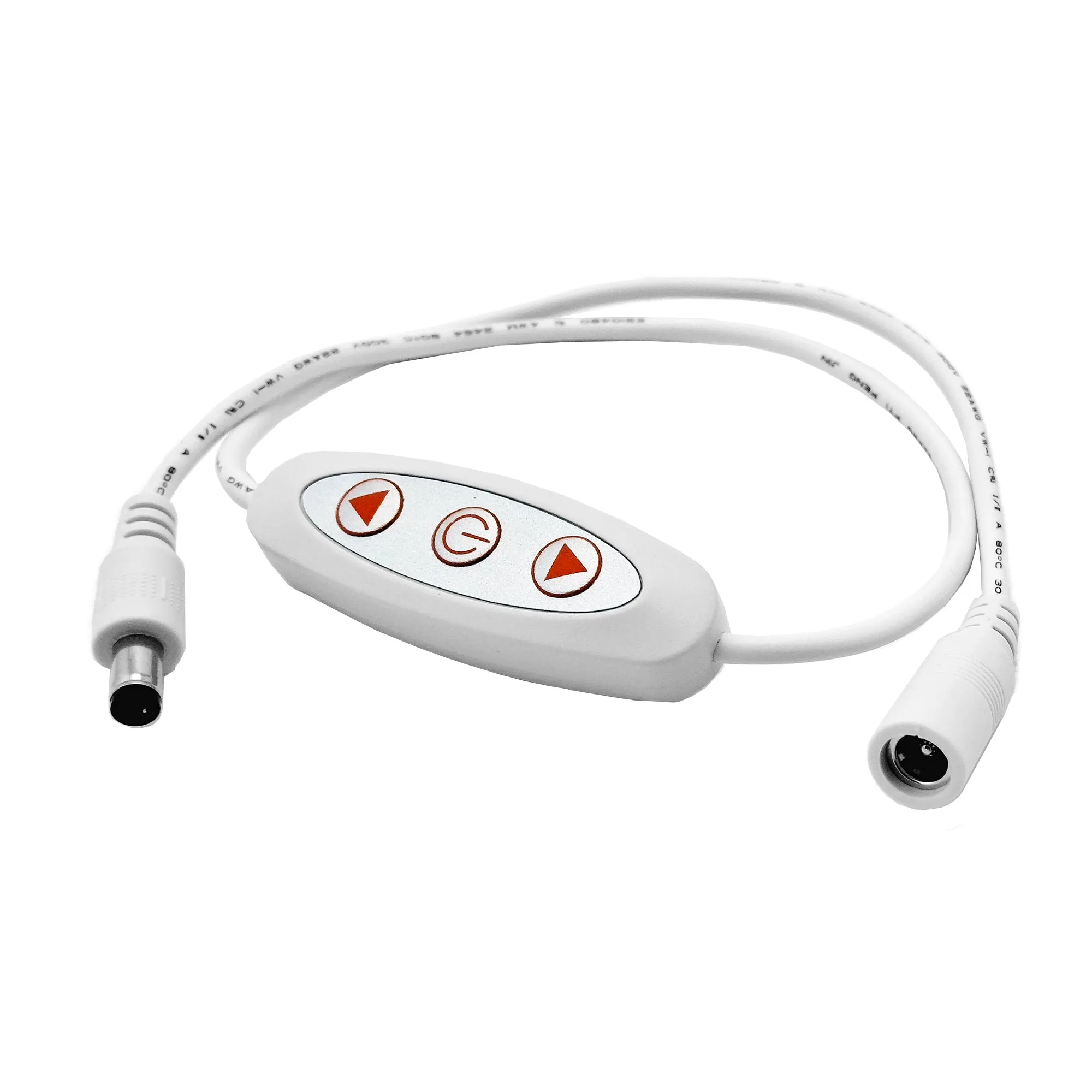

A simple intuitive dimmer with on/off and dim functions.  This small dimmer is designed to fit into the smallest places and works with any 12V or 24V constant voltage LEDs. Operating at 32khz it provides flicker-free operation to the eye as well as under most camera settings.

TECHNICAL SPECIFICATIONS

• ON / OFF and dimming function.

• Input Voltage: 12V-24VDC.

• Output Voltage: 12V-24VDC.

• Input Current: 2A

• Maximum Load 24W for 12V, or 48W for 24V.

• Input and output cable length: DC wire 25cm.

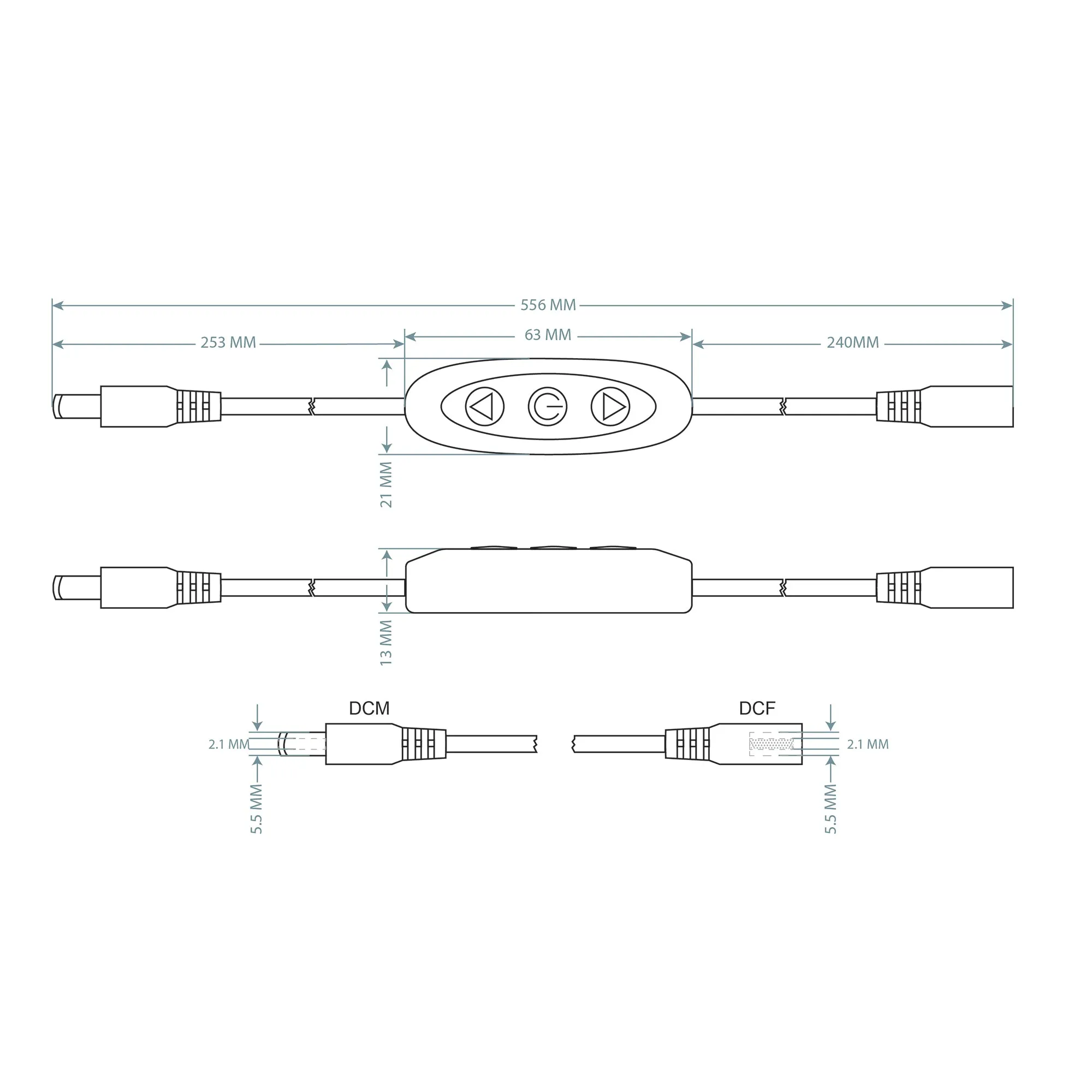

• Dimensions 63MM L X 21MM W X 13MM H
