Product Details

Designed to thermomechanically remove coatings from optical fibers with cladding, this thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:

  • Heater is adjustable up to 200°C, far hotter than any competing product
  • Has the ability to remove some fluoroacrylate undercoatings using high temperature
  • Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
  • Supports optical fibers with cladding diameter of 125 µm, with buffer diameters from 250 µm to 900 µm, including 250 µm, 400 µm, and 900 µm coated fibers
  • Compact and low-maintenance benchtop design makes this easy and convenient to use
  • Compatible with Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)
  • Includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Specifications


Blade Type

Fixed

Supported Fiber Buffers

250 µm-900 µm

Supported Fiber Types

125 µm cladding

Adjustable Temperature Range

60°C-200°C, or ambient

Adjustable Heat Time Range

0-30 seconds (2 second increments)

External Power Supply

100-240 VAC, 47-63 Hz

Dimensions

5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)

UPC # 811490011236

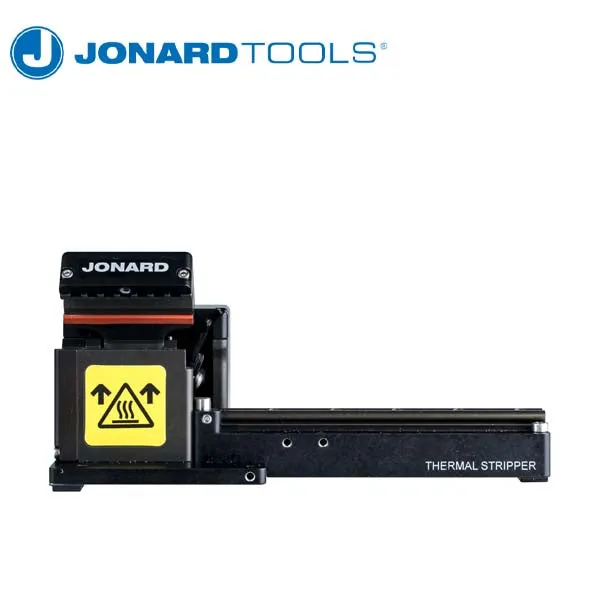

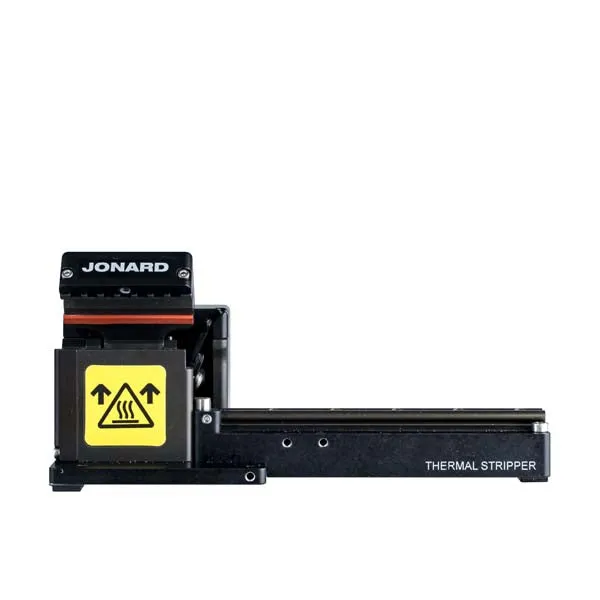

Jonard Tools - Thermal Stripper - Fixed Blade
  • DefaultTitle

$ 70.19

$ 53.99
