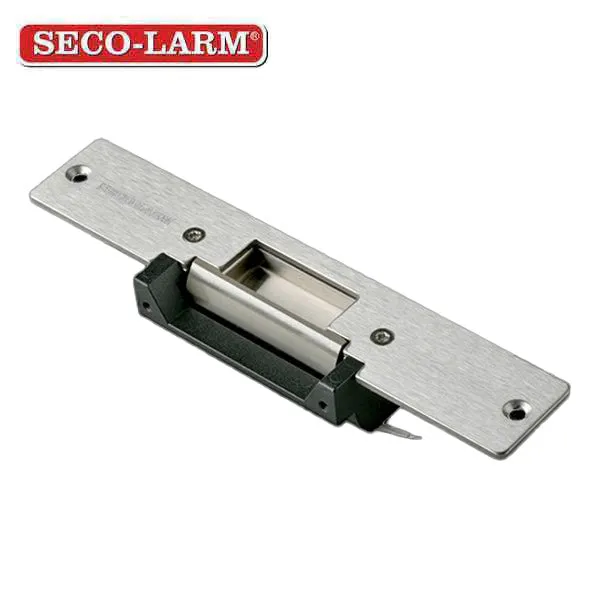

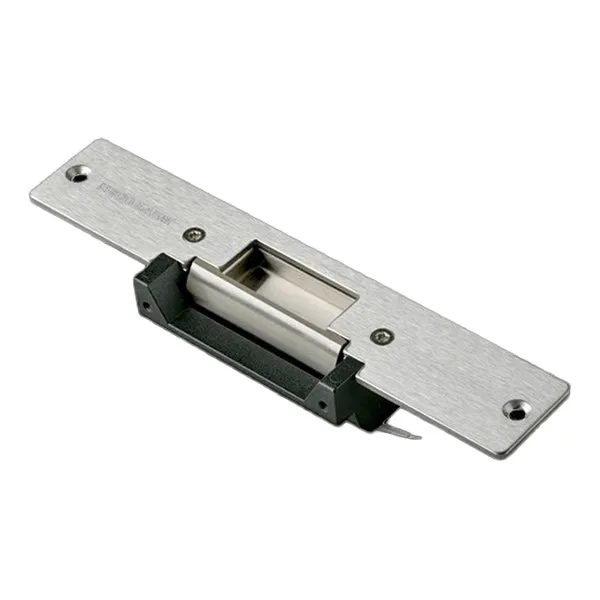

The SECO-LARM® Electric Door Strike can be used to convert cylindrical lock sets into an electronic access controlled locking system. Combine with an optional SECO-LARM® digital keypad for keyless high security.

• UL 294 and UL 1034 Listed

• Field-programmable in just seconds for fail-secure or fail-safe applications

• The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
• Can be used on virtually any cylindrical door locking system

• Use of an optional digital keypad with the unit assures high security without the need for a key

• Easily connects to SECO-LARM’s Electronic Keypads

• Suitable for office-type applications

• 715/16“x17/16” x11/4” (202x36x32 mm)

• Symmetrical-sized. Reversible for right-hand or left-hand doors

• Shallow design for use with most wood doors

• Powered by a solenoid, not a buzzer coil

• Static strength – 1,000-lbs. (454kg)

• Stainless steel lip (keeper) for strength and long life

• Non-polarized connection. Wires can be reversed

• Current draw 280mA@12VDC

• Tested to 1 million cycles

• CE approved
